Product description

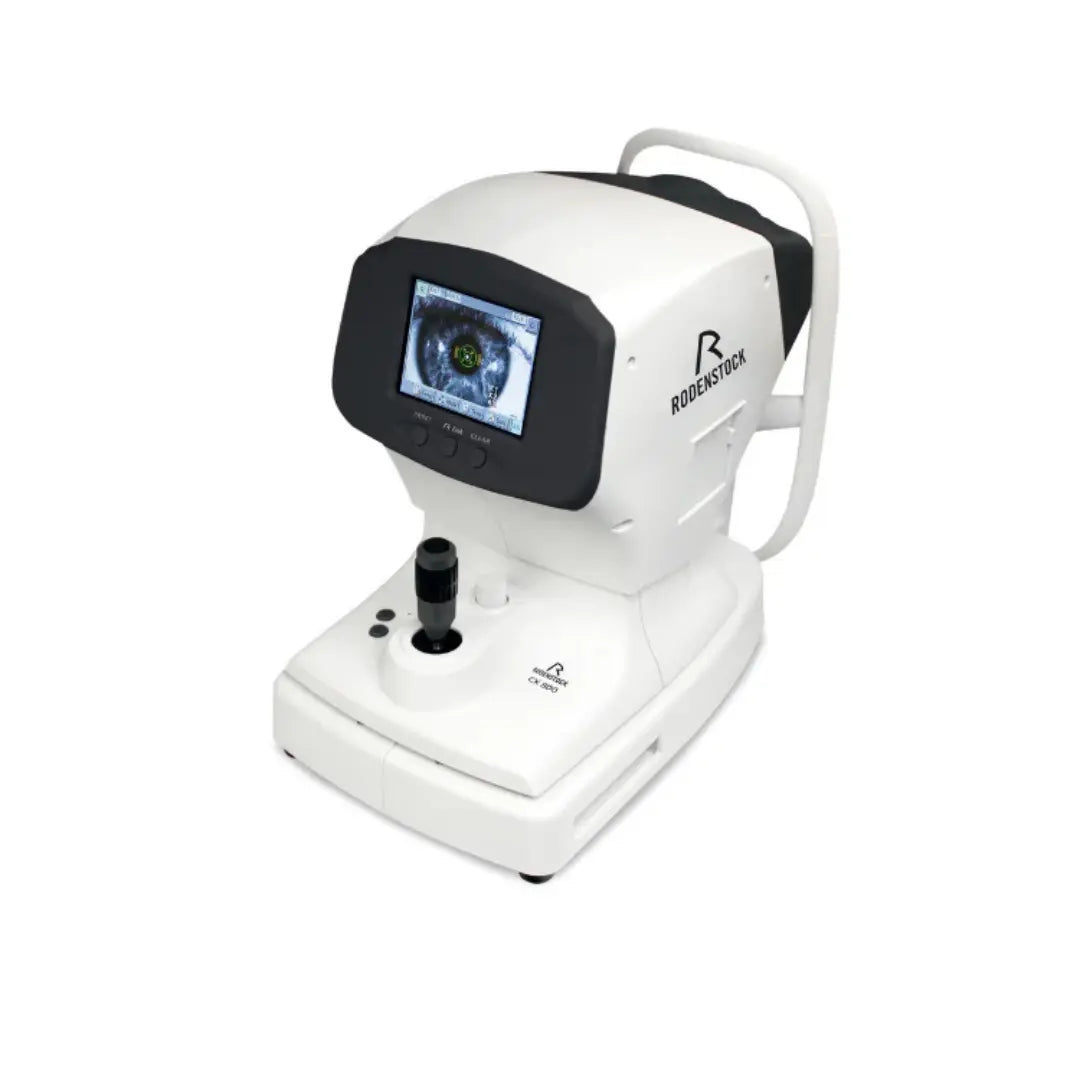

Rodenstock CX 800 – Autorefractor-Keratometer
Plug & Touch. Fast. Accurate. Affordable.
The CX 800 delivers quick, dependable objective refraction and keratometry in a compact, budget-friendly unit. With automatic measurement, a bright color touch screen, and simple joystick handling, it captures reliable data in seconds while keeping patients comfortable. A great choice for practices that want speed, accuracy, and ease of use without the learning curve.
Key Features

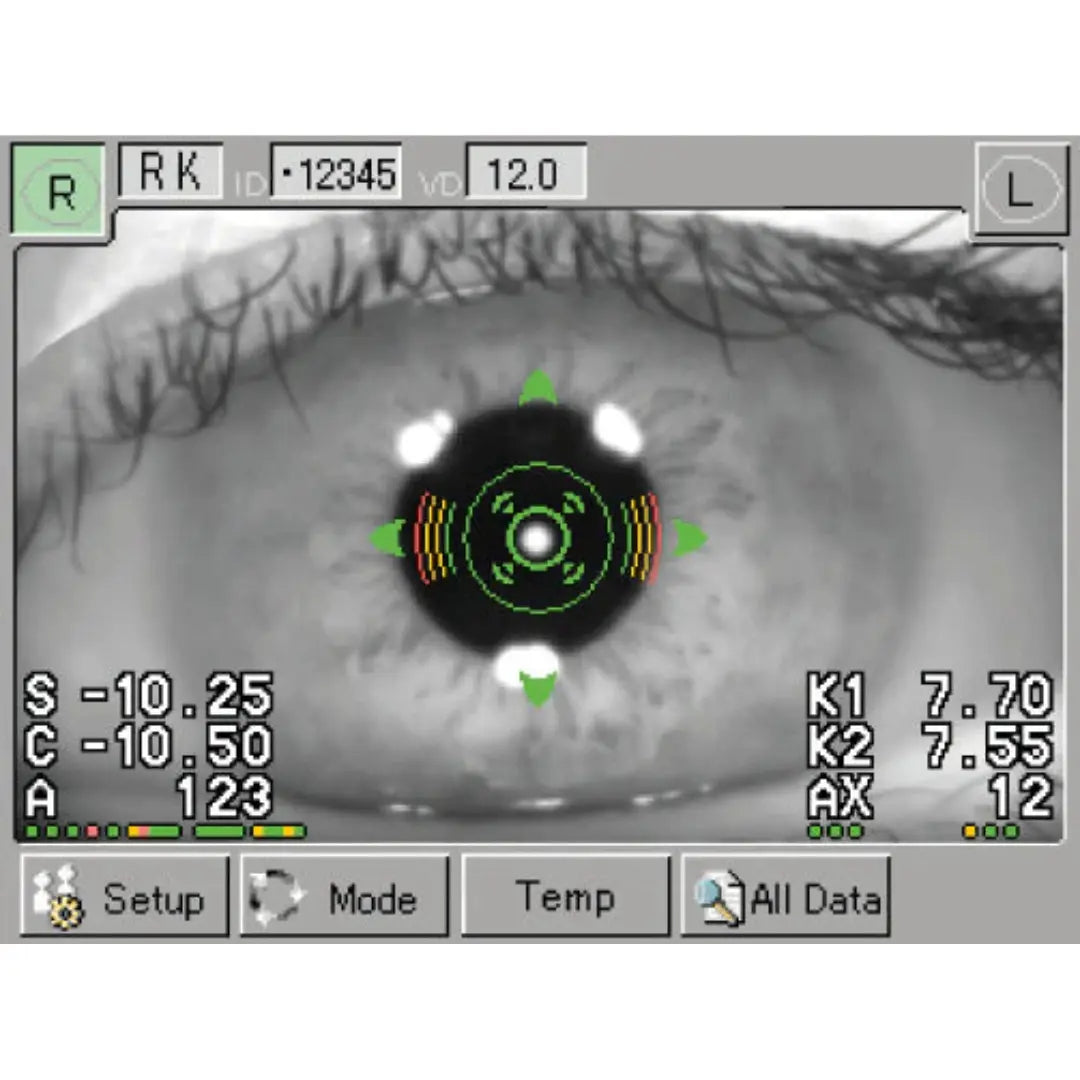

Auto measurement
- Align to the eye and the instrument completes the reading automatically.
- Clear on-screen prompts help you move swiftly to the fellow eye.
5.7″ color touch screen
- Operate the device and view all measured values on a crisp display.
- All commands can be made via touch for an intuitive workflow.

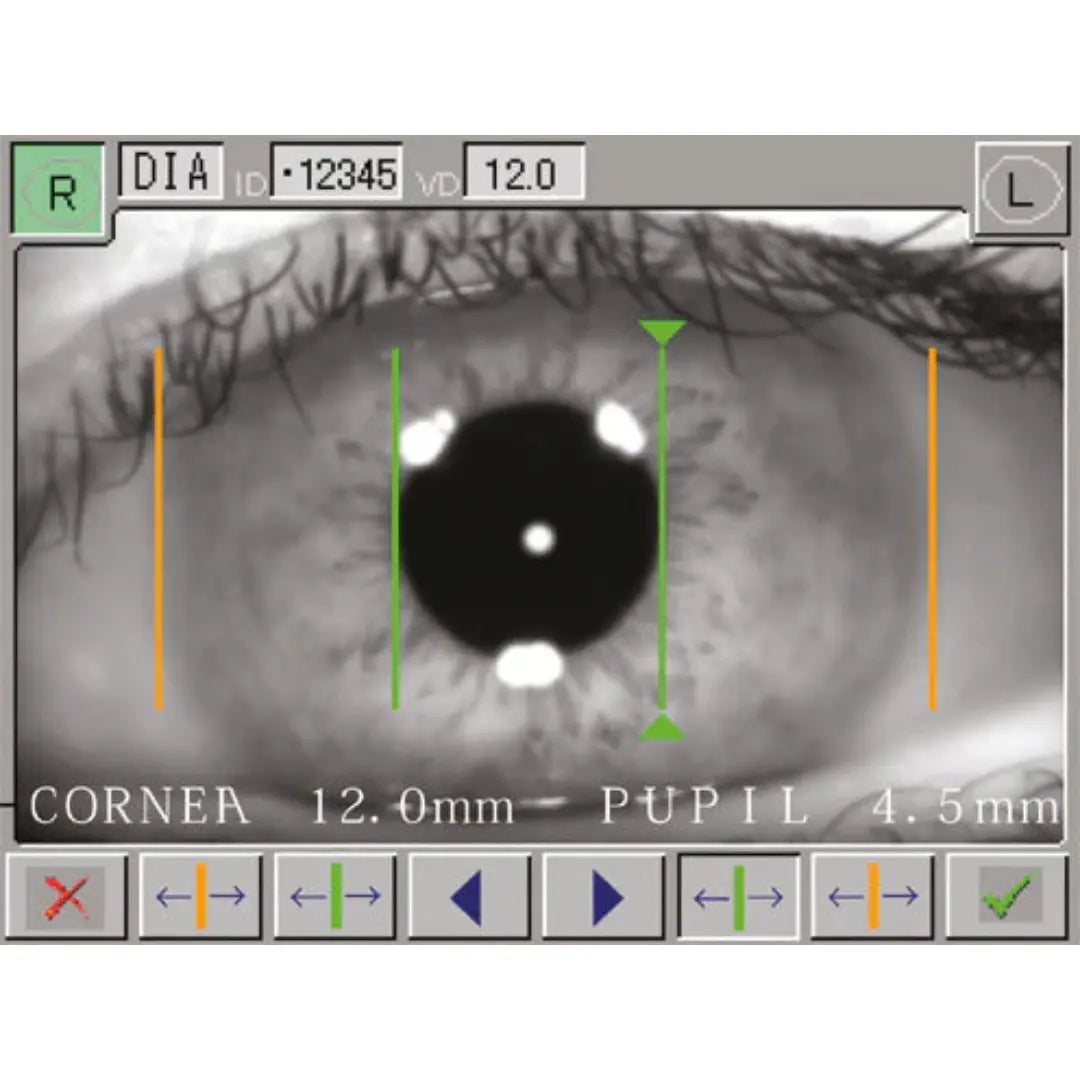

Pupil & cornea diameter
- Set and store pupil and corneal diameter bars to individual sizes.
- Values are saved, displayed, and printable for clean documentation.
Central K-values
- Central (Ø 3 mm) keratometer readings acquired within a second.
- Measure on the cornea or the back surface of an RGP contact lens.
Simple, professional handling
- Joystick + touch control make alignment fast, precise, and repeatable.
- High accuracy with very short examination time.
Specifications
| REFRACTIVE POWER MEASUREMENT | |
| Spherical refractive power (S) | −25.00 D to +22.00 D (VD = 12.0 mm) |
| Display unit (S) | 0.01 D / 0.12 D / 0.25 D |
| Cylindrical refractive power (C) | 0 D to ±10.00 D (VD = 12.0 mm) |
| Display unit (C) | 0.01 D / 0.12 D / 0.25 D |
| Astigmatism axis (A) | 0° to 180° (1° steps) |
| CORNEAL / KERATOMETRY | |
| Corneal curvature (K1, K2, AVG) | 5.00 mm to 11.00 mm / 30.68 D to 67.50 D (n = 1.3375) |
| Display unit | 0.01 mm |
| Corneal astigmatism (C) | 0 D to 10 D (n = 1.3375) |
| Axis range (A) | 0° to 180° |
| Measurement area (cornea) | Ø 3.0 mm (at 8.00 mm corneal curvature) |
| PD, PUPIL & VERTEX | |
| PD range | 50 mm to 86 mm |
| Minimum pupil diameter | Ø 2.0 mm |
| Vertex distance | 0 mm – 16.0 mm |
| MAIN UNIT & I/O | |
| Built-in printer | Thermal printer |
| Output | RS-232C |
| Display | 5.7″ color LCD |
| Chin rest | Electronically controlled |
| DIMENSIONS & ELECTRICAL | |
| Dimensions (W × D × H) | 297 × 500 × 448 mm |
| Weight | Approx. 17.0 kg |
| Voltage | 100 VAC to 240 VAC |
| Frequency | 50/60 Hz |
| Power consumption | 80 VA to 100 VA |
