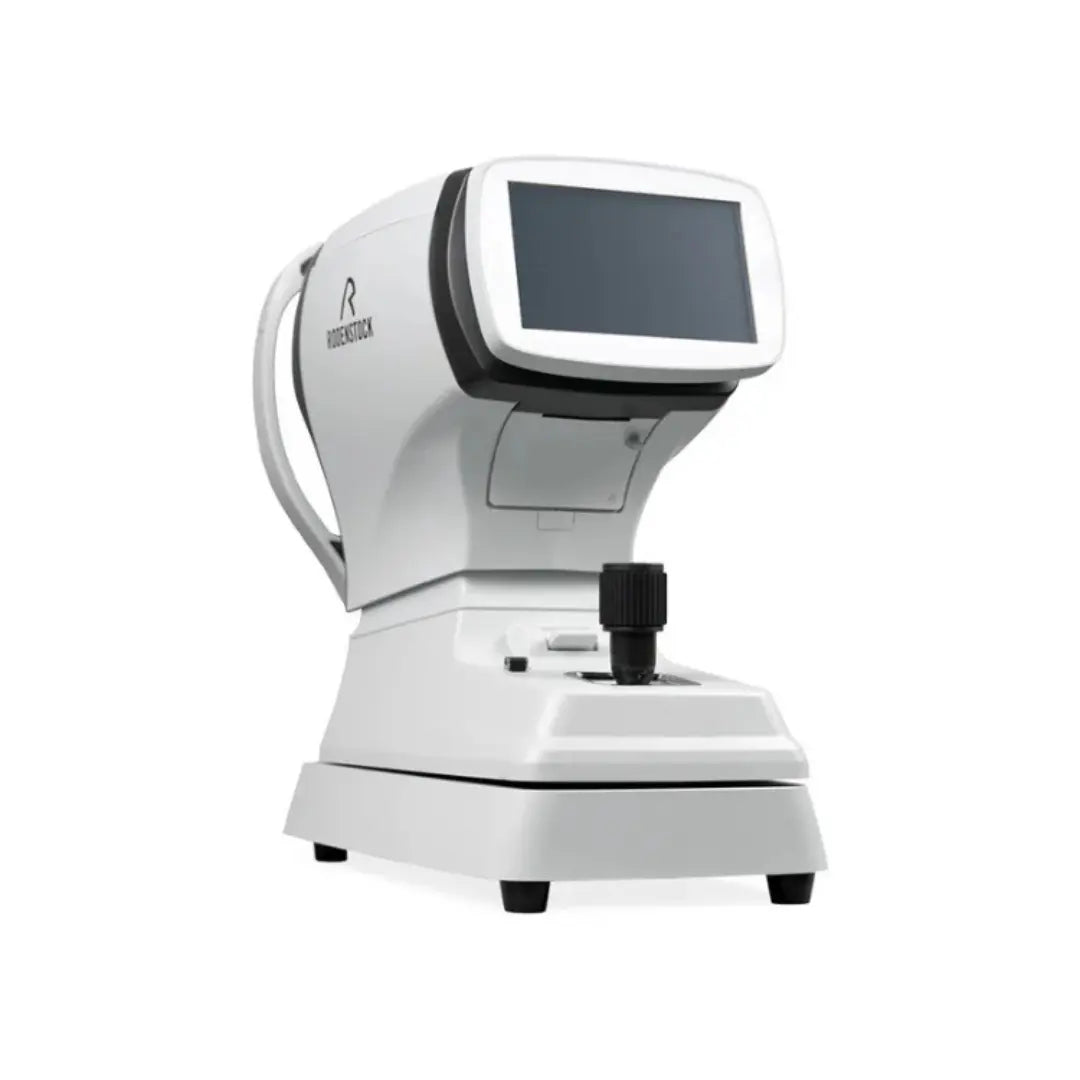

Rodenstock CX 1000 – Autorefractor-Keratometer
Tune up your business with faster, smarter measurements.
The CX 1000 combines reliable objective refraction and keratometry with a modern, user-friendly workflow. Semi-auto pupil tracking, a tilting/swiveling 7″ touch screen, and instant printouts help you move from capture to result in seconds. Ready for Wi-Fi/RS-232 connectivity and near-vision simulation, it’s ideal for practices that want consistent quality, speed, and simple operation—without sacrificing affordability.
Key Features
Consistent quality
- Measurements you can rely on, with repeatable results across patients.
- Wide measurement range to accommodate more prescriptions.
Save time
- Semi-auto pupil tracking reduces measurement time by auto-adjusting pupil height.
- Auto-shooting and quick printouts streamline your flow from capture to record.
Intuitive operation

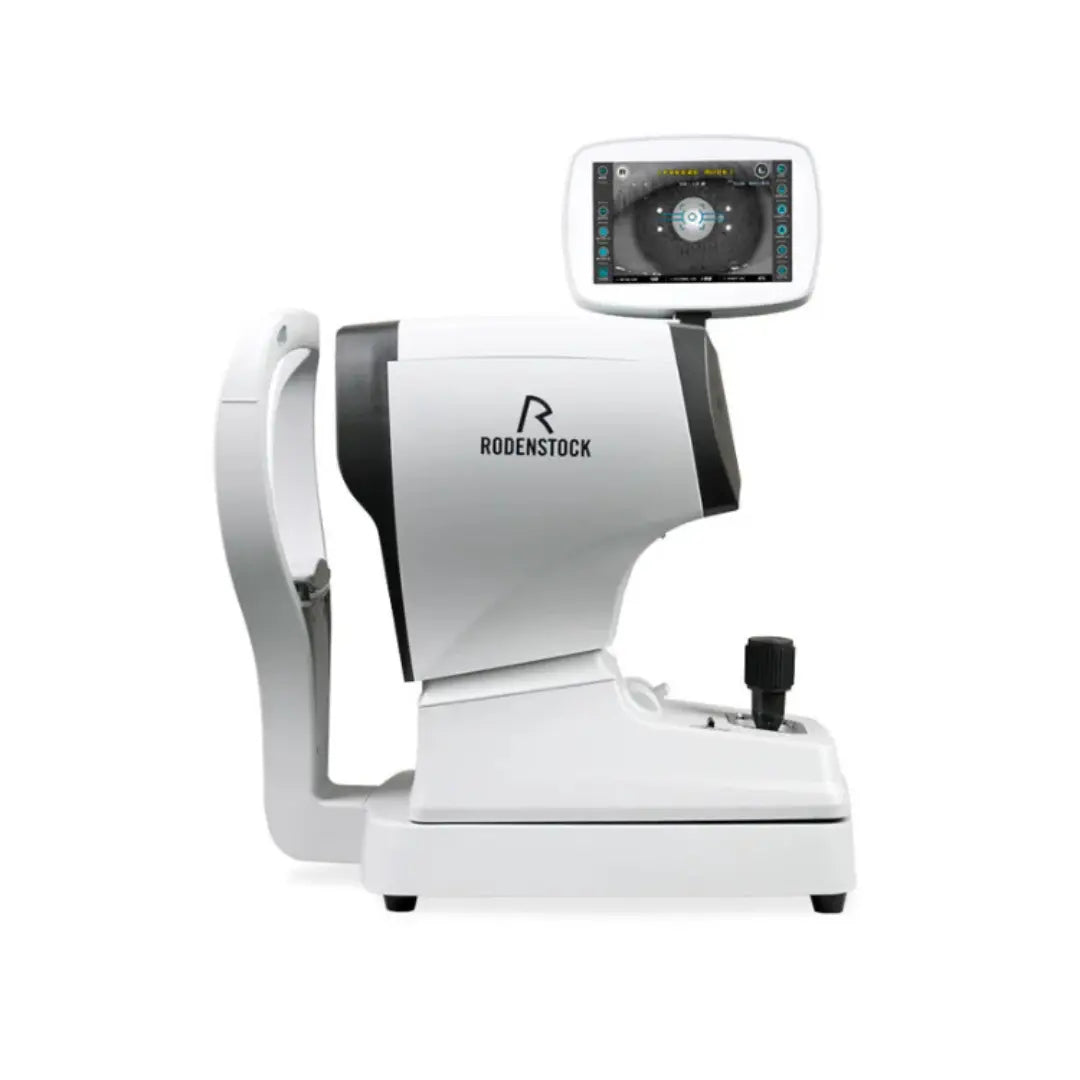

- 7″ TFT-LCD touch screen that tilts and swivels for comfortable viewing.
- Clear software layout with on-screen guidance throughout the exam.
Added clinical value
- Retro illumination: capture up to 10 images per eye to observe crystalline lens or contact-lens scratches.
- Near-vision simulation: quickly assess the need for progressive lenses by short-distance simulation.

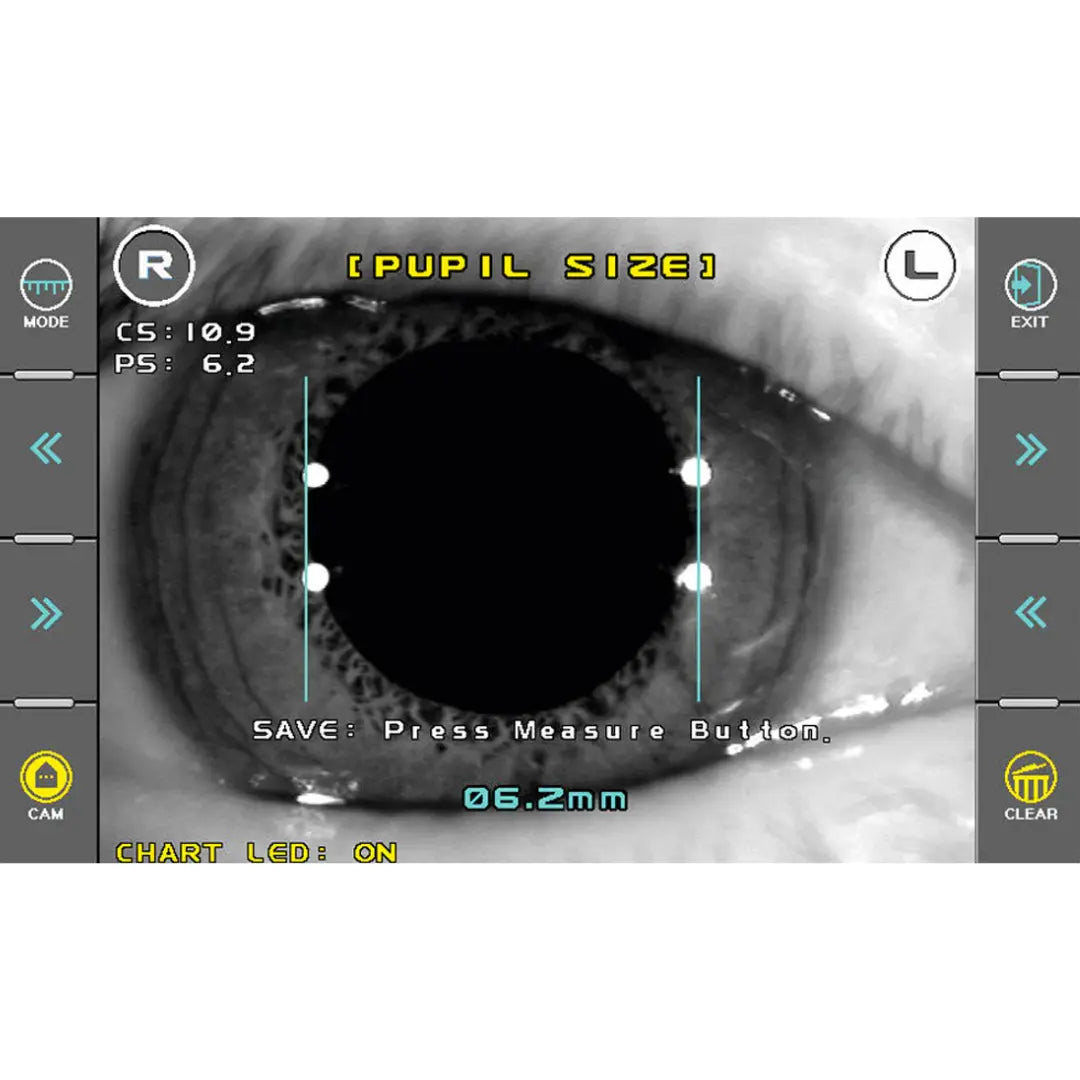

- Corneal size: measure pupil diameter and white-to-white easily.
Seamless connectivity
- Ready to connect to PHOROMAT 2000 via Wi-Fi or RS-232.
- Mirror the display to external monitors via VGA (5:3 aspect) and export via USB.
Printer with auto-cutter
- Thermal line printer outputs results in various formats with automatic cutting.
Specifications
| REFRACTOMETRY | |
| Measurement range (spherical) | −30.00 D to +25.00 D (at VD = 12.0 mm) |
| Measurement range (cylindrical) | 0 D to ±10.00 D (at VD = 12.0 mm) |
| Display unit (sphere/cylinder) | 0.12 D / 0.25 D |
| Astigmatism axis range | 1° to 180° |
| Axis display unit | 1° |
| Minimum pupil diameter | Ø 2.0 mm |
| KERATOMETRY | |
| Radius of curvature | 5.0 to 13.0 mm |
| Display unit (radius) | 0.01 mm |
| Corneal power | 25.96 D to 67.50 D (n = 1.3375) |
| Display unit (power) | 0.05 D / 0.12 D / 0.25 D |
| Corneal astigmatism | 0.00 D to 15.00 D |
| Display unit (astigmatism) | 0.05 D / 0.12 D / 0.25 D |
| Axis range | 1° to 180° |
| Axis display unit | 1° |
| MAIN UNIT | |
| Pupil distance (PD) | 10 to 88 mm |
| Corneal distance | 2.0 to 14.0 mm |
| Display unit (distances) | 0.1 mm |
| Working range of auto-tracking | Up and down ±16 mm |
| Working range of auto-shooting | Up and down ±13 mm |
| Memory of data | 10 measured values for each right and left eye |
| Internal printer | Thermal line printer with auto-cutter function |
| Monitor | 7″ TFT LCD monitor (800 × 480 px), tiltable/swivel |
| Output | RS-232, video out (VGA), USB, Wi-Fi |
| DIMENSIONS & ELECTRICAL REQUIREMENTS | |
| Dimensions (W × D × H) | 260 × 500 × 450 mm |
| Weight | Approx. 20 kg |
| Voltage | AC 100 V to 240 V |
| Frequency | 50/60 Hz |
| Power consumption | 40 to 60 VA |
