260-940 | Rodenstock AL 6400 Auto Lensmeter

Regular price $3,785.00
Sale price $3,785.00 Regular price
Unit price
SKU: 260-940
Download Brochure
Compare Ask a question

Ask a Question

* Required fields

Size guide Share
260-940 | Rodenstock AL 6400 Auto Lensmeter

260-940 | Rodenstock AL 6400 Auto Lensmeter

Regular price $3,785.00
Sale price $3,785.00 Regular price
Unit price
Product description
Shipping & Return

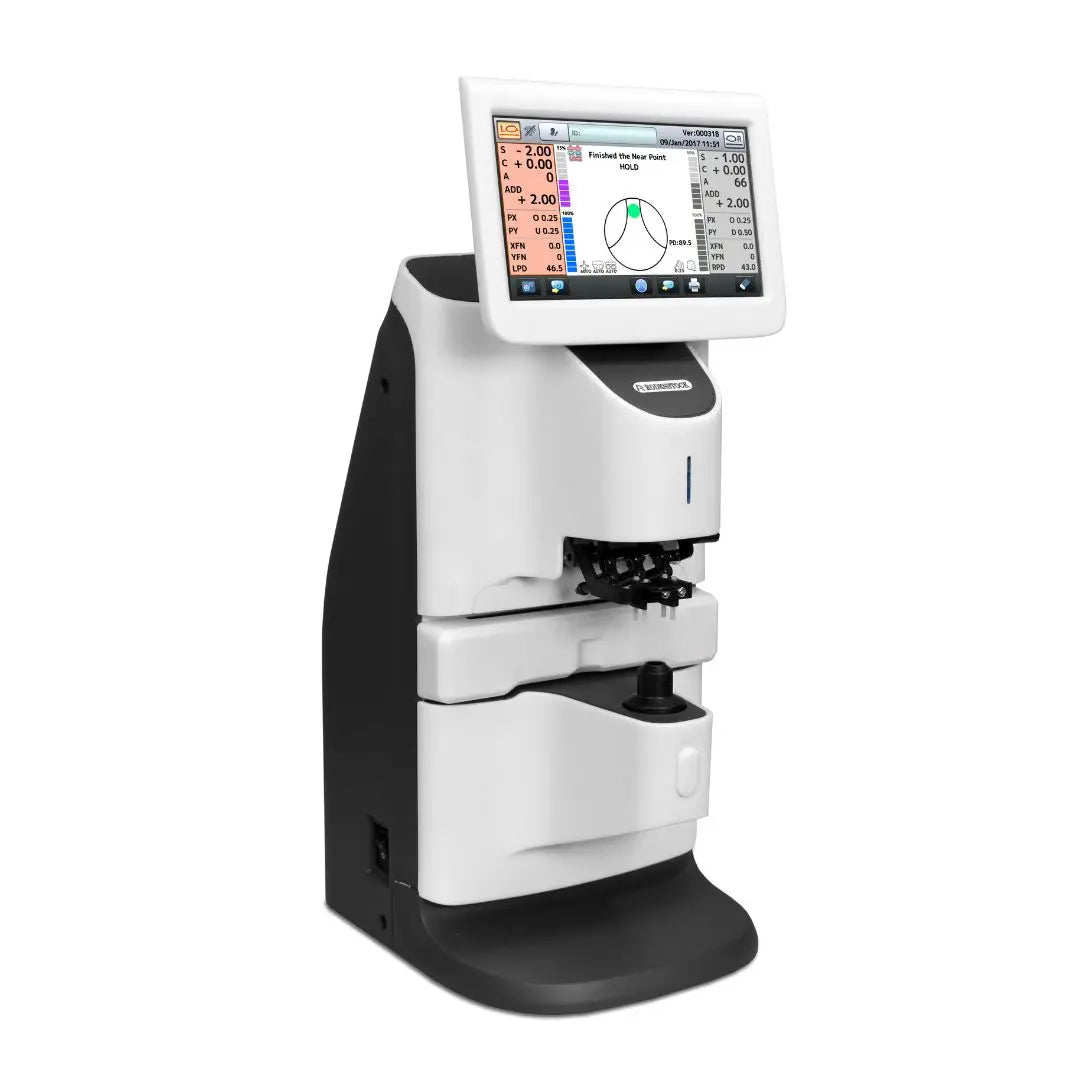

AL 6400 Auto Lensmeter

Wavefront technology with Hartmann sensor (117 points)
Simultaneous measurement of UV/Blue light and power
Lens mark recognition support
Simple power mapping
WIFI, LAN and RS-232C connection

WAVEFRONT TECHNOLOGY WITH HARTMANN SENSOR (117 POINTS)
Using 117 point Hartmann sensor
wavefront technology in AL 6400/
AL 6600, superior measurement accuracy and speed for all types of lenses is guaranteed. Green LED measurement light allows to measure high index lenses without the need of Abbe compensation.

SIMULTANEOUS MEASUREMENT OF UV/BLUE LIGHT AND POWER
Blue light filtering lenses have found their way to the optic shops and play an important role to protect the eyes from harmful blue
light emission of LED screens. Show your patients the transmittance of blue light (465 nm) and of UV light (375 nm) passing
through their lenses simultaneously
while measuring the optical power.

LENS MARK RECOGNITION SUPPORT
Various grid patterns will assist you
to recognize the lens marks easier
as well as to visualize the distortion
of multifocal lenses. The grid patterns
are changed by swiping the
fi nger over the 7-inch touch panel.

SIMPLE POWER MAPPING
Visualize the progression zone of
multifocal lenses with the simple
power mapping function. The
use of PD-value and the L-value
is recommended and is an exclusive
function of AL 6600.

SPECIFICATIONS
MEASUREMENT RANGE
Spherical power (SPH) +/- 25 D
Cylindrical power (CYL) +/- 10 D
Axial angle (AXIS) 0 to 180°
Additional power -2 to 10 D
Prism power 0 to 15
MEASUREMENT INCREMENT
Diopter 0.01 / 0.06 / 0.12 / 0.25 D
Prism 0.01 / 0.06 / 0.12 / 0.25
MEASUREMENT PARAMETERS
Wavelength 535 nm
Diameter of the lens f20 to 120 mm,
more than f5 mm for CL
Pupillary distance 40 to 86 mm, step: 0.5 mm
(for AL 6600 only)
Measurement object Spectacle lens, contact lens,
optical lens
Transmittance of UV The peak of the wavelength
is 375 nm
Transmittance of blue light The peak of the wavelength
is 465 nm
Display 7-inch-wide colour TFT
with touch panel
Printer Thermal printer,
paper width 58 mm
External communication
port RS-232C, USB3.0, Ethernet
DIMENSONS & ELECTRIC REQUIREMENTS
Dimensions WDH 188 x 240 x 430 mm
(when LCD is tilted)
Weight Approx. 5.5 kg
Voltage AC 100 V-240 V
Frequency 50/60 Hz
Power consumption 40-50 VA
