INS-11121 | Electrical Table
SKU: INS-11121
INS-11121 | Electrical Table

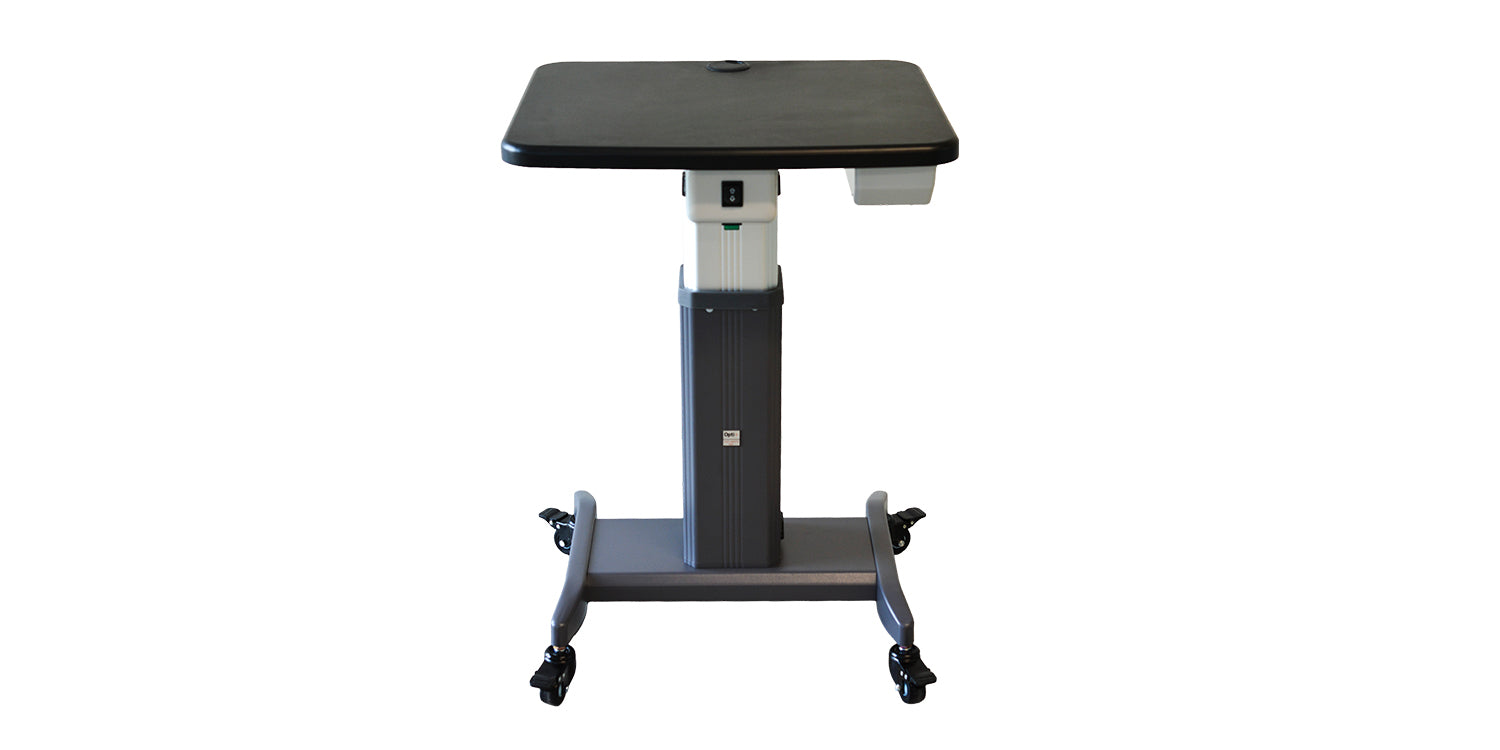

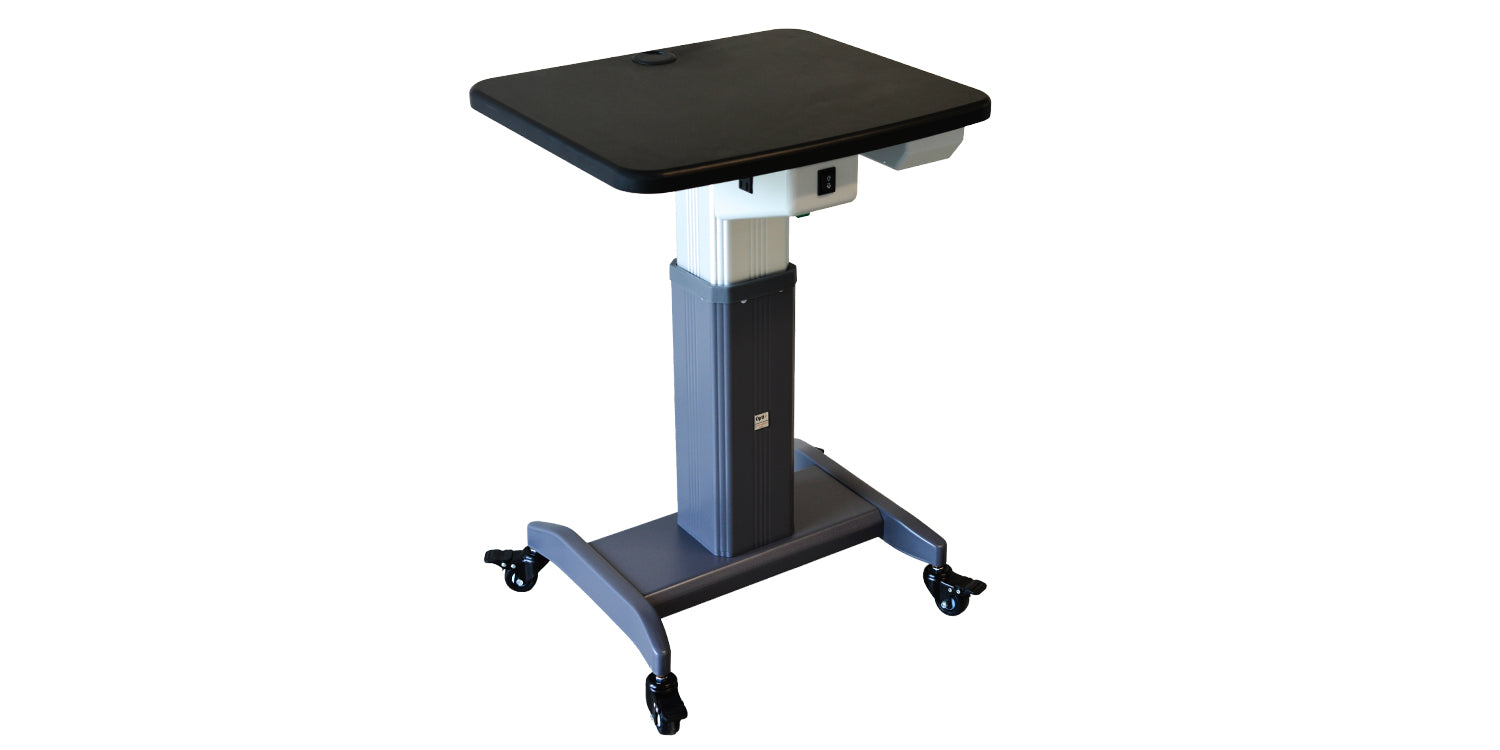

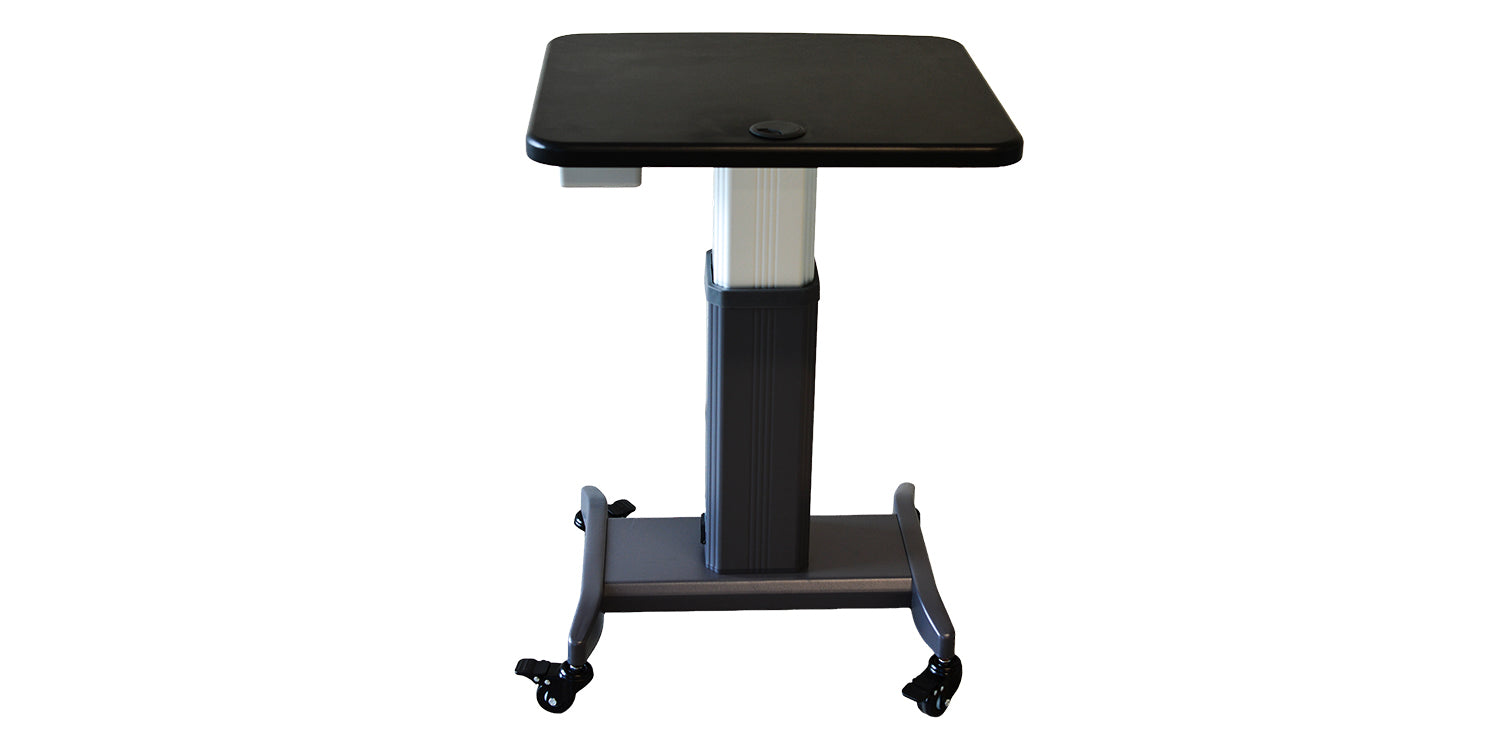

The Opti+ INS-11121 Adjustable Instrument Table provides a height-adjustable platform for optometry equipment. Its smooth lift adjusts from 24.8 to 32.7 inches, while lockable wheels make it easier to position the table in your workspace.
The tabletop measures 21.7 × 18.9 inches (550 × 480 mm). Two power output sockets are located on the sides of the power box, with an output voltage of AC 110 V or AC 220 V.
Key Specifications
Supports Autorefractor
Height range: 26.8–33.1 in
Outstanding Features
Adjustable Height with Smooth Lift
Raise or lower the table across a vertical range of 24.8–32.7 inches (approximately 63–83 cm) to suit your workspace.
Supports Up to 165 lb
The instrument table supports equipment weighing up to 165 lb.
Lockable, Height-Adjustable Wheels
The four wheels can be adjusted to the same height and locked to help keep the table in position during use.
Integrated Power Output Sockets
Two output sockets are located on the left and right sides of the power box. The output voltage is AC 110 V or AC 220 V.
Tabletop for Optometry Equipment
The 550 × 480 mm (21.7 × 18.9 inches) tabletop provides a platform for optometry equipment and related instruments.
Convenient Storage
The table includes a plastic drawer that installs into the sliding track beneath the tabletop.
Power Indicator
The indicator lamp turns green when the instrument is correctly connected to power.
✅ The Opti+ INS-11121 combines smooth height adjustment, support for up to 165 lb, lockable wheels, a 550 × 480 mm tabletop, and two power output sockets for optometry workspaces.
Technical Specifications
| GENERAL SPECIFICATIONS | |
| Model | INS-11121 |
| Equipment Type | Adjustable optometry instrument table |
| Maximum Load Capacity | 165 lb |
| Vertical Lifting Range | 24.8–32.7 in (approximately 63–83 cm) |
| Tabletop Dimensions | 21.7 × 18.9 in (550 × 480 mm) |
| Net Weight | 41.9 lb (19 kg) |
| ELECTRICAL DATA | |
| Rated Power Supply | AC 110–220 V, 50/60 Hz |
| Power Output Sockets | 2; AC 110 V or AC 220 V output |
| Fuse | 10 A / 250 V |
| INCLUDED FEATURES | |
| Mobility | 4 adjustable wheels with locks |
| Storage | Plastic drawer |
