INS-11107 | Hand-held Fundus Camera

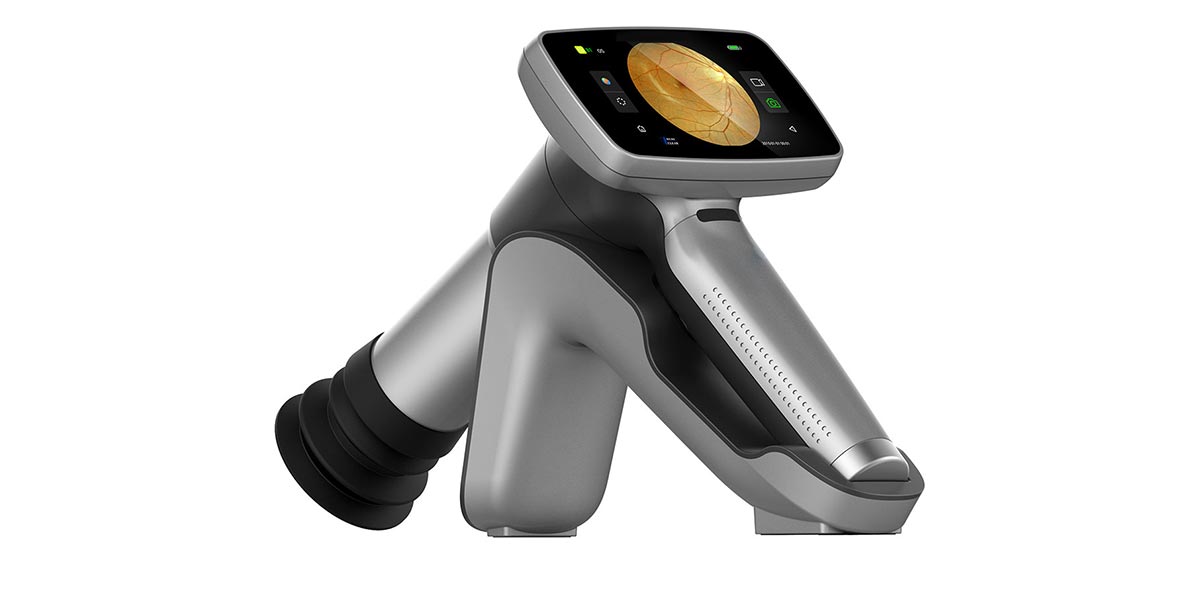

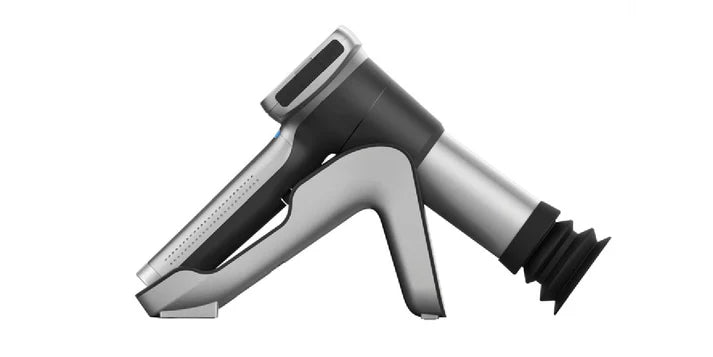

Digital Handheld Fundus Camera – Model INS-11107

Smart Retinal Imaging | Portable Design | High-Definition Output

Capture detailed retinal images with precision and ease using the INS-11107 Digital Handheld Fundus Camera. Engineered for mobility and performance, this advanced retinal imaging device delivers sharp, high-resolution fundus photos in a lightweight, ergonomic form—ideal for clinics, hospitals, and remote screening programs.

Features

HD Retinal Imaging: Captures high-quality fundus photos with remarkable clarity for accurate diagnosis.

5” Touchscreen Display: Large, easy-to-navigate screen allows real-time viewing and image adjustment.

Non-Mydriatic Imaging: Performs clear imaging without the need for pupil dilation in many cases.

Auto Focus & Image Capture: Smart focusing system ensures sharp, fast image acquisition.

Built-In Storage & Sharing: Save, manage, and transfer patient data easily with onboard memory and Wi-Fi connectivity.

Ideal for screening diabetic retinopathy, glaucoma, macular degeneration, and other retinal conditions.

Suitable for use in hospitals, outpatient clinics, nursing homes, and telemedicine settings.

Ergonomic grip and compact footprint for effortless handheld operation.

Battery-powered with long-lasting charge for extended use in the field

Built-in patient management system

Wireless transfer of images to EMR or cloud storage

This powerful device blends portability with premium performance, making it a must-have tool for any eye care practice focused on early detection and efficient patient care.

16 mega pixel Super high definition

Cloud service system
Manual/Real time focus system
8 fixation target points for quick disc positioning
Super large touch screen
Bluetooth download to Andriod only (Apple format is in development)
1.25 lbs
Hard travel case included

PRODUCT TECHNICAL PARAMETERS

FOV 45°

Transmission and storage interrnal capacity 16GB:USB/BT

Minimum pupil 2.5mm

Weight 560g

Refractive compensation -20D~+20D

Power supply lithium Battery 3.7V 3400mAh

Focus way Auto/ manual/real time auto focus

The battery continuously working time 6h( Standby time exceeds 24h)

Fixation targets 8 internal targets fixation

Image/Video format JPEG/3GP

Image resolution 1920x1080

Operating system PC: Windows system APP: Android

Screen 3. 97 inch TFT-LCD

ID Card reading and collection Support

Shoot type IR/White LED

NFC card reader Support

Model HFC
