INS-11083 | Slit Lamp Zeiss Style 5 Steps Magnifications

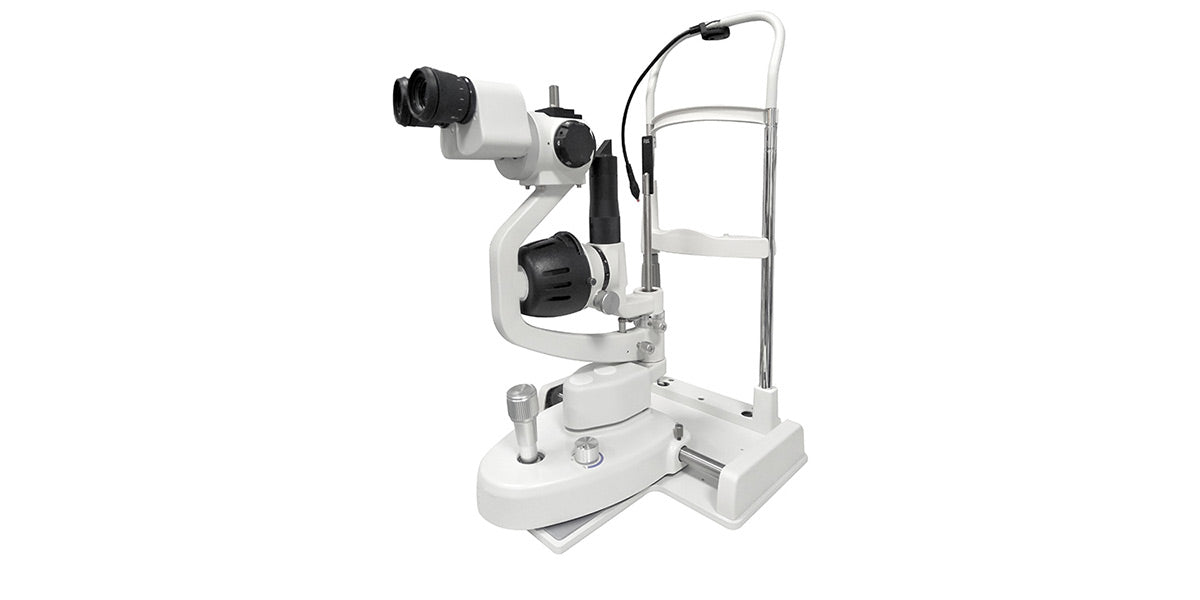

Slit Lamp Zeiss Style 5 Step Magnification

Designed for optometry and ophthalmology practices, the INS-11078 Opti+ Slit Lamp Zeiss Style delivers clear observation, stable performance, and reliable magnification for daily eye examinations. With a convergent stereoscopic microscope, 5-step rotating drum magnification, and essential built-in filters, this slit lamp is a practical solution for anterior segment evaluation and clinical diagnosis.

Outstanding Features

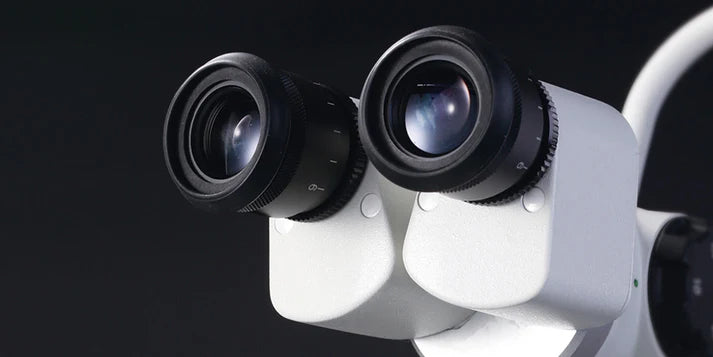

Convergent Stereoscopic Microscope

The INS-11078 is equipped with a convergent stereoscopic microscope designed to provide a clear and comfortable binocular viewing experience. This allows eye care professionals to examine the anterior segment with depth perception and precision.

5-Step Rotating Drum Magnification

The slit lamp offers a 5-step magnification system through a rotating drum, allowing the practitioner to switch between 6x, 10x, 16x, 25x, and 40x magnification levels. This flexibility supports both general observation and detailed examination.

Wide Pupillary Adjustment Range

With a pupillary adjustment range of 52 mm to 78 mm, the INS-11078 accommodates different users comfortably, helping improve ergonomics and viewing accuracy during clinical use.

Diopter Adjustment ±6D

The microscope includes a ±6D diopter adjustment, allowing the operator to fine-tune the eyepieces according to their visual needs for a sharper and more comfortable examination experience.

Integrated Clinical Filters

The illumination system includes essential filters such as Heat-Absorption, Red Free, and Cobalt Blue. These filters support different clinical observation needs, including corneal evaluation and fluorescein examination.

Adjustable Slit Illumination

The slit width and slit length are continuously adjustable from 0 to 14 mm and 1 to 14 mm, while the slit angle ranges from 0° to 180°. This allows flexible control of the illumination beam for different examination techniques.

Halogen Illumination System

The INS-11078 uses a halogen lamp 6V, 20W, providing strong illumination of ≥50K Lux for clear observation during slit lamp examinations.

✅ The INS-11078 Opti+ Slit Lamp Zeiss Style combines reliable optics, 5-step magnification, and adjustable slit illumination—making it a practical and efficient solution for everyday clinical eye examinations.
