INS-11078 | Slit Lamp Zeiss Style 2 Steps Magnifications
Color: Default Title
SKU: INS-11078
INS-11078 | Slit Lamp Zeiss Style 2 Steps Magnifications

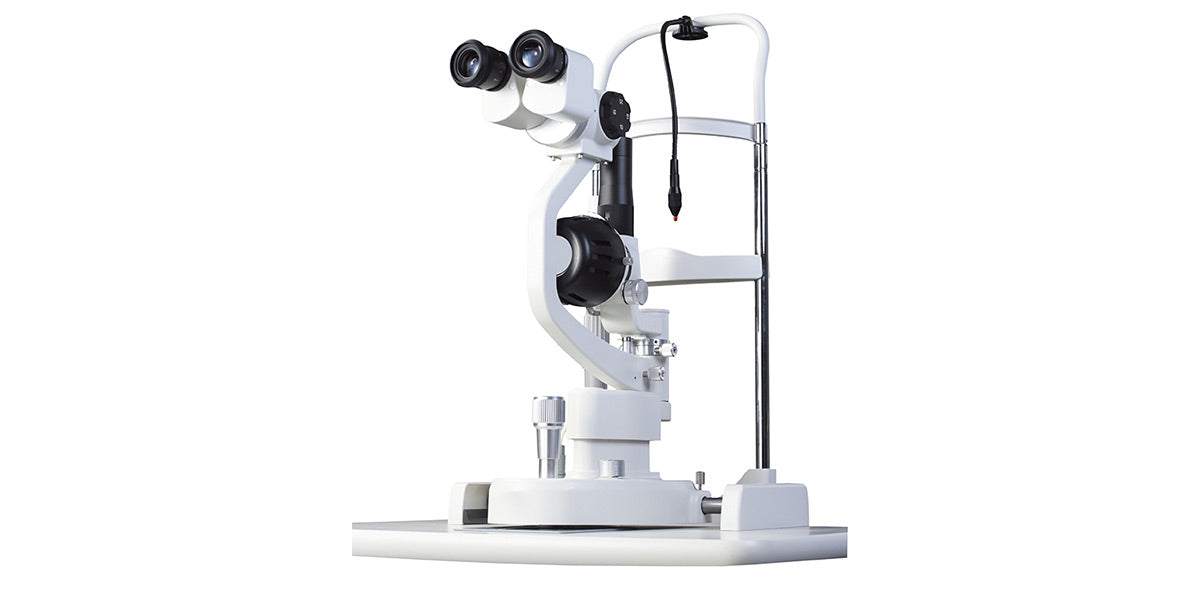

INS-11078 Opti+ Slit Lamp Zeiss Style
The INS-11078 Opti+ Slit Lamp Zeiss Style is a professional ophthalmic slit lamp designed for detailed anterior segment examination. Built with a convergent stereoscopic microscope, 2-step magnification, adjustable slit illumination, and essential optical filters, this device provides reliable performance for optometry clinics, ophthalmology practices, hospitals, and optical stores.
Designed for daily clinical use, the INS-11078 offers smooth microscope movement, adjustable interpupillary distance, precise diopter adjustment, and a stable chin rest system. Its practical illumination controls allow eye care professionals to adjust slit width, height, angle, and aperture diameter according to the examination needs.
Outstanding Features
Convergent Stereoscopic Microscope
The INS-11078 is equipped with a convergent stereoscopic microscope that provides a clear binocular viewing experience for anterior segment examination. This allows practitioners to observe ocular structures with depth perception and clinical precision.
2-Step Magnification System
This slit lamp features a 2-step magnification system, allowing the user to switch between 10x and 16x magnification. This makes the instrument suitable for general eye examinations and more detailed clinical observation.
10x Eyepieces
The device includes 10x eyepieces designed to support comfortable viewing and clear image quality during slit lamp examinations.
Adjustable Pupillary Distance
The pupillary distance can be adjusted from 52 mm to 78 mm, helping practitioners achieve comfortable binocular alignment for different users.
Diopter Adjustment
The microscope includes a diopter adjustment range of +5D to -8D, allowing users to fine-tune focus according to their visual needs.
Flexible Slit Illumination
The INS-11078 provides continuously variable slit width and height from 0 to 14 mm, along with an adjustable slit angle from 0° to 180°. This flexibility supports multiple examination techniques and clinical applications.
Multiple Aperture Diameters
The slit lamp includes aperture diameter options of Φ14, Φ8, Φ3.5, and Φ0.2 mm, giving the practitioner more control over illumination size and examination detail.
Built-In Optical Filters
The device includes essential filters such as heat absorption, red-free, and cobalt blue. These filters support different diagnostic procedures and improve examination versatility.
Stable Base and Smooth Movement
The slit lamp is designed with precise movement controls, including left/right, forward/backward, and up/down movement. This helps provide stable positioning and smooth operation during patient examinations.
✅ The INS-11078 Opti+ Slit Lamp Zeiss Style combines convergent stereoscopic viewing, 2-step magnification, adjustable slit illumination, multiple filters, and stable mechanical movement—making it a reliable solution for professional eye care practices.
Technical Data
| PRODUCT INFORMATION | |
| Product Name | INS-11078 Opti+ Slit Lamp Zeiss Style |
| Product Type | Ophthalmic Slit Lamp |
| Magnification | 2-Step Magnification |
| Recommended Use | Optometry clinics, ophthalmology practices, hospitals, optical stores, and vision centers |
| MICROSCOPE | |
| Microscope Type | Convergent stereoscopic microscope |
| Eyepieces | 10x |
| Magnification Steps | 2 steps |
| Total Magnification Ratio | 10x and 16x |
| Field of View | 16x: Φ14.5 mm / 10x: Φ18 mm |
| Pupillary Adjustment | 52 mm – 78 mm |
| Diopter Adjustment | +5D to -8D |
| BASE MOVEMENT | |
| Left / Right Movement | 110 mm |
| Forward / Backward Movement | 110 mm |
| Up / Down Movement | 30 mm |
| CHIN REST | |
| Up / Down Movement | 80 mm |
| Fixation | Red LED |
| SLIT ILLUMINATION | |
| Slit Width | 0 – 14 mm continuously variable |
| Slit Height | 1 – 14 mm continuously variable |
| Slit Angle | 0° – 180° |
| Aperture Diameters | Φ14 / Φ8 / Φ3.5 / Φ0.2 mm |
| Filters | Heat absorption, red-free, cobalt blue |
| Light Bulb | Halogen lamp 6V, 20W |
| Illumination | ≥50K Lx |
| POWER | |
| Input Voltage | 220V / 110V |
| Frequency | 50 / 60 Hz |
| Consumption | 30 VA max. |
Ideal For
- Optometry clinics needing reliable slit lamp examination equipment
- Ophthalmology practices performing anterior segment evaluations
- Hospitals looking for professional ophthalmic diagnostic instruments
- Optical stores that offer eye examination services
- Vision centers seeking a practical and efficient slit lamp solution
- Eye care professionals requiring 2-step magnification, adjustable illumination, and essential diagnostic filters
