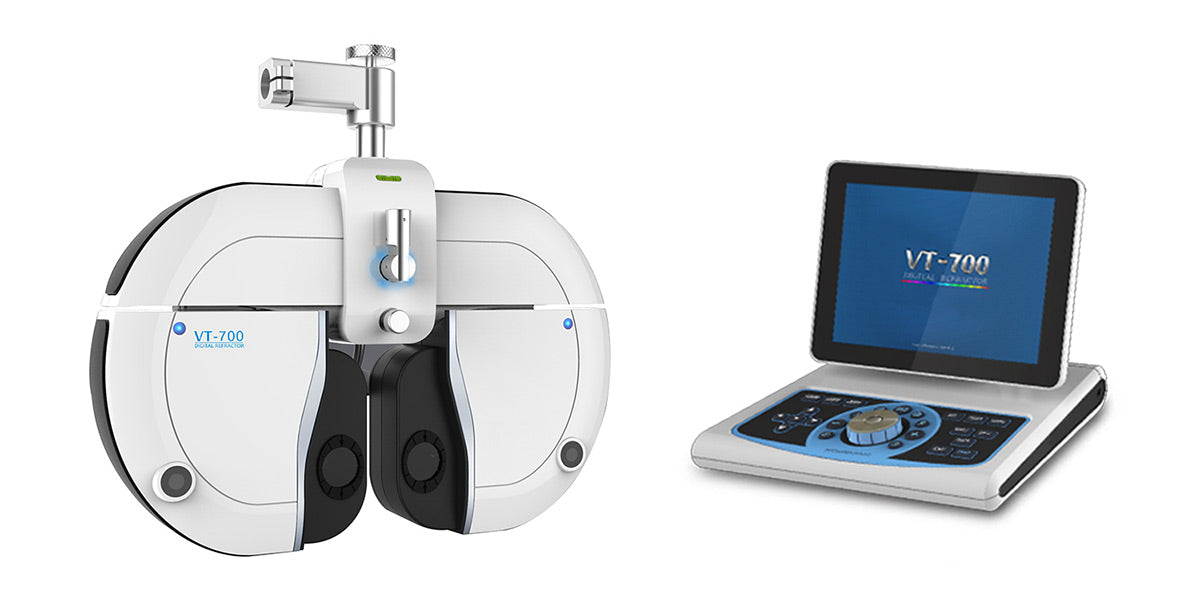

INS-11063 | Digital Phoroptor
SKU: INS-11063
INS-11063 | Digital Phoroptor
The INS-11063 Digital Phoroptor is an advanced, high-precision refracting system designed to optimize workflow in modern optometry and ophthalmology practices. Featuring a 9.7-inch true-color touch screen, automated lens changes, and extensive digital testing capabilities, it provides faster, more accurate subjective refraction while enhancing patient communication and comfort.
Outstanding Features
9.7” True-Color Touch Screen Interface
The integrated 9.7-inch true-color touch screen delivers intuitive operation and smooth navigation through testing functions. Its 180° rotating screen allows direct communication with patients, improving engagement and transparency during the refraction process.
Advanced Digital Refraction System
With highly precise electronic lens control, the INS-11063 offers multiple step increments (0.12D / 0.25D / 0.5D and more) for refined measurements. Automated transitions between lenses improve efficiency while ensuring exceptional accuracy.
Comprehensive Testing Functions
The system includes built-in near vision charts, facilitating icons, and multiple auxiliary testing modes. Integrated Jackson Cross Cylinders (0.25D and 0.50D), dual cross cylinder functionality, and programmable prism adjustments support complete subjective refraction and binocular vision assessment.
Abundant Online & Upgrade Capabilities
Designed for long-term clinical use, the digital platform allows easy program updates and expanded online functions, ensuring the device stays current with evolving practice needs.
Elegant Design & Precision Engineering
Crafted with refined workmanship and a modern aesthetic, the INS-11063 combines durability with ergonomic comfort. The compact yet robust body design fits seamlessly into optical stores, clinics, and ophthalmology offices.
✅ The INS-11063 Digital Phoroptor delivers intelligent automation, enhanced patient interaction, and superior measurement precision—ideal for high-efficiency optical practices.
Technical Specs
| REFRACTION RANGES | |
| Sphere | −29.00 D to +26.75 D Steps: 0.12 / 0.25 / 0.5 / 1 / 2 / 3 D |
| Cylinder | 0.00 D to −8.75 D Steps: 0.25 / 0.5 / 1 / 2 / 3 D |
| Cylinder Axis | 0° to 180° Steps: 1° / 5° / 15° / 30° / 45° |
| Prism | 0 to 20Δ Steps: 0.1 / 0.2 / 0.5 / 1 / 2 Δ |
| Working Distance | 35 to 70 cm 5 cm steps |
| PD (Interpupillary Distance) | Far: 48–80 mm Near: 45–75 mm Steps: 0.5 / 1.0 mm |
| CROSS CYLINDER & SPECIAL FUNCTIONS | |
| Jackson Cross Cylinder | ±0.25 D and ±0.50 D |
| Dual Cross Cylinder | 0.25 D (Separation Prism) |
| Ophthalmoscope Lens | +1.5 D, +2.0 D (Measuring distance: 67 cm / 50 cm) |
| Visual Angle | 32° Keyboard |
| AUXILIARY LENSES & FILTERS | |
| General |
Pinhole lens (Ø1 mm) Maddox rod (Right: Horizontal / Left: Vertical) Red & Green filters (Right: Red / Left: Green) Polaroid filters (45° / 135°) Separation prism (Right: 6BU / Left: 10BI) Jackson Cross Cylinder ±0.50 D (Axis fixation 90°) |
| DIMENSIONS & ELECTRICAL | |
| Keyboard Dimensions | 12 x 11 x 8 in (30 x 27 x 20 cm) |
| Keyboard Weight | 4 lb (1.81 kg) |
| Body Dimensions | 17 x 11 x 9 in (43 x 27 x 22 cm) |
| Body Weight | 18 lb (8.16 kg) |
| Voltage | AC 100–240V, 50/60 Hz |
| Power Consumption | 90 VA |
