INS-11053 | Slit Lamp Portable

Click here to download Manual

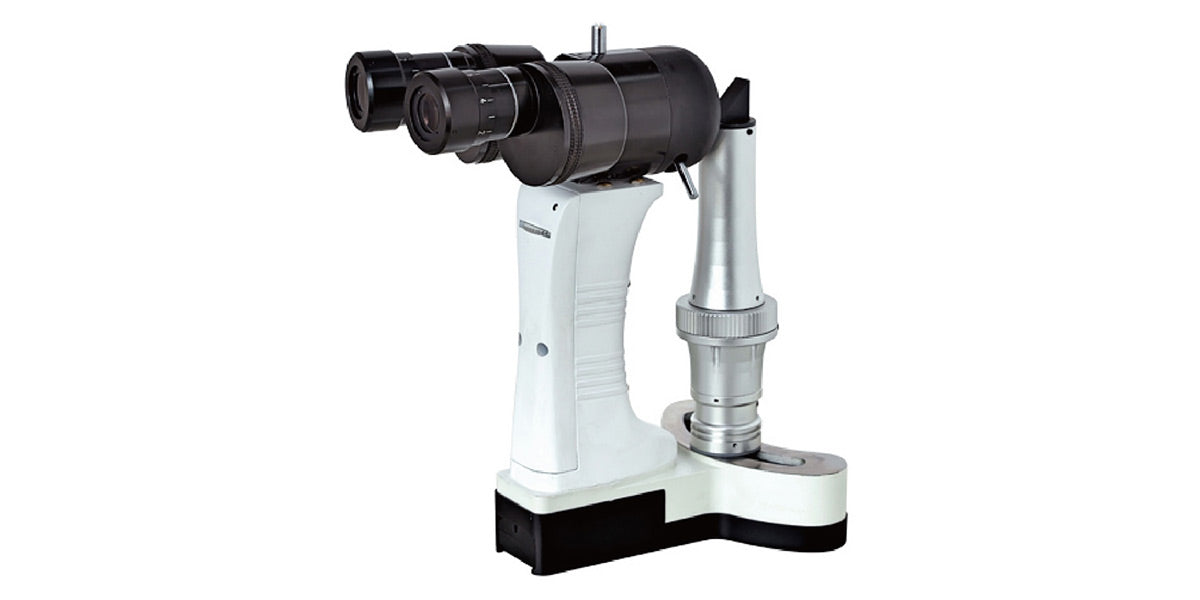

Portable Slit Lamp model INS-11053.

The portable slit lamp provides precision in small dimensions for the examination of the anterior and posterior segments of the eye. Belong to a kind of binocular stereostopic microscope, portable slit-lamp microscope includes two parts, one is used for observing through binocular microscope and the other one is used for illumination by slit lamp. With the virtues of smallness, handiness and easyoperating, it is the best choice for multiple locations, for instance,clinic, nursing home, hospital, ambulance.

Microscope Parameters Magnification: 10x 16x

Field of view: F15 F10 P.D.

PD Adjustment: 50 ~75mm

Diopter Adjustment: ±8D

Working Distance: 60mm

Light source: High luminance white LED

Filters: Cobalt blue,Red free,Color temperature conversion

Voltage: AC 100-240V,50/60Hz

Dimensions: 15 x 7 x 9 in / 38 x 18 x 23 cm

Weight: 5 lb / 2 kg
