INS-11030 | Digital Lensmeter SML 800

Regular price $1,761.00
Sale price $1,761.00 Regular price
Unit price
Brand: Opti+
Color: Default Title
SKU: INS-11030
Download Manual
Compare Ask a question

Ask a Question

* Required fields

Size guide Share
INS-11030 | Digital Lensmeter SML 800

INS-11030 | Digital Lensmeter SML 800

Regular price $1,761.00
Sale price $1,761.00 Regular price
Unit price
Product description

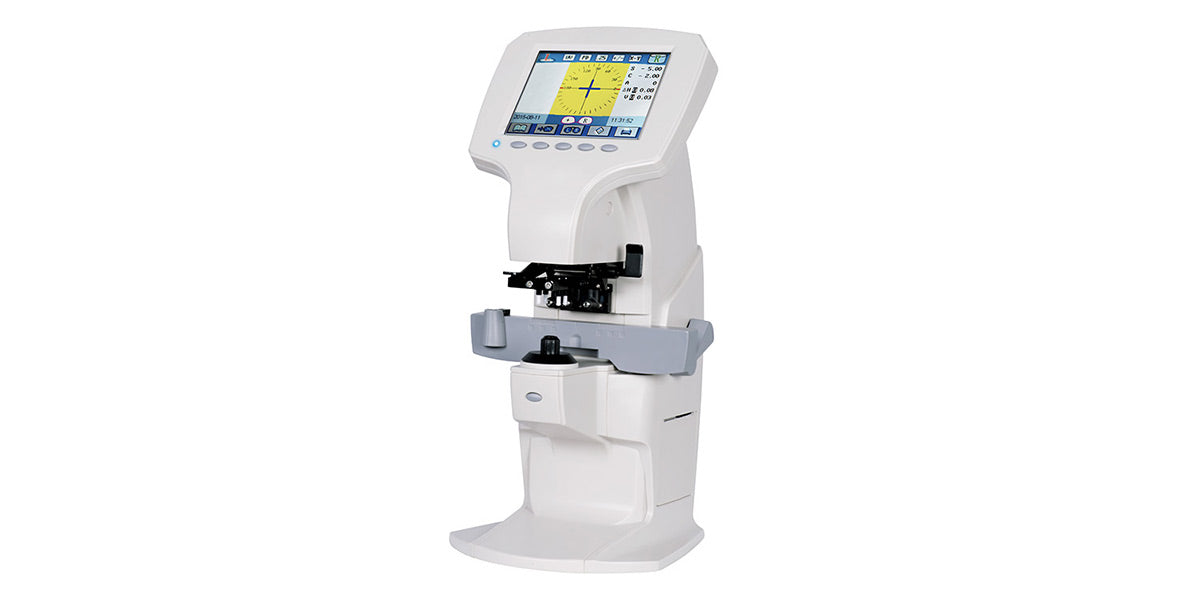

Digital Lensmeter SML 800 model INS-11030.

-Green LED light source, ABBE compensation not required

-Hartman testing method, CPU high-speed precise computing

-Automatic identifying the lens type

-Automatic measurement

-Automatic reading and memorying the data

-5.7 inch high resolving power LED screen

-Broad contents, strong performances, simple and convenient operation

Measuring rangeÔºö

Sphere:0 to ±35D(0.01D/0.06D/0.12D/0.25D steps)

Cylinder: 0 to ±10D(0.01D/0.06D/0.12D/ 0.25D steps)

Axis: 0°to 180°(1°step)

ADD: 0 to 10D(0.01D/0.06D/0.12D/0.25D steps)

Prism: 0 to 15‚ñ≥(0.01‚ñ≥)

Cylinder mode: +, +/-, -

Prism mode:

X-Y: cartesian coordinates H:I,O; V:U,D.

P-B: polar coordinates

mm: mm expression

Reading resolving power:0.01D,0.06D,0.12D,

0.25D

PD measure

Measure single vision lens,bifocal lens, trifocal lens and progressive lens,etc

Contact lens measure

UV transmissivity

Measurable transmissivity: >10%; >20% at ±10D and over

Contact lens: 0 to ±25D, BC 6.00 to 9.00

Display: 5.7 TFT LCD

Menu: readable diagram, easy operation

Lens diameter: 20mmÔΩû100mm

Power source: AC100(±10%)~240(±10%)V, 50/60HZ, 40VA

Power consumption: 40W

N.Weight: 4kg

Dimensions:190*210*420mm(W*D*H)

Environmental conditionÔºö

Temperature:5℃~40℃(in usage)-20℃~60℃(in storage/transference)

Humidity:30~85%(non-condensing)(in usage)10~95%(in storage/transference)

Atmospheric pressureÔºö700ÔΩû1060hpa

AltitudeÔºöup to 2000m

Others: no harmful dust or smoke

Optional accessories:printer(built-in thermosensitive paper size:57mm)

Dimensions: 7 x 8 x 16 in / 18 x 20 x 41 cm

Weight: 9 lb / 4 kg
