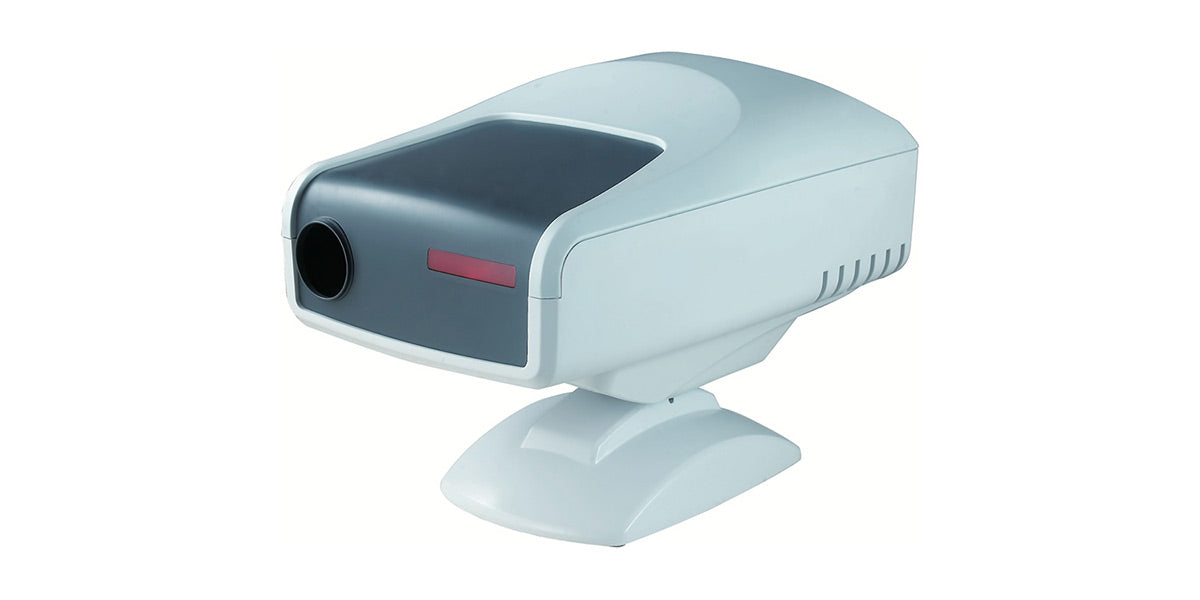

INS-11024 | Chart Proyector

Chart Proyector model INS-11024. Is used to test eyesight. This instrument makes use of the principle of optical imaging, project the charts on the screen and change the shape and the size of the charts by operating the remote controller. In this way, we can test eyesight, spherical power, cylinder power and accommodation balance. It also can be used to inspect the quality of the glasses. Auto chart projector has lots of advantages. Novel appearance, convenient operation, nice measure, credible quality and so on. It is widely used in the hospitals and eyewear shops.

Refraction distance 1.5m---6m

Projection distance 1.5m---6m

Projection magnifications 30√ó(at 5m refraction)

Numbers of the charts 30

Chart changeover 1 frame/0.03sec.

Numbers of masks Open 1, Horizontal line 5, Vertical line 8

Single isolation 21, R and G 1

Mask changeover 1 frame/0.1sec.

Program step Max. Of 30 steps are available√ó2 Type

Projection lamp 12V 50W (Halogen lamp)

Electricity AC 220V 50Hz

Power consumption 80W

Optional accessories: Floor stand, wall stand

Dimensions: 17 x 17 x 15 in / 43 x 43 x 38 cm

Weight: 22 lb / 10 kg
