INS-11006 | Auto Refractometer / Keratometer ARK9600
SKU: INS-11006
INS-11006 | Auto Refractometer / Keratometer ARK9600

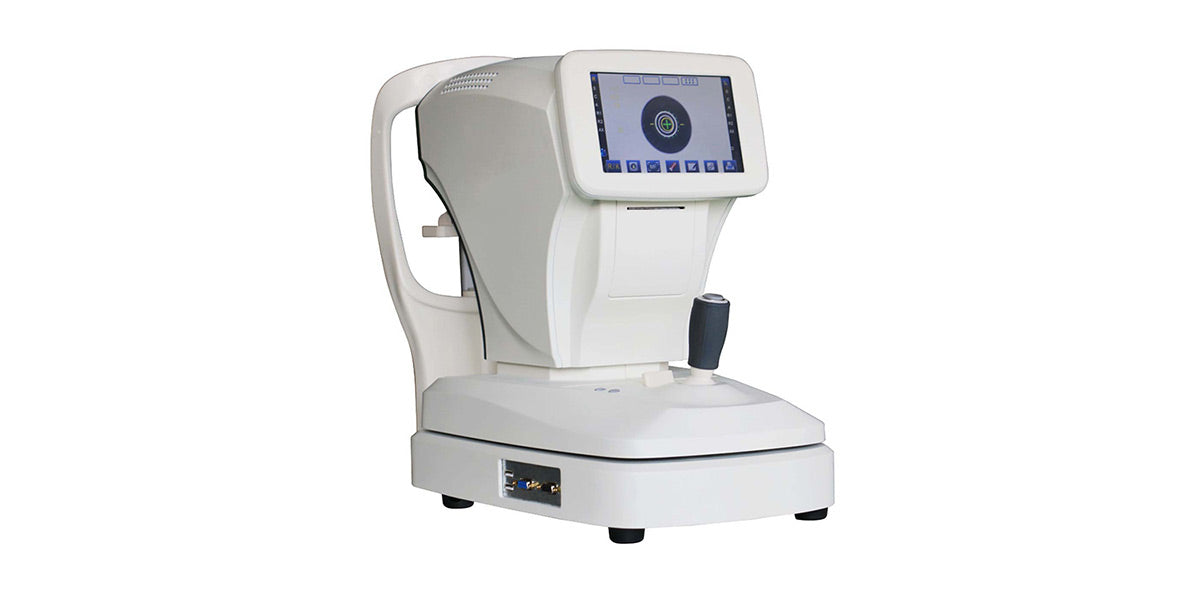

Auto Refractometer / Keratometer ARK9600
Designed for modern optometry and ophthalmology practices, the INS-11006 Auto Refractometer / Keratometer (ARK 9600 Opti+) delivers simplicity, speed, and high-accuracy measurements through advanced Hartmann wavefront technology. With high-precision refraction, fast measurement time, and a user-friendly touch interface, it improves the workflow efficiency of any clinic.
Outstanding Features
Advanced Hartmann Wavefront Sensor
The ARK 9600 uses a state-of-the-art Hartmann Analyzer to achieve high-precision, high-resolution refraction and keratometry. This technology enhances image quality and ensures repeatable, reliable measurements for prescriptions, pre-op evaluation, and contact lens fitting.
Fast, Accurate & Easy-to-Use Measurement
With a measuring time of < 0.5 seconds, the ARK 9600 offers quick and stable results. Manual and automatic measurement modes provide flexibility, while on-screen guides and error indicators help achieve accurate alignment and optimal focus every time.

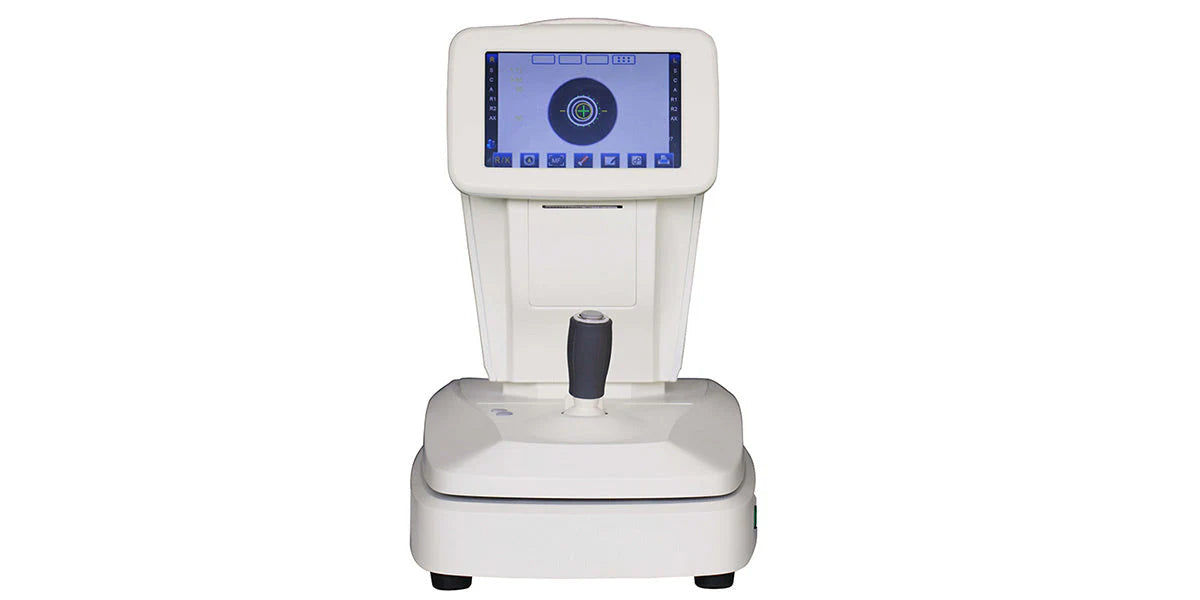

7" LCD Touch Screen with Adjustable Tilt
The adjustable-angle 7" color touch screen provides a clean, intuitive interface that simplifies staff training and enhances user experience. A precise joystick with capture button (manual mode) enables fine focusing and smooth navigation.
Horizontal & Vertical Auto Tracking
The device features manual horizontal tracking combined with auto motorized vertical focusing, improving workflow consistency and reducing operator-dependent errors.
Child Mode & Small Pupil Measurement

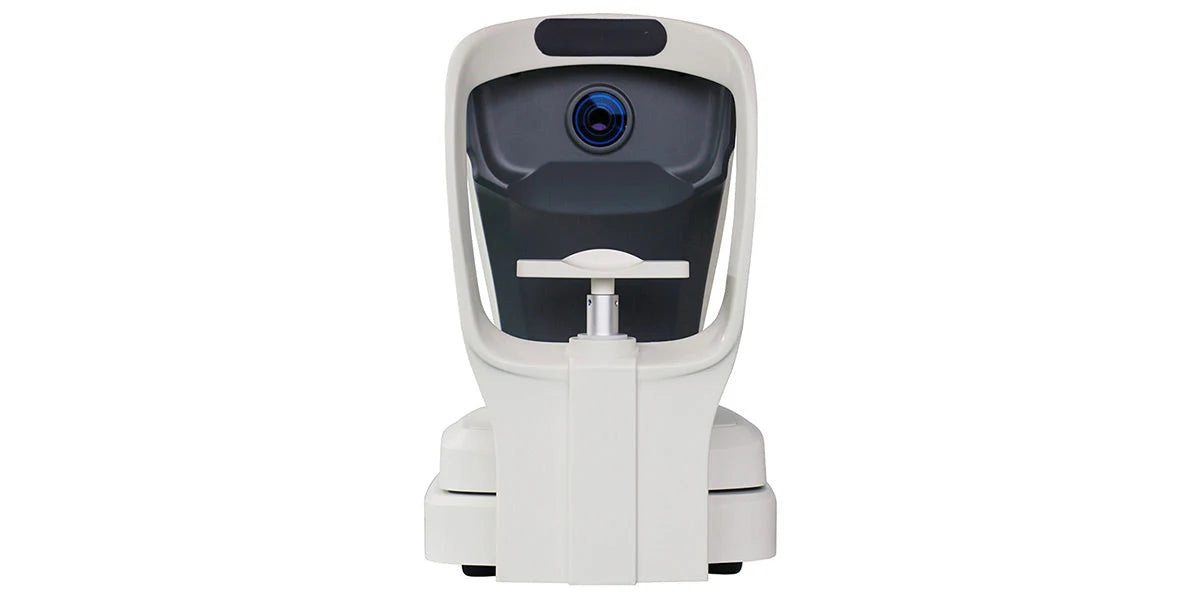

A dedicated Child Measurement Mode allows accurate readings with a minimum pupil size of 2.0 mm. The motorized chin rest increases patient comfort and ensures stable positioning—even for pediatric or sensitive patients.
Integrated Thermal Printer & Connectivity Options
The built-in 57mm thermal printer generates fast, clear printouts. USB and RS232 ports allow seamless data transfer to external devices, EMR systems, or other instruments, ensuring smooth integration into any clinic workflow.
✅ The INS-11006 ARK 9600 Opti+ combines speed, simplicity and cutting-edge Hartmann technology—delivering consistent, high-quality refraction and keratometry for busy clinical environments.
Technical Data
| TECHNICAL DATA | |
| Measurement Principle | Hartmann Analyzer & Image Processor System |
| Measurement Time | < 0.5 s |
| Thermal Printer | 57 mm thermal printer |
| MEASURING RANGE | |
| Vertex Distance (VD) | 0.0, 12.0, 13.75, 15 mm |
| Sphere (ESF) | −30.00 to +25.00 D |
| Cylinder (Cyl) | 0.00 to ±10.00 D |
| Axis | 1° to 180° |
| Cylinder Form | −, +, ± |
| Pupillary Distance (PD) | 10–85 mm |
| Minimum Pupil Diameter | 2.0 mm |
| Corneal Curvature Radius | 5.0–10.0 mm |
| Corneal Astigmatism | 0.00–15.00 D |
| Corneal Power | 33.0–67.0 D (corneal refractive index 1.3375) |
| ELECTRICAL & DIMENSIONS | |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Power Consumption | 60 W |
| Weight | 17.25 kg |
| Dimensions (L × W × H) | 750 × 400 × 630 mm |
