INS-11001 | Manual Ophthalmic Stand

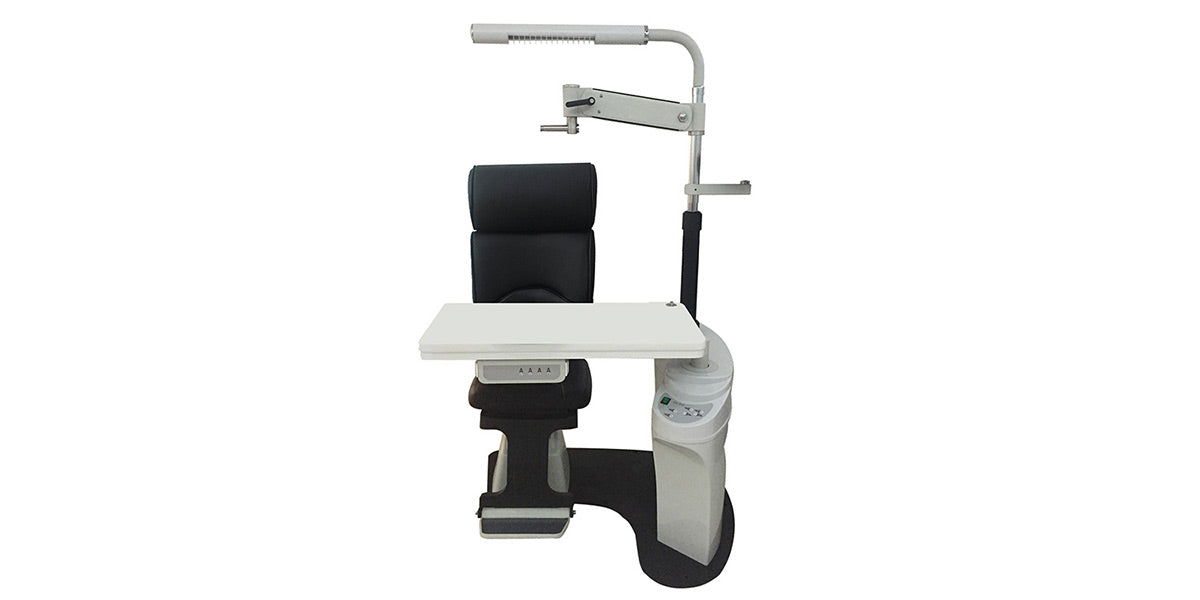

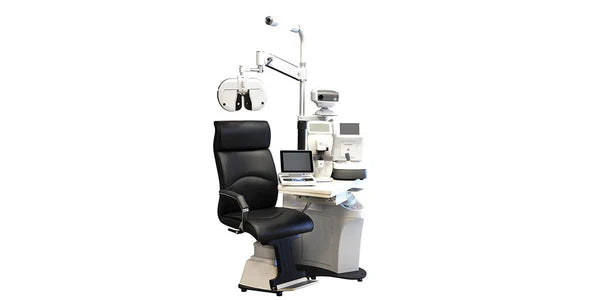

INS-11001 Manual Ophthalmic Refraction Unit

The INS-11001 is a premium ophthalmic refraction unit engineered for precision, comfort, and space efficiency. Featuring an adjustable chair with sleek, ergonomic padding and a large rotating table for dual instrument placement, this unit streamlines the exam process for both practitioner and patient. Manual lifting arm able to rotate up and down at 90 degrees. It includes a modern overhead lamp for even illumination, smooth electric controls, and an extendable arm for mounting a phoropter or other diagnostic tools. Its user-friendly control panel and compact footprint make it ideal for busy clinics and optical shops.

Key Features:

• Dual-instrument rotating table with spacious surface

• Comfortable, motorized chair with ergonomic backrest

• Integrated LED overhead lamp

• Phoropter arm and instrument support

• Digital control panel for easy operation

• Modern, space-saving design

Table lifting range: 200mm

Table size: 880mm√ó410mm

Combination sets size: 870mm√ó700mm√ó1850mm

Voltage: 220V±10 50Hz

Power: 80W

Weight: 100kg
