Product description

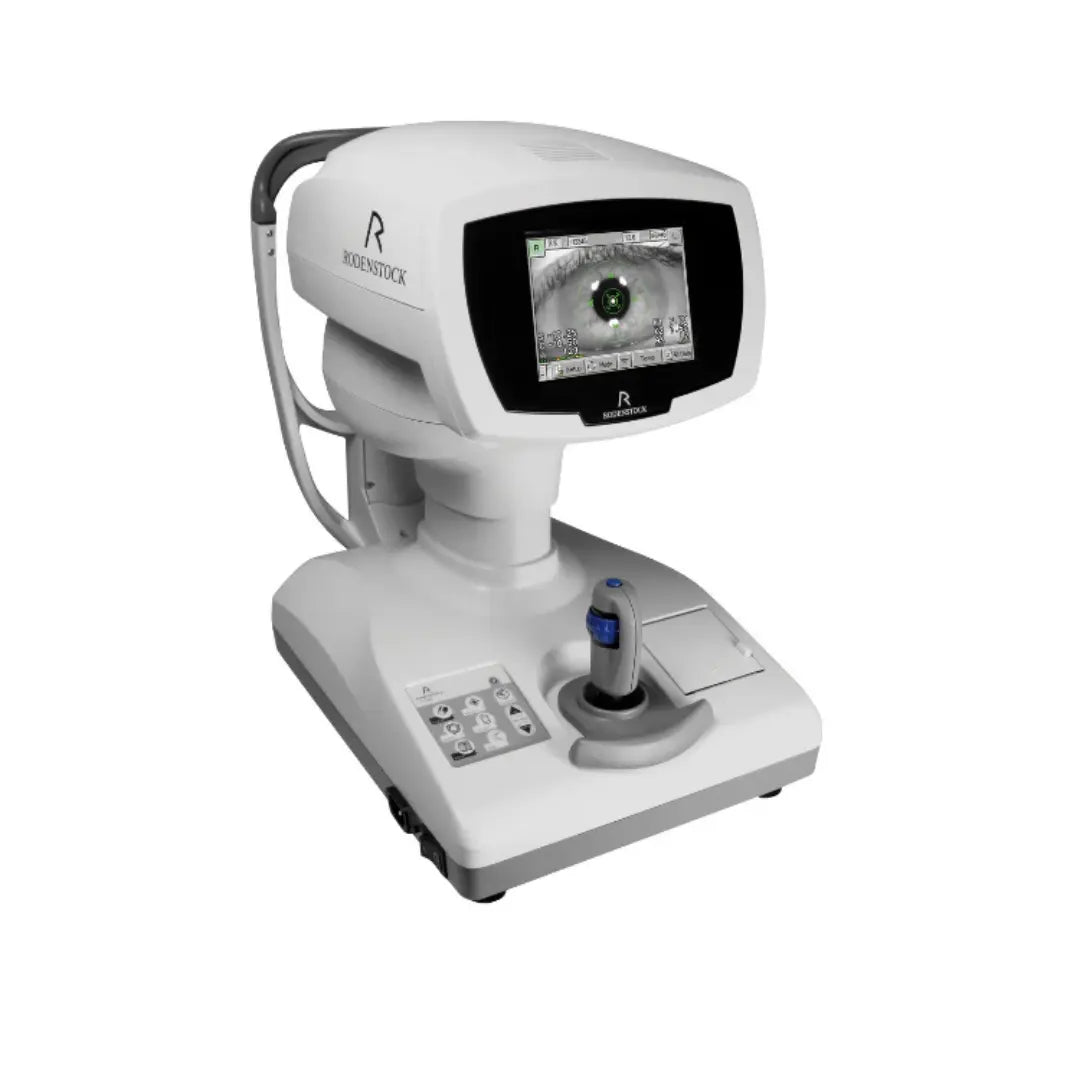

Rodenstock CX 2000 – Autorefractor-Keratometer

Plug & Touch. Immediate results.
The CX 2000 brings speed and confidence to objective refraction and keratometry. With auto-alignment, auto-measurement, a color touch screen, and a power motion joystick, it captures reliable data in seconds while keeping patients comfortable. A perfect fit for clinics that value speed, repeatability, and ease of use in one device.


Key Features

Auto-alignment & Auto-measurement

  • Simply approach the eye—alignment and measurement start automatically.
  • On-screen prompt guides immediate measurement of the fellow eye.

Extremely fast operation

  • Refraction and keratometry data in under 3 seconds.
  • See more patients per hour with consistent, repeatable results.

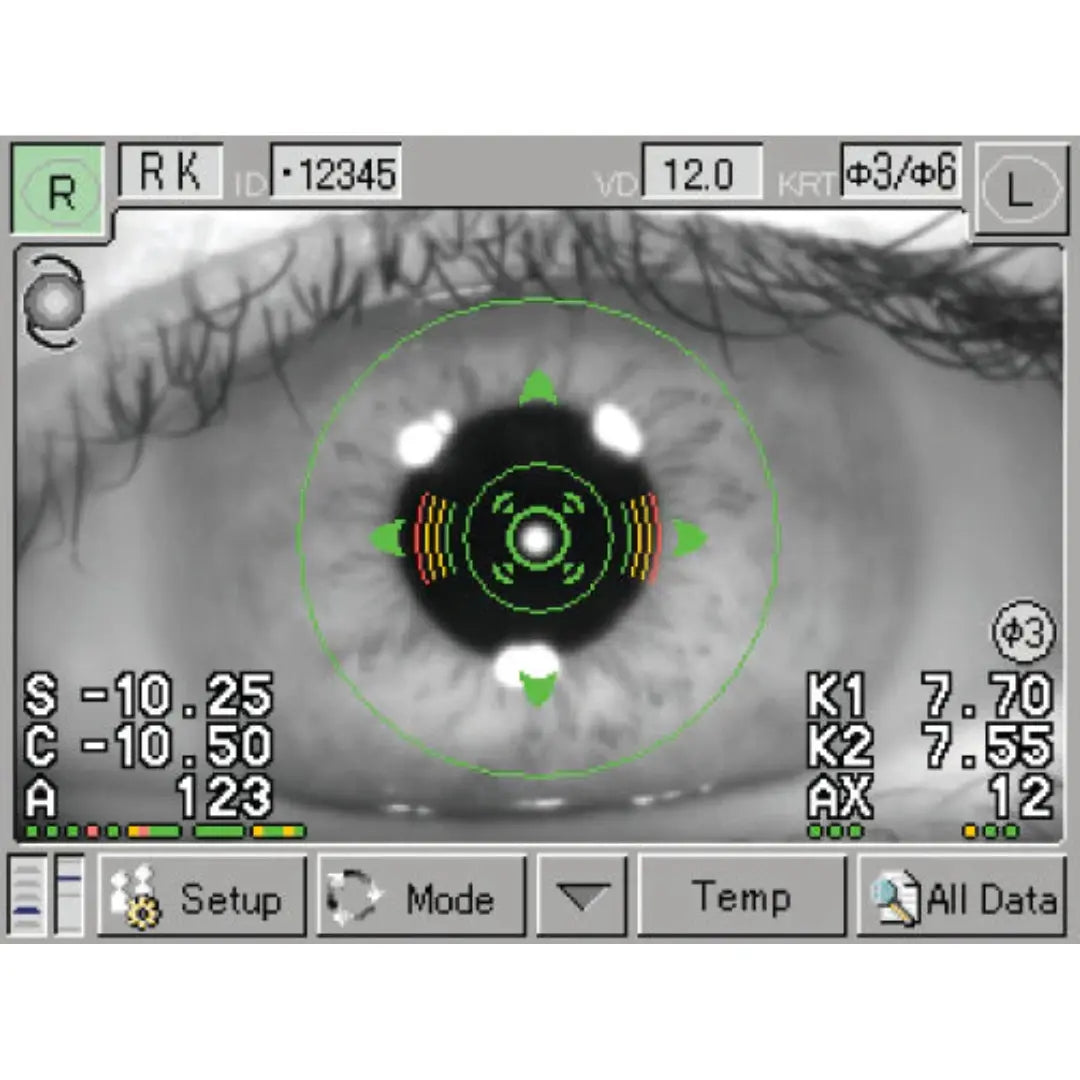

5.7″ color touch screen

  • Crisp display of results with full control directly from the screen.
  • Move the measuring head in any direction by touch for intuitive handling.

Central & peripheral K-values

  • Simultaneous measurement of central (Ø 3 mm) and peripheral (Ø 6 mm) in 1 s.
  • Measure on the cornea or on the back surface of RGP contact lenses.

Power motion joystick

  • Smooth, quiet travel with selectable power modes for precise alignment.
  • Comfortable fine control toward the patient’s visual axis.

Patient comfort

  • Electronically controlled chinrest with generous travel for quick positioning.
  • Stable, patient-friendly LED illumination.

Connectivity

  • RS-232C data output for easy integration with instruments and software.

Specifications

REFRACTIVE POWER MEASUREMENT
Spherical (SPH) −25.00 D to +22.00 D (VD = 12.0 mm)
Cylindrical (CYL) 0 D to ±10.00 D (VD = 12.0 mm)
Display unit 0.01 D / 0.12 D / 0.25 D
Astigmatism axis (AXIS) 0° to 180° (1° steps)
Minimum pupil 2.2 mm
Vertex distance 0, 12.0, 13.5, 14.0, 15.5, 16.0 mm
Measurement time Approx. 0.2 s / eye (data taking)
CORNEAL (KERATOMETRY) MEASUREMENT
Curvature (K1, K2, AVG) 5.00 mm to 11.00 mm (0.01 mm steps)
Refractive power (K1, K2, AVG) 30.00 D to 67.50 D (n = 1.3375)
Astigmatism (CYL) 0.00 D to 10.00 D (n = 1.3375), 0.01 D steps
Astigmatism axis (AXIS) 0° to 180° (1° steps)
Measurement zone Ø 3.0 mm / Ø 6.0 mm (at 8.00 mm corneal curvature)
Measurement time Approx. 0.1 s / eye (data taking)

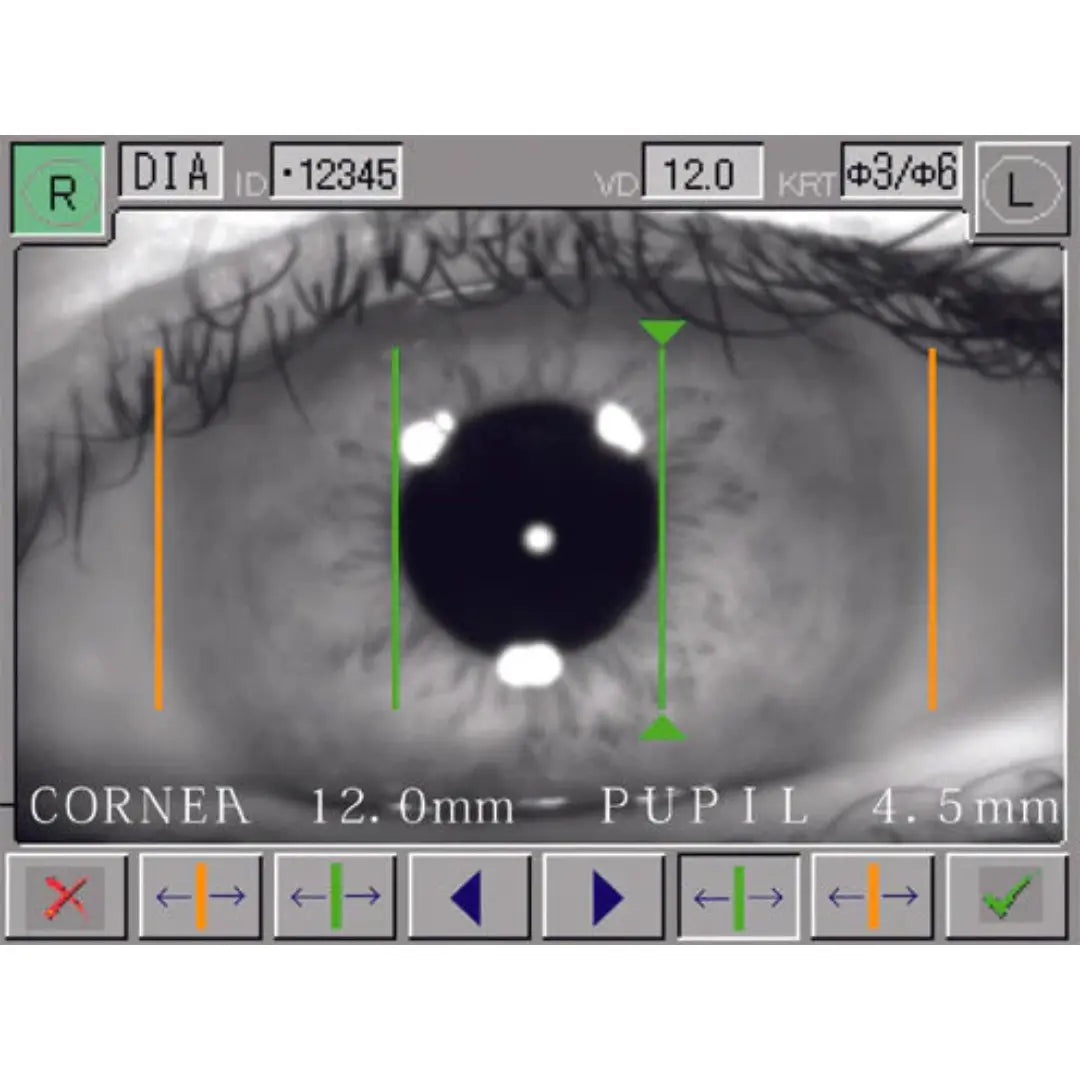

PD & DIAMETER MEASUREMENT
Pupillary distance (range) 50 to 86 mm (1 mm steps)
Corneal / Pupillary diameter 1 to 14 mm (0.1 mm steps)
Observation range Approx. 15 mm × 9 mm
AUTO-ALIGNMENT & MOVEMENT
Auto-alignment range Up-down / left-right
Directions travel 7 mm
Focusing travel 5.5 mm
Movement range (front-rear) 40 mm
Movement range (left-right) 88 mm
Movement range (up-down) 50 mm
PATIENT INTERFACE & I/O
Chin rest (movable range) 70 mm
Built-in printer Thermal printer
Display 5.7″ TFT color touch screen
Data output RS-232C
DIMENSIONS & ELECTRICAL
Dimensions (W × D × H) 300 × 493 × 466 mm
Weight Approx. 19 kg
Input 100 – 240 V AC, 50/60 Hz
Power consumption 130 – 150 VA
