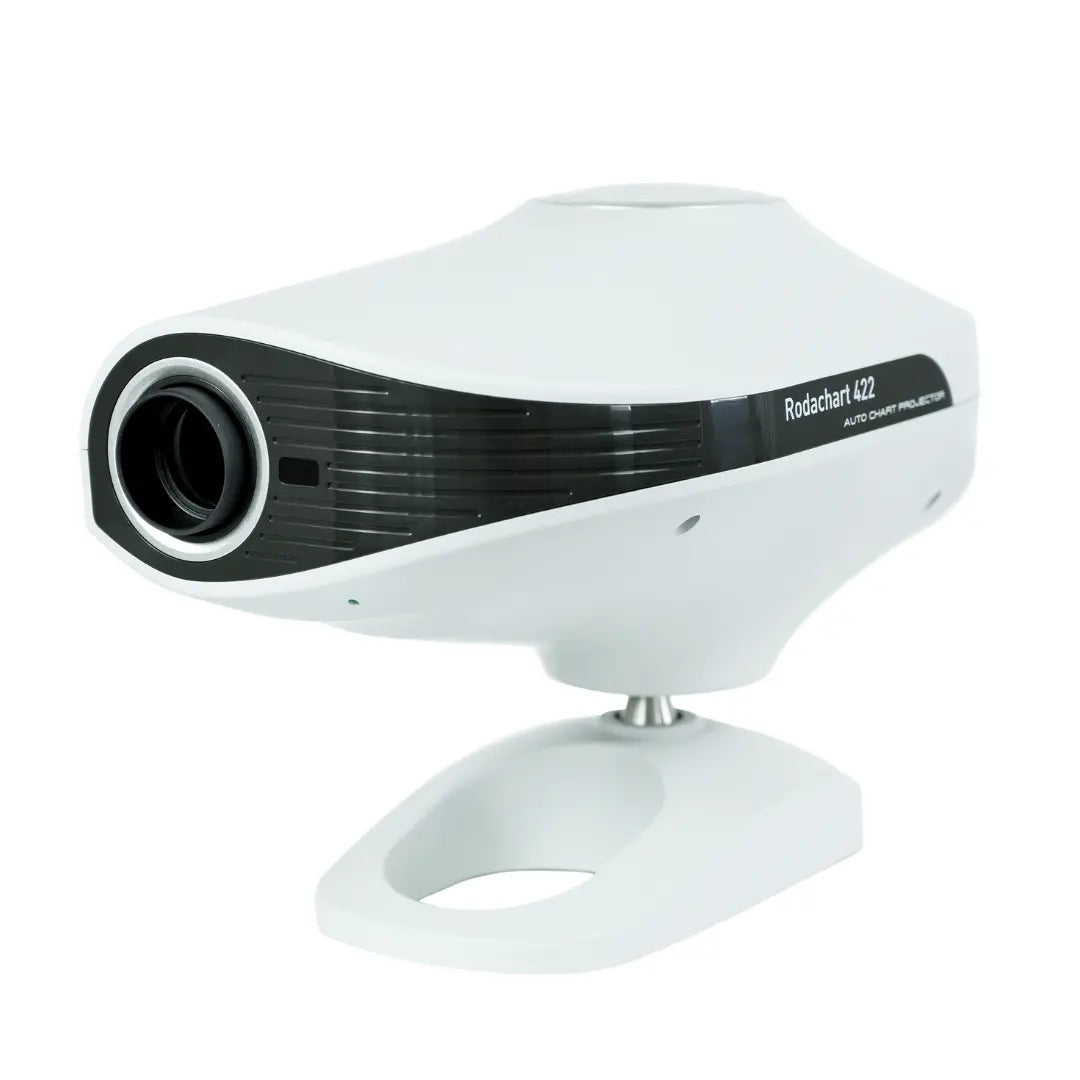

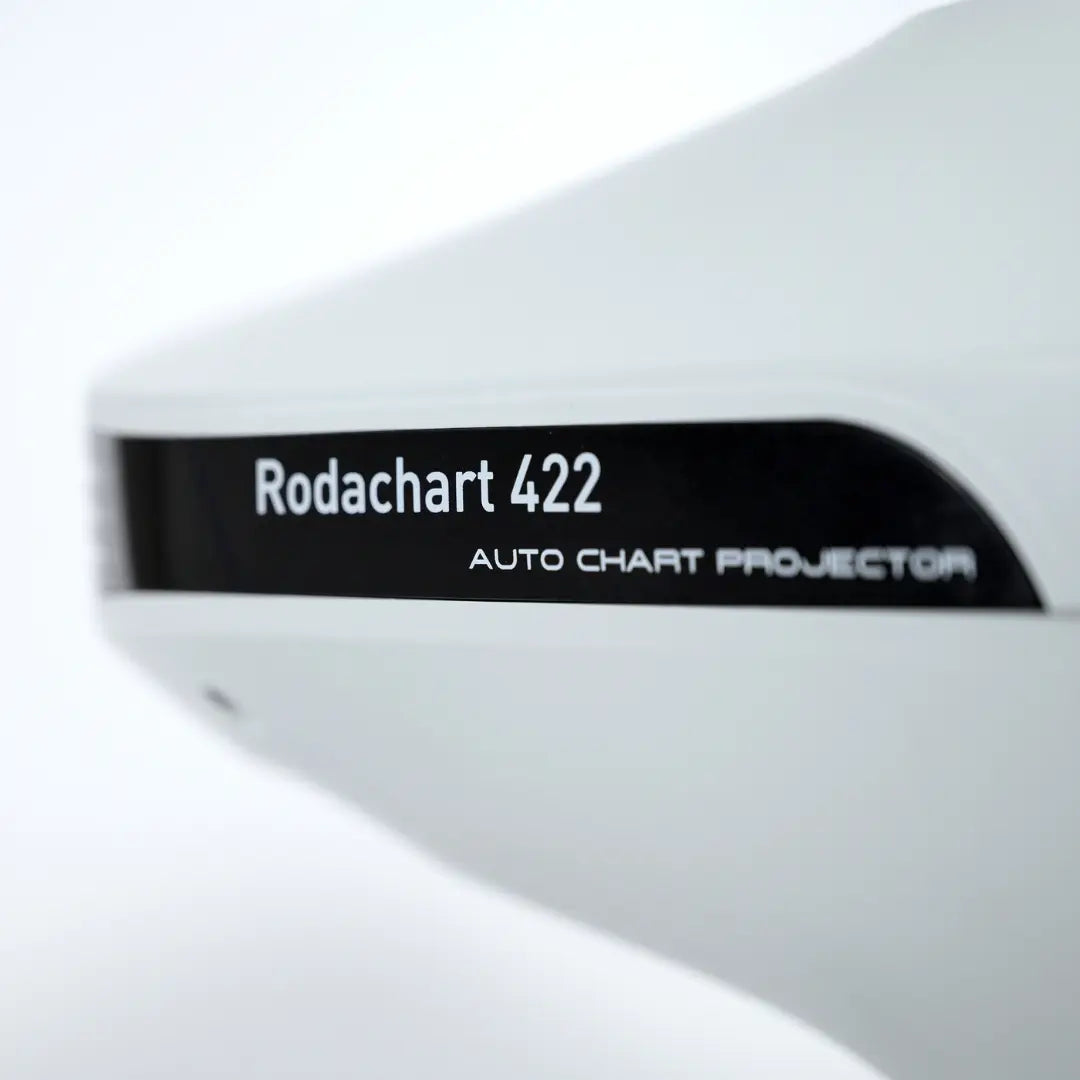

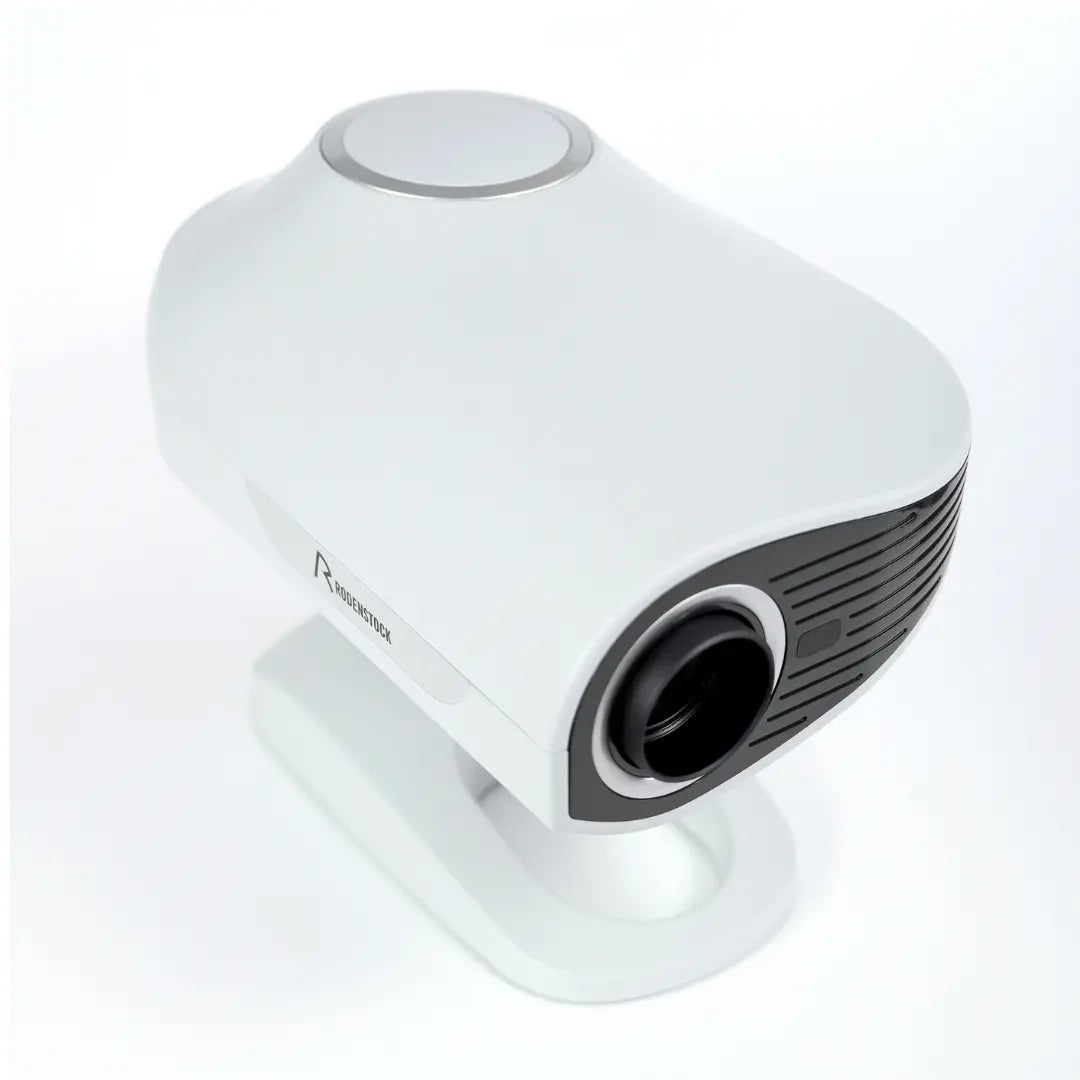

RODACHART 422 – Auto Chart Projector
Bright, fast and reliable optotype projection.
The Rodachart 422 delivers crisp, high-contrast charts from a compact body with a maintenance-free LED light source. A smart selection of 42 charts, rapid 0.3-second rotation and RS-232C connectivity help you streamline refractions and keep your lane moving.
Key Benefits
- Precise refraction: bright, clear chart projection with 30× magnification (at 5 m) for confident endpoint determination.
- Saves time: average 0.3 s chart rotation and two user programs (up to 40 charts each).
- Low maintenance: long-life white LED illumination reduces downtime and cost.

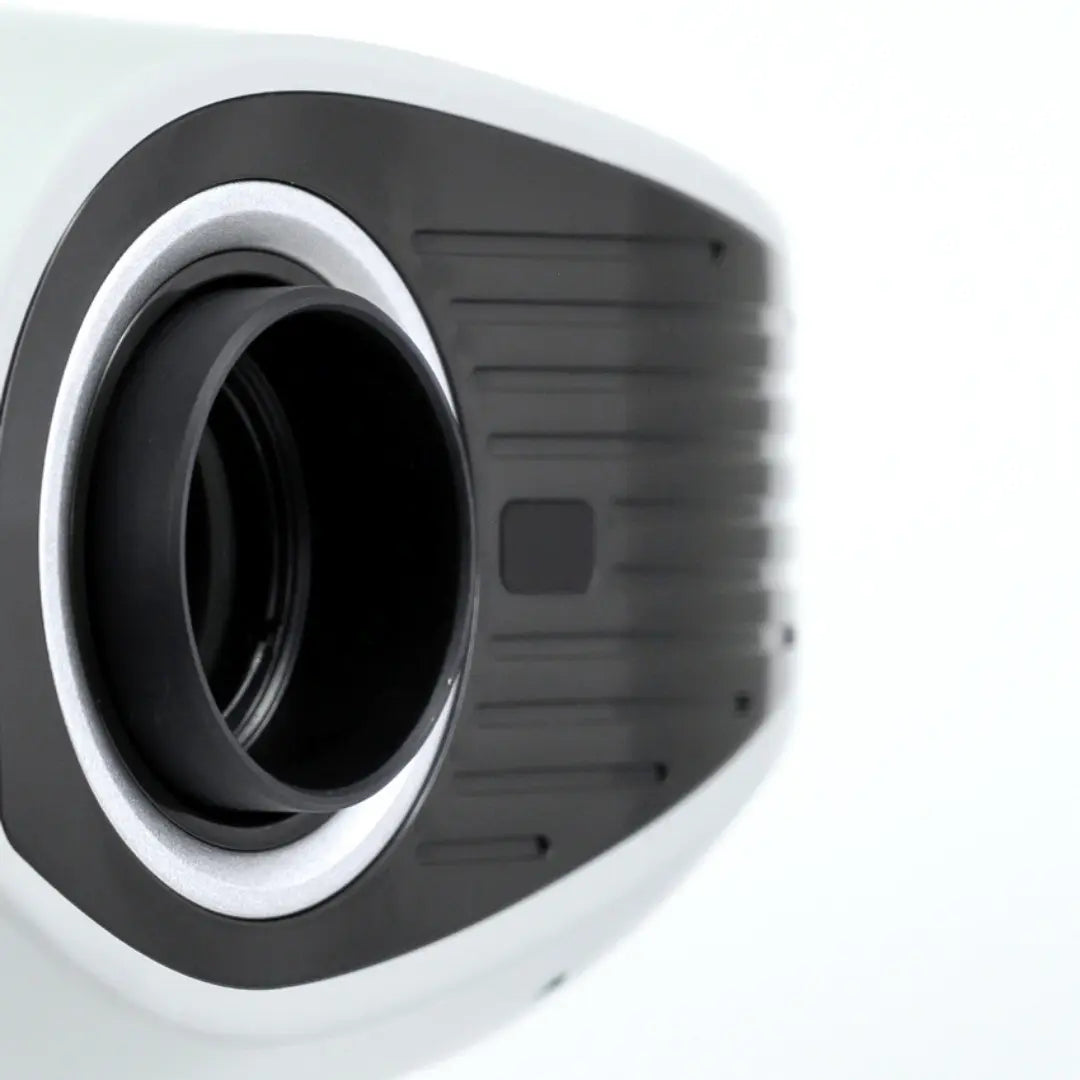

- Convenient focusing: rotary aperture focus adjustment is quick and intuitive.
- Connected workflow: ready for integration via RS-232C (e.g., with Phoromat 2000).
Specifications
| MEASUREMENT | |
| Number of charts | 42 charts |
| Distance of projection | 2.5–8 m (optional screen for 8 m distance) |
| Chart magnification | 30× (when projected at 5 m) |
| Light source | White LED lamp |
| Connector | RS-232C |
| Chart rotation speed | Average 0.3 s |
| Power save | 11 minutes (after last signal) |
| Tilt angle | ±20° |
| Resolution | 50 lines/mm |
| Programs | 2 programs, up to 40 charts each |
| Power supply | 100–240 V, 50/60 Hz |
| Power consumption | 25–35 VA |
| DIMENSIONS | |
| Body (without stand) W×D×H | 200 × 290 × 172 mm |
| Body (stand included) W×D×H | 200 × 290 × 235 mm |
| Remote control W×D×H | 64 × 196 × 20 mm |
| WEIGHT | |
| Stand included | 3.6 kg |
| Remote control | 160 g (battery included) |
