Product description

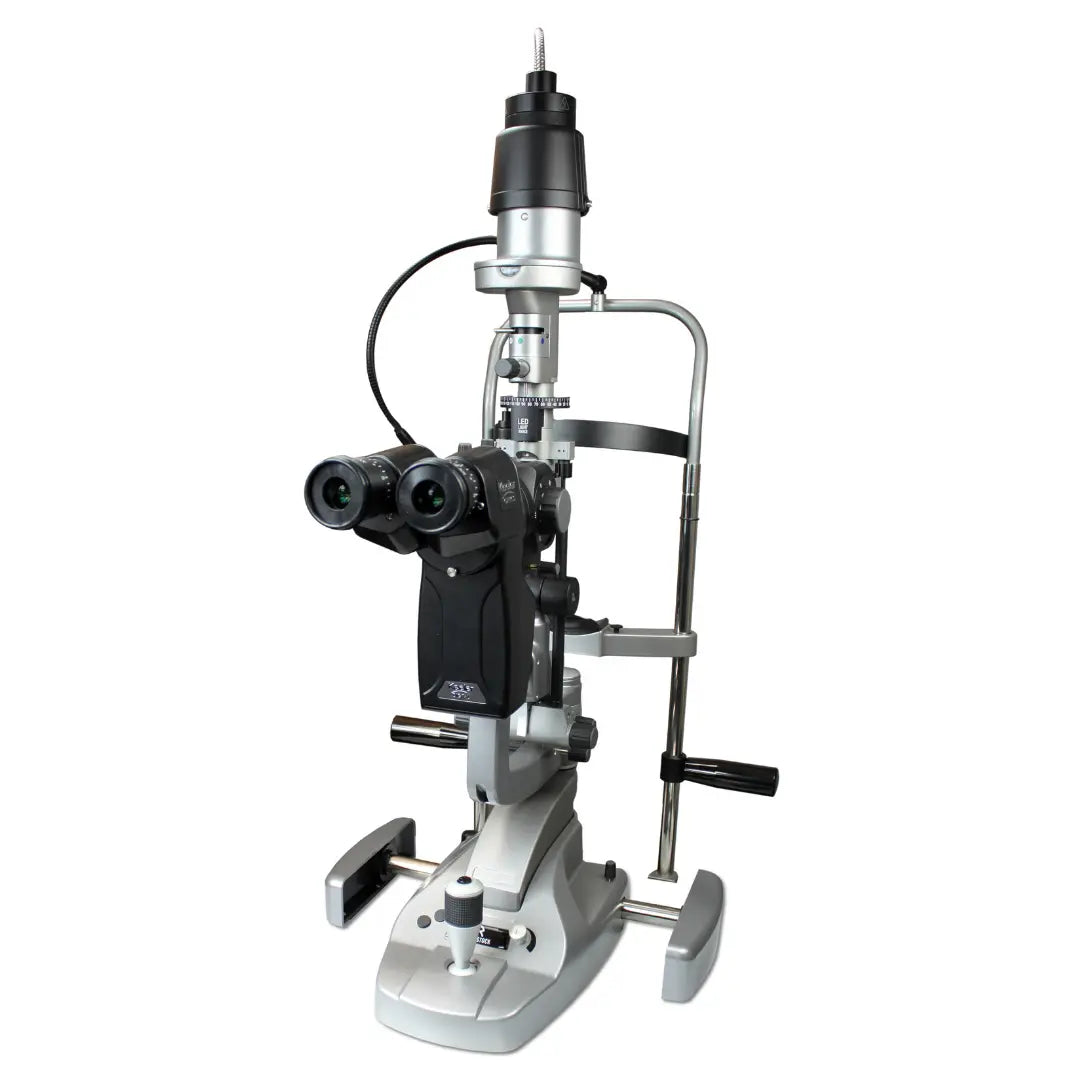

Rodenstock RSL 5000 digital – Slit Lamp

Exceptional optics. Outstanding reliability.
The RSL 5000digital combines Rodenstock’s renowned optical quality with an integrated high-end digital imaging system. Designed for a modern workflow, this slit lamp offers long-lasting LED illumination, advanced ergonomics, and powerful image acquisition and patient management functions.


Key Features

Exceptional Optics + LED

  • High-quality optical system for crystal-clear, high-resolution images.
  • LED illumination with ideal color temperature and uniform light distribution.
  • Energy-efficient, durable light source ensuring consistent performance.

5-Step Magnification

  • Magnification levels: 6x, 10x, 16x, 25x, 40x.
  • Enables precise examination of cornea, crystalline lens, retina, and anterior structures.

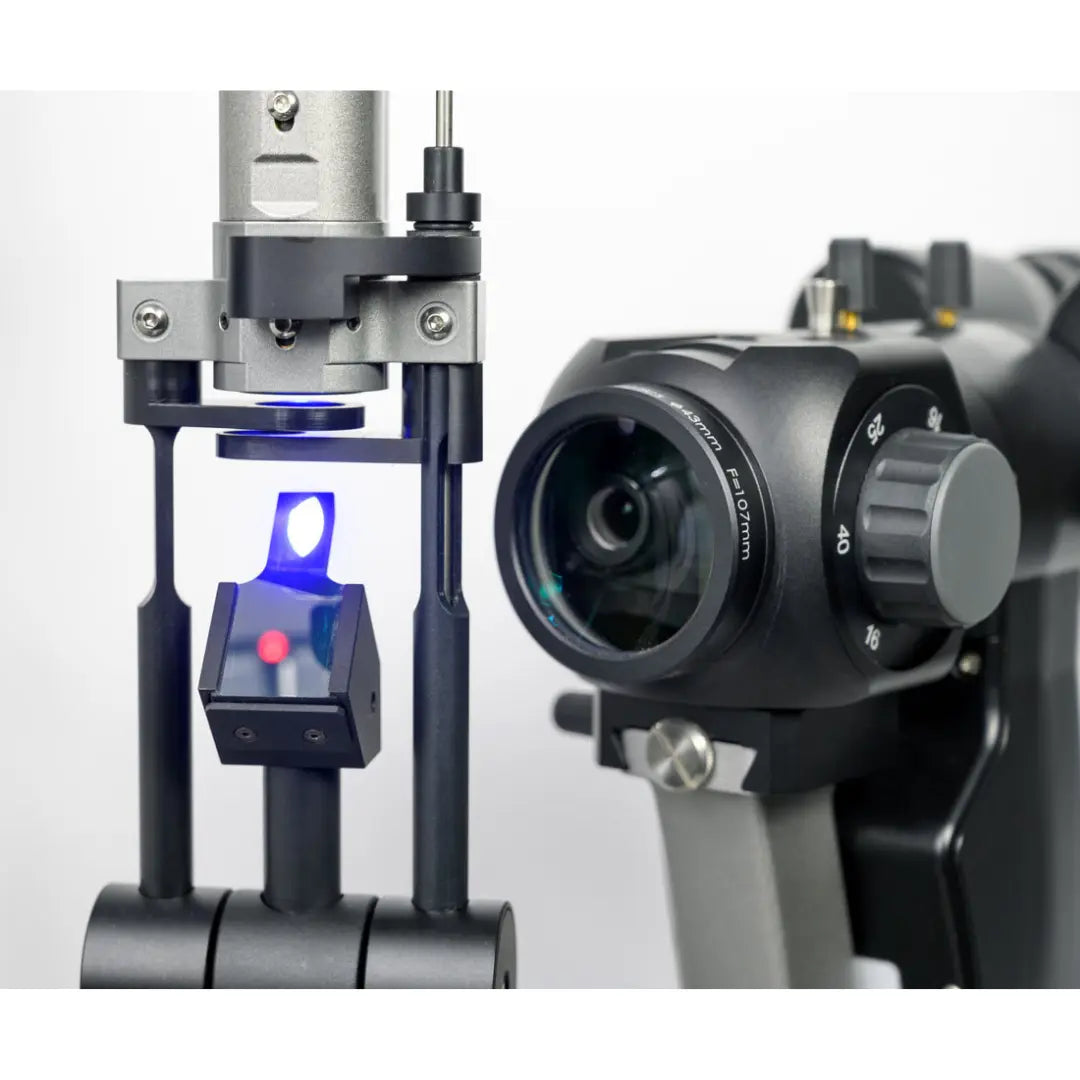

Digital Imaging System

  • Integrated high-resolution digital camera with beam splitter.
  • Additional features: background illumination, diffuser, and blue filter.

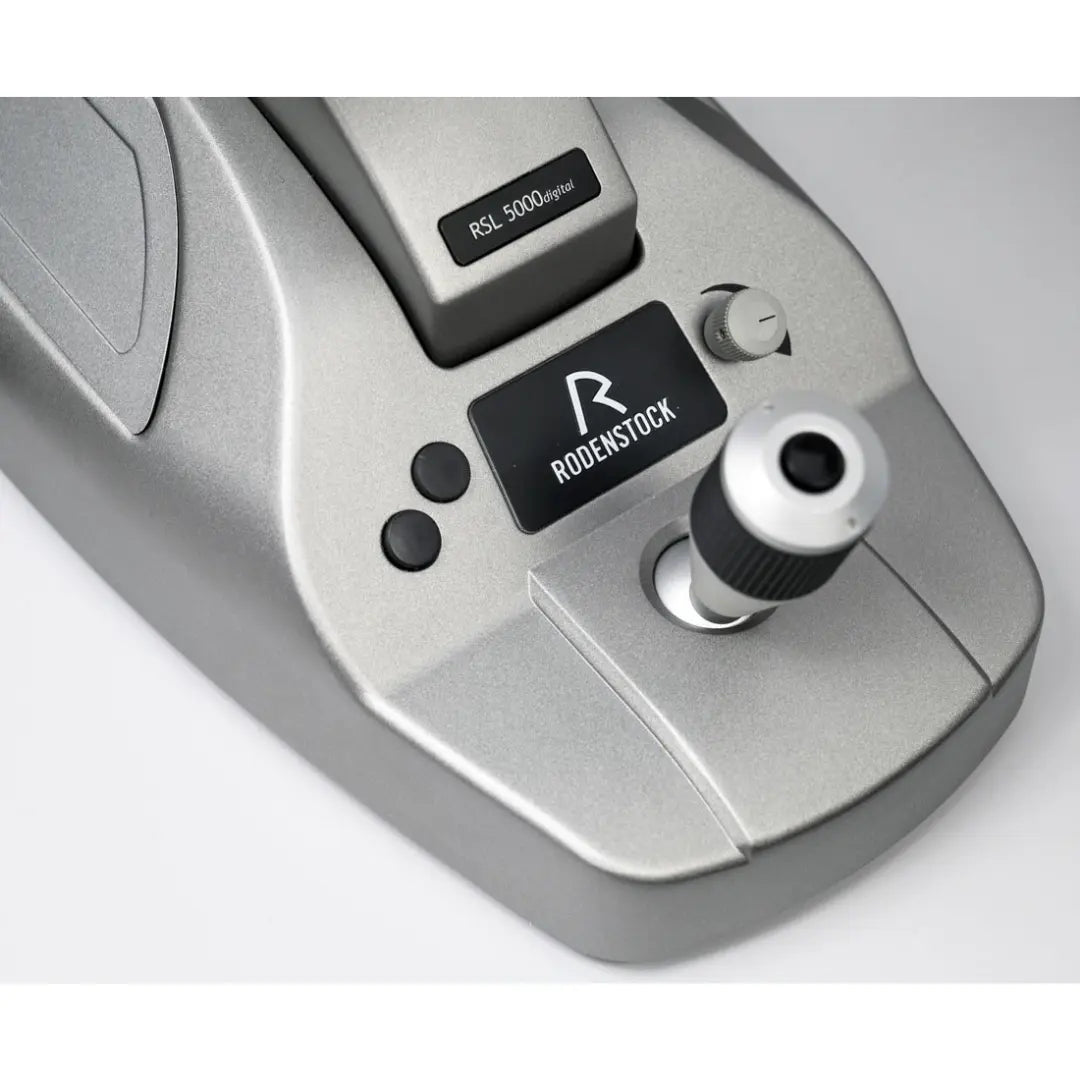

  • Easy image acquisition and video recording with joystick capture button.
  • Freeze-frame function to select the best shot.
  • Auto left/right detection and exposure control.
  • Real-time images and video for detailed clinical analysis.

Patient Management + Software

  • Fully compatible with Kapture software for integrated patient database.
  • Store, manage, and compare multiple images.
  • Edit, analyze, and generate professional reports with ease.

✅ The RSL 5000digital is the ultimate solution for eye-care professionals seeking a Haag-Streit type slit lamp with advanced digital integration, ensuring reliable diagnostics, smooth workflow, and superior patient care.


Specifications

OPTICAL SYSTEM — RSL 5000digital
Type Galilean converging binoculars 8°
Eyepiece ×12.5
Magnification Rotating drum change ×6, ×10, ×16, ×25, ×40
Field of view 34, 22, 14, 8.5, 5.5 mm
Interpupillary distance 49 to 77 mm
Objective lens focal distance 107 mm
Objective lens convergence angle 13°
SLIT PROJECTION AND BASE
Slit width 0–12 mm continuously adjustable
Slit length 1–12 mm continuously adjustable
Aperture diameters 0.2, 2, 3, 5, 9, 12 mm circle, (1–12 mm continuously variable), 1 mm square
Filters Yellow, clear, red-free, neutral density, diffuser, blue, IR heat-absorbing filter
Slit angle ±90° continuous
Slit rotation ±180° with reference scale
Base travel 25 mm Z-axis, 107 mm X-axis, 110 mm Y-axis
Horizontal fine adjustment 12 mm
Fixation lamp Red LED
Light source White LED
DIMENSIONS AND WEIGHT
Dimensions (W×D×H) 350 × 410 × 702 mm
Weight 21 kg
POWER SUPPLY
Power supply unit Switching power supply, 100–240 V input, complies with EN 60 6001
Power supply output 12 V DC / 2.5 A IEC / EN 60 6001
CAMERA SYSTEM — RSL 5000digital
Resolution 3 MP / 2048 × 1536
Connectivity USB 3.0
Sensor type CMOS
Chip size 1/1.8″
Framerate Up to 57 fps
