Product description

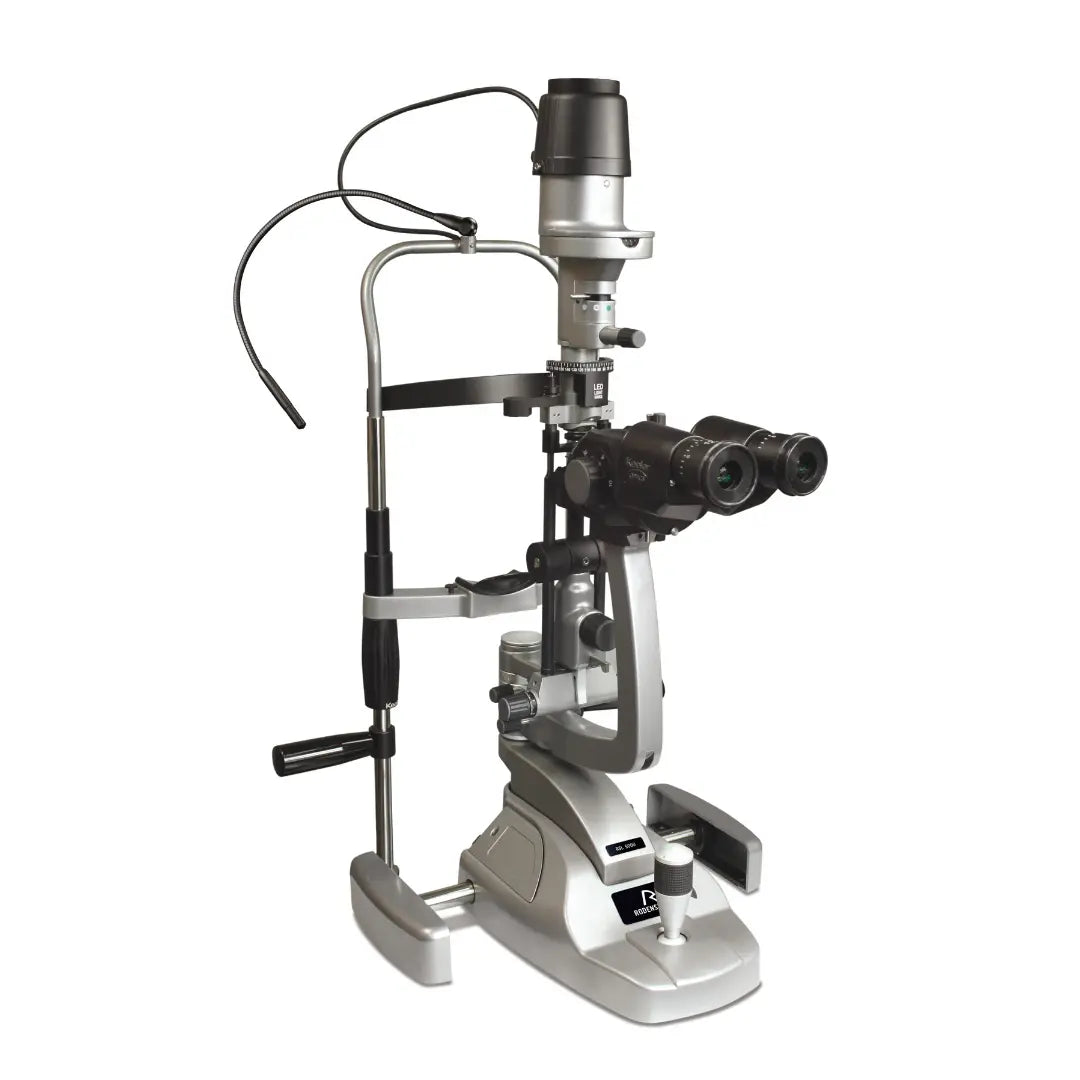

Rodenstock RSL 5000 – Slit Lamp Haag-Streit Type

Exceptional optics. Outstanding reliability.
The RSL 5000 combines Rodenstock’s world-class optical quality with advanced ergonomics and long-lasting LED illumination. Designed for modern ophthalmic examinations, this slit lamp ensures precise diagnostics, smooth operation, and robust reliability in daily practice.


Key Features

Exceptional Optics + LED

  • High-quality optical system providing sharp, high-resolution images.
  • LED illumination with ideal color temperature and uniform light distribution.
  • Energy-efficient and long-lasting light source.

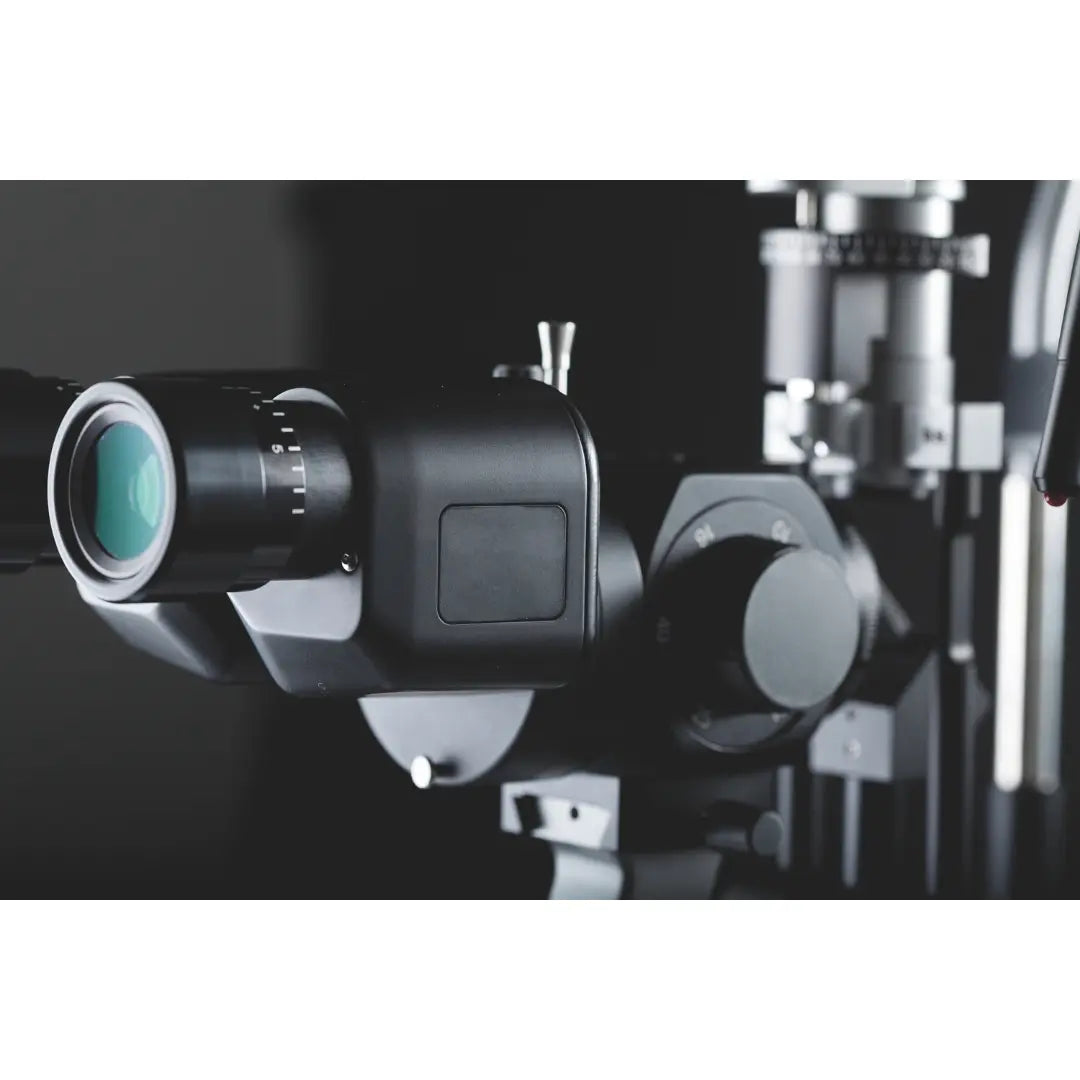

5-Step Magnification

  • Magnification levels: 6x, 10x, 16x, 25x, and 40x.
  • Enables detailed examination of cornea, lens, retina, and anterior structures.

Ergonomic Control

  • Conveniently placed illumination control for intuitive operation.
  • Smooth handling and high-precision mechanical components.
  • Designed for fatigue-free use during long clinical sessions.

Digital Upgrade Option

  • Can be upgraded to the RSL 5000digital version.
  • Integration of a high-resolution digital camera system with beam splitter.
  • Includes background illumination, diffuser, and blue filter.
  • Compatible with Kapture software for patient data management, image comparison, and real-time video analysis.

✅ The RSL 5000 is the perfect choice for professionals seeking a Haag-Streit type slit lamp with outstanding optics, ergonomic design, and the option of advanced digital integration for complete diagnostic versatility.


Specifications

OPTICAL SYSTEM — RSL 5000
Type Galilean converging binoculars 8°

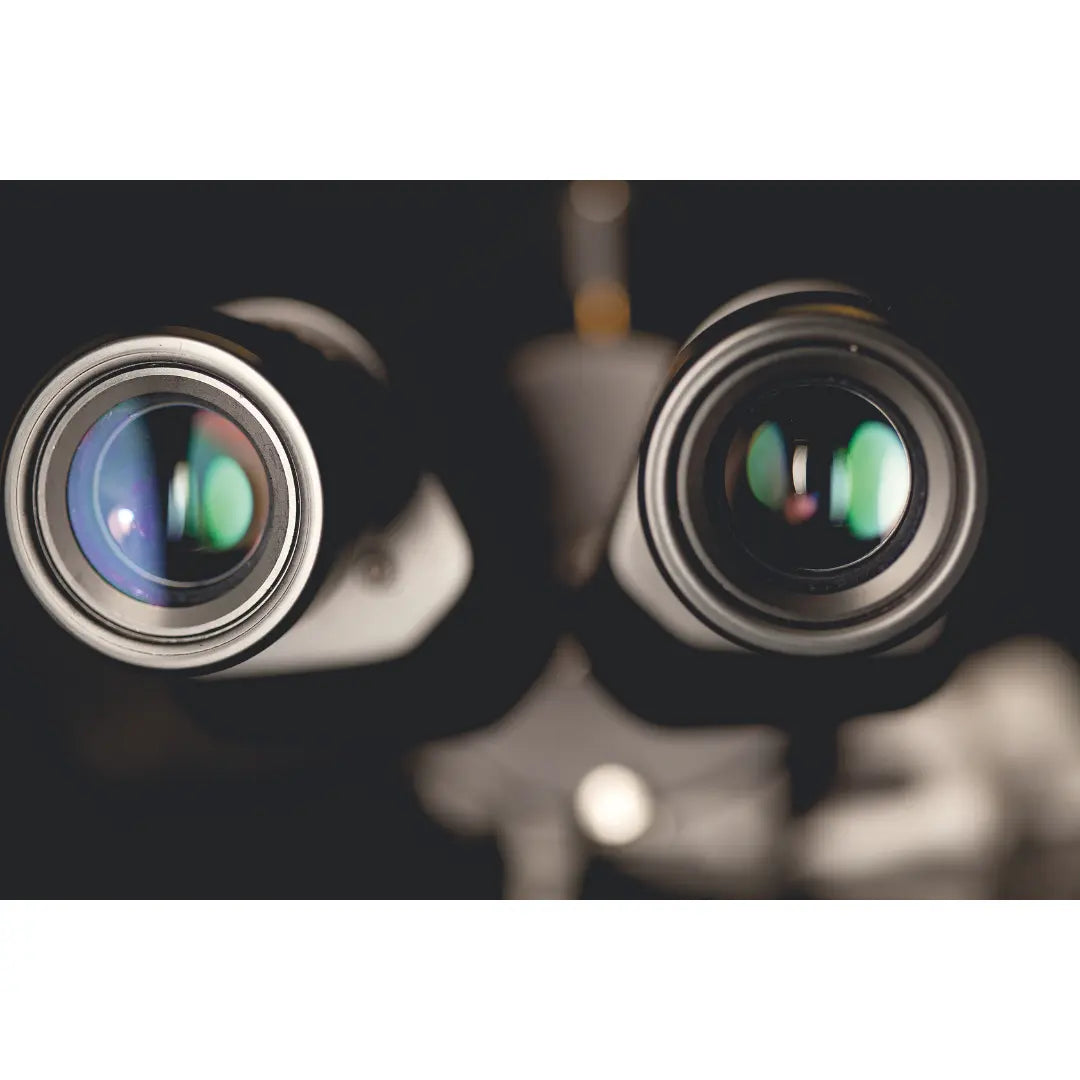

Eyepiece ×12.5

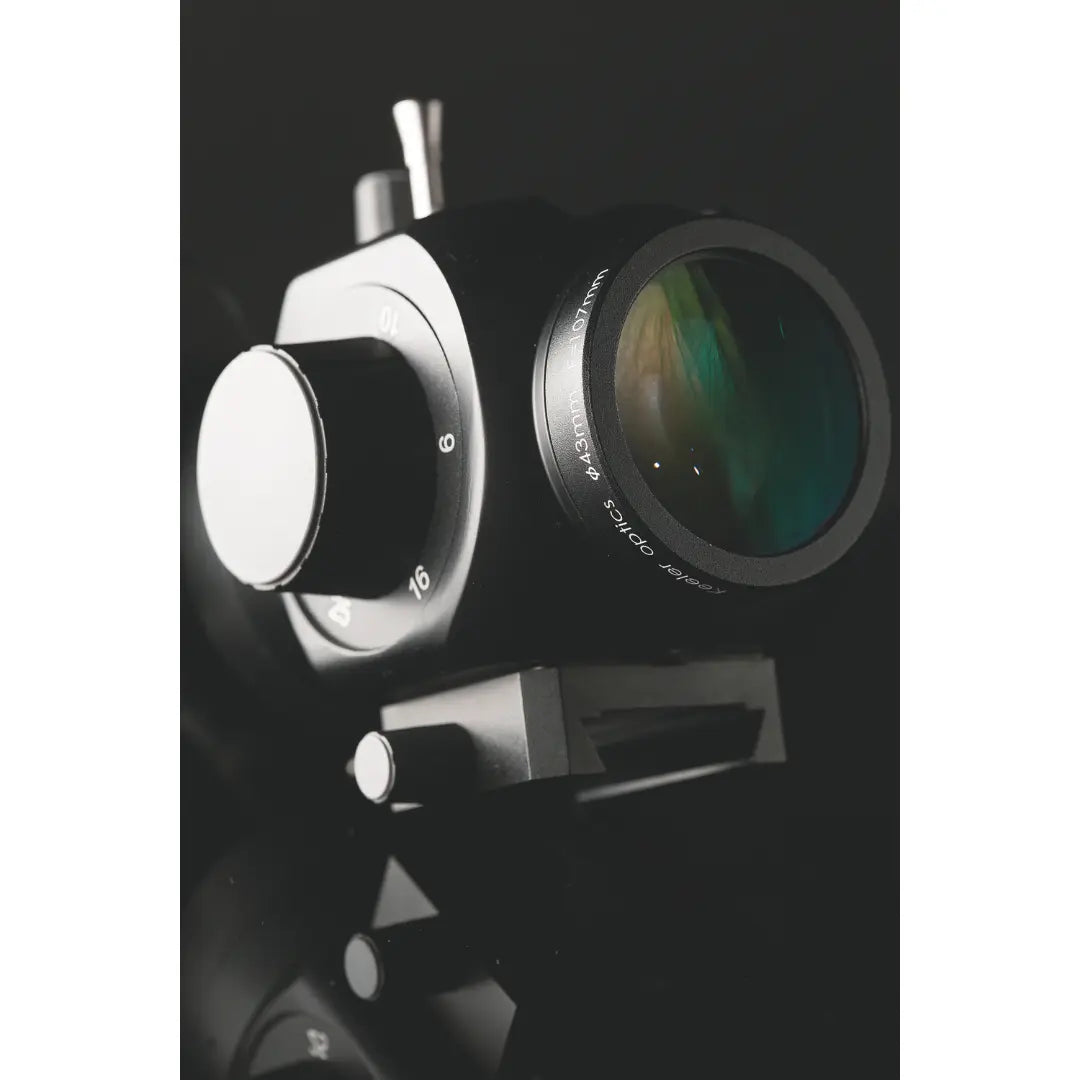

Magnification Rotating drum change ×6, ×10, ×16, ×25, ×40
Field of view 34, 22, 14, 8.5, 5.5 mm
Interpupillary distance 49 to 77 mm
Objective lens focal distance 107 mm
Objective lens convergence angle 13°
SLIT PROJECTION AND BASE
Slit width 0–12 mm continuously adjustable
Slit length 1–12 mm continuously adjustable
Aperture diameters 0.2, 2, 3, 5, 9, 12 mm circle, 1 mm square
Filters Yellow, clear, red-free, neutral density, diffuser, blue, IR heat-absorbing filter
Slit angle ±90° continuous
Slit rotation ±180° with reference scale
Base travel 25 mm Z-axis, 107 mm X-axis, 110 mm Y-axis
Horizontal fine adjustment 12 mm
Fixation lamp Red LED

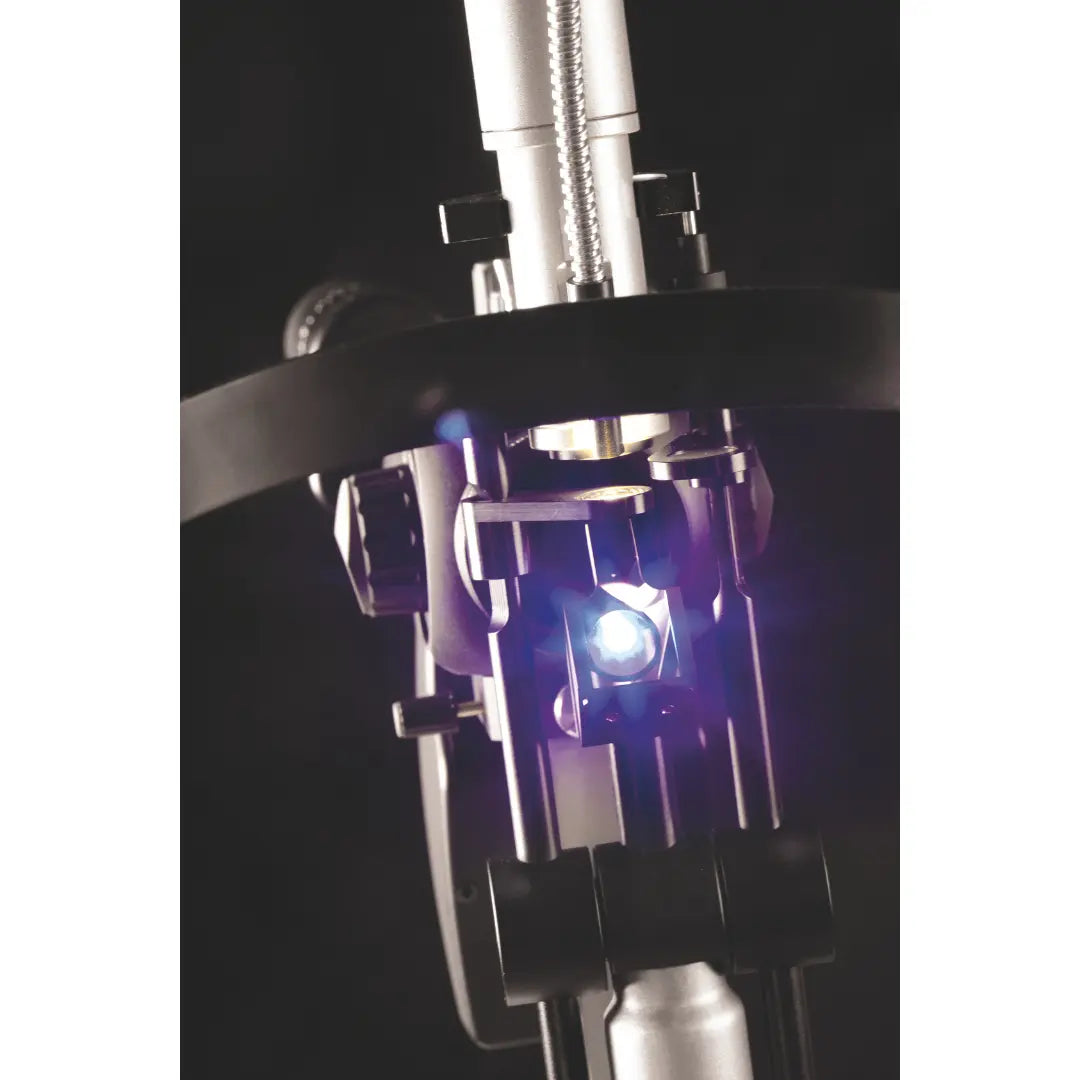

Light source White LED
DIMENSIONS AND WEIGHT
Dimensions (W×D×H) 350 × 410 × 702 mm
Weight 21 kg
POWER SUPPLY
Power supply unit Switching power supply, 100–240 V input, complies with EN 60 6001
Power supply output 12 V DC / 2.5 A IEC / EN 60 6001
