300-980 | RSL 4500 5 magnification Slit Lamp Zeiss Style

300-980 | RSL 4500 5 magnification Slit Lamp Zeiss Style

Regular price $8,191.00
Sale price $8,191.00 Regular price
Unit price
Product description

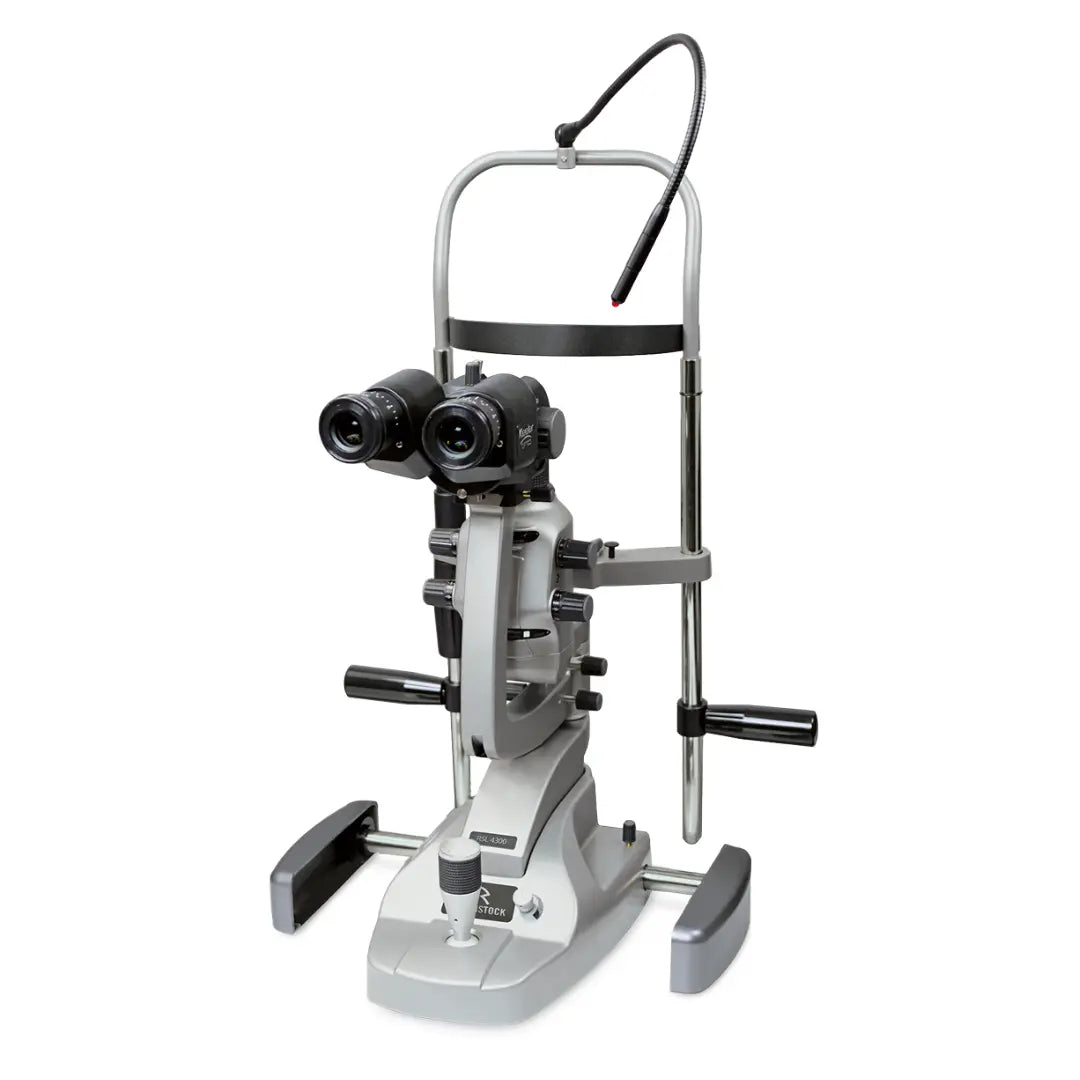

Rodenstock RSL 4500 – Slit Lamp (5-Step Magnification)

Exceptional optics. Outstanding reliability.
The RSL 4500 is a premium slit lamp designed to deliver high diagnostic precision with ergonomic handling and long-lasting LED illumination. Combining Rodenstock’s tradition of optical excellence with modern design, it ensures reliable performance for daily clinical use.


Key Features

Exceptional Optics + LED

  • High-quality optics for sharp, detailed imaging.
  • LED illumination with natural color temperature and homogeneous lighting.
  • Energy-efficient light source with long lifespan.

5-Step Magnification

  • Magnification levels: 6x, 10x, 16x, 25x, 40x.
  • Provides crystal-clear images for examining every ocular detail.

Ergonomic Operation

  • Smooth joystick control for comfortable handling.
  • Well-placed illumination controls for easy adjustments during examinations.
  • Robust and precise mechanics ensure consistent reliability.

Fully Equipped

  • Integrated yellow filter for enhanced imaging.
  • Wide range of accessory and filter options available.

The RSL 4500 (5-step) delivers a perfect balance of precision optics, ergonomic operation, and modern LED illumination — making it a dependable choice for comprehensive eye examinations.


Specifications

OPTICAL SYSTEM — RSL 4500
Type Parallel binoculars
Magnification Rotating drum change: ×6, ×10, ×16, ×25, ×40
Eyepiece ×12.5
Field of view 34, 22, 14, 8.5, 5.5 mm
Interpupillary distance 49 to 77 mm
Objective lens focal distance 107 mm
Objective lens convergence angle 13°
SLIT PROJECTION AND BASE
Slit width 0–14 mm continuously variable
Slit length 14 mm (0–14 mm continuously variable)
Aperture diameters 0.2, 1 mm square, 2, 3, 5, 9, 14 mm
Filters Clear, red-free, neutral density, diffuser, blue, IR heat absorbing filter permanently installed
Slit angle ±90° continuous
Slit rotation ±90° with reference scale
Base travel 25 mm Z-axis, 107 mm X-axis, 110 mm Y-axis
Horizontal fine adjustment 12 mm
Fixation lamp LED
Light source LED / 12 V
ADDITIONAL FEATURES
Auxiliary diffuser Yellow filter integrated to optical body
Options TAT-100R optional available
DIMENSIONS AND WEIGHT
Dimensions (W×D×H) 350 × 432 × 604 mm
Weight ≈19 kg
POWER SUPPLY
Power supply unit Switch mode (100–240 V input) ±10%, multi plug compliant to EN 60601-1, EN 61000-6-2, EN 61000-6-3
Power supply output 12 V DC / 2.5 A IEC / EN 60 601
