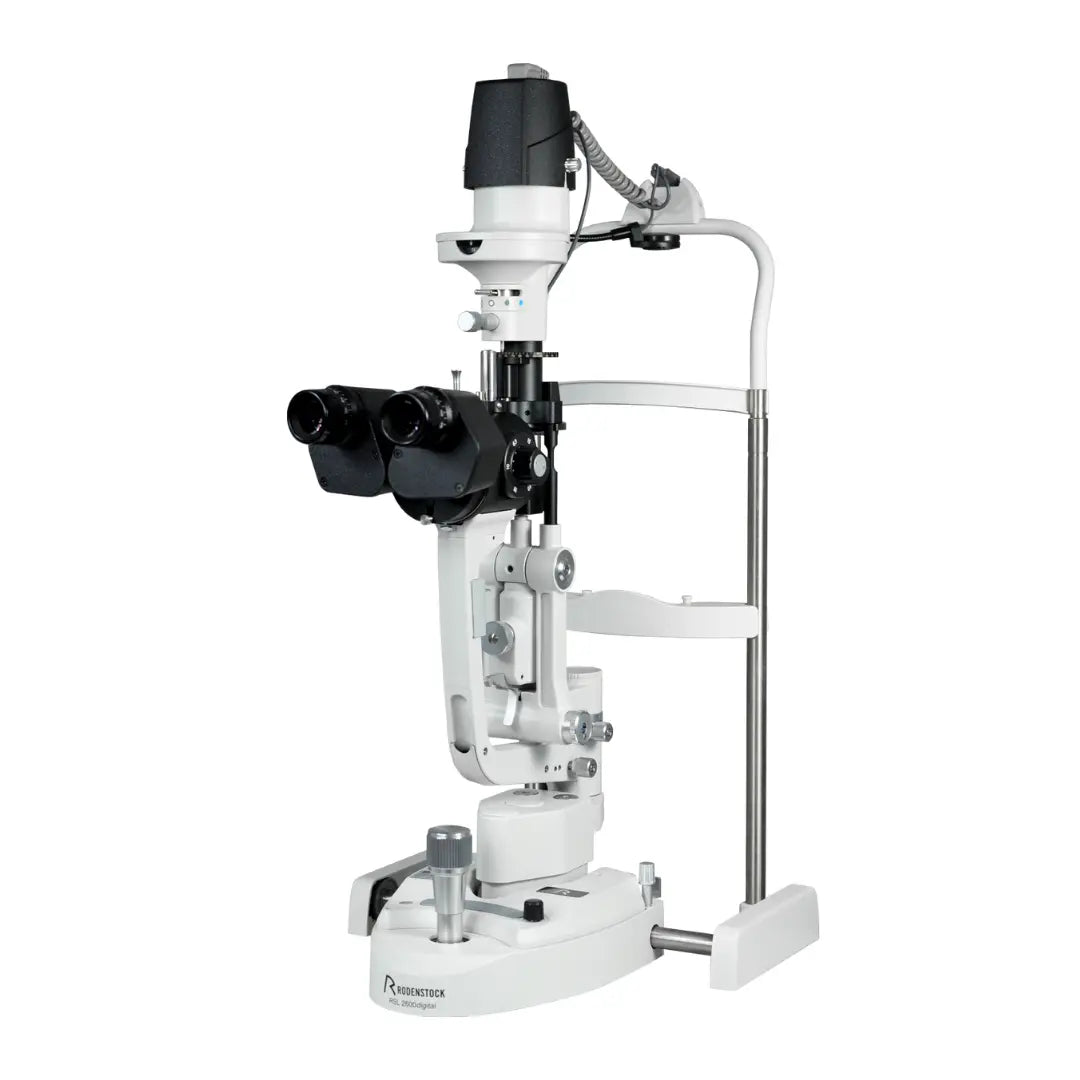

Rodenstock RSL 2600 – Slit Lamp (HS-type)
Advanced slit lamp for detailed corneal and retinal examinations.
The RSL 2600 is designed to deliver excellent image quality, ergonomic handling, and clinical flexibility. With HD optics, a powerful illumination system, and a full range of integrated filters, it provides everything needed for precise ophthalmic diagnostics.
Key Benefits
Ideal Value
High-performance optics at an affordable price point — designed to combine reliability and efficiency.
Excellent Quality
Crystal-clear HD optical system with resolution up to 200 lp/mm (2,700 N lp/mm).
Easy to Operate
User-friendly construction and smooth workflow for daily clinical use.
Expertise & Education
Supports precise analysis and patient education when combined with digital imaging.
Fully Equipped
Comes with a built-in yellow filter and a complete range of optical filters.
Connectivity
Compatible with PRO 500 and PRO 1000/EVO systems.
Optical & Mechanical Features
Illumination System
- Long-life, economical LED lamp
- High illumination intensity with natural color temperature
- Inclination option for optimal observation and analysis of cornea and retina
HD Optical System with 5-Step Magnification
- Magnification levels: 6x, 10x, 16x, 25x, 40x
- Resolution up to 200 lp/mm (2,700 N lp/mm)
- Reveals fine details of ocular structures with outstanding clarity
All-Encompassing Filter System
- Built-in yellow filter
- Red-free, neutral density, cobalt blue, and heat-absorbing filters
- Diffuser included
Digital Imaging Option
The RSL 2600 can be configured as the RSL 2600digital, featuring:
- Integrated digital camera system
- Beam splitter and USB connection
- Eyeview software (Windows compatible)
- HDMI output for external monitor
- Infrared illumination for Meibomian gland analysis
- Tools for image editing, brightness/contrast adjustment, zoom, and reporting
✅ The Rodenstock RSL 2600 combines advanced optical performance, ergonomic design, and digital upgradeability — making it a powerful tool for modern eye care practices.
Specifications
| OPTICAL SYSTEM — RSL 2600 | |
| Type | Galilean converging binoculars 10° |
| Magnification | 5-step rotating drum change: 6×, 10×, 16×, 25×, 40× |
| Eyepiece | 12.5× |
| Field of view | 36.2, 22.3, 14.8, 8.9, 5.7 mm |
| Interpupillary distance | 52 to 80 mm |
| Dioptre adjustment | −8 D to +8 D |
| SLIT PROJECTION AND BASE | |
| Slit width | 0–14 mm continuously variable |
| Slit length | 1–14 mm continuously variable |
| Aperture diameters | 0.2, 1, 2, 3, 5, 10, 14 mm |
| Filters | Yellow, red-free, neutral density, blue, IR heat-absorbing filter, diffuser |
| Slit angle | 0° to 180° |
| Slit inclination | 5°, 10°, 15°, 20° |
| Base travel | 30 mm Z-axis, 115 mm X-axis, 110 mm Y-axis |
| Chin rest vertical movement | 80 mm |
| Horizontal fine adjustment | 12 mm |
| Fixation lamp | Red LED |
| Light source | White LED |
| Luminance | ≥150 kLx |
| DIMENSIONS AND WEIGHT | |
| Dimensions (W×D×H) | 330 × 390–460 × 650 mm |
| Weight | 17 kg |
| POWER SUPPLY | |
| Power supply input | 100–240 V, 50/60 Hz |
| Power supply output | 12–15 V DC |
| CAMERA SYSTEM — RSL 2600digital | |
| Resolution | 5 MP / 2592 × 1944 |
| Connectivity | USB 3.0 |
| Photo format | JPEG |
| Video format | MP4 H.264 |
| Chip size | 1/1.8″ |
| Frame rate | 25 fps |
