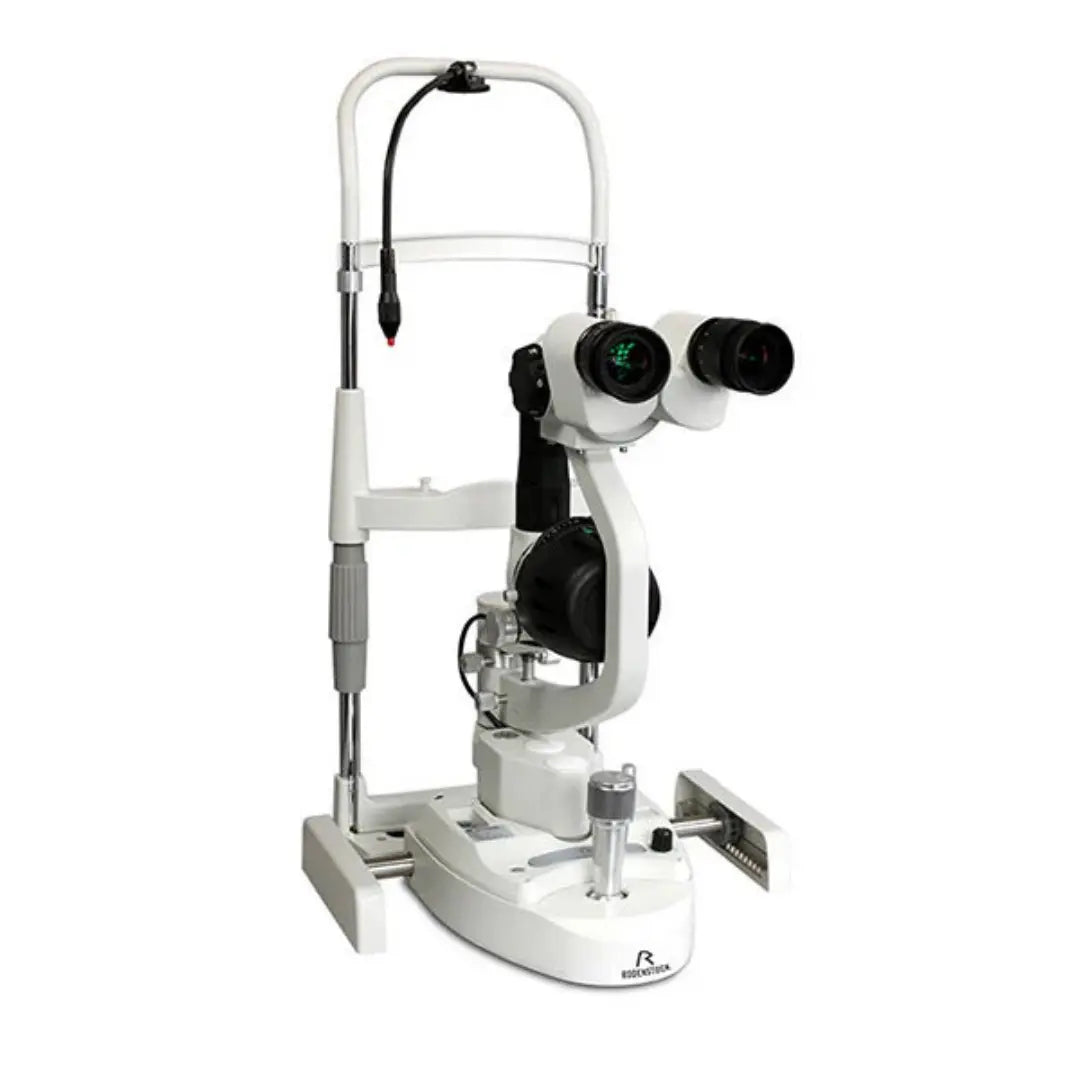

RSL 2000 Slit Lamp Zeis Type

Click here to download Brochure



The Rodenstock RSL 2000 series leaves nothing to be desired. Easy and ergonomic handling, high quality, accuracy and reliability are guaranteed. Our slit lamps are equipped with a complete filter setup like heat-absorbing filter, ND fi lter, red-free filter and cobalt blue filter. Also many accessories for example yellow filter module, polarised
filter module, applanation tonometer, measuring eyepiece, mounting plate provides the complete slit lamp solution for you.

• Quality optics
• LED illumination
• Rotating drum with 5-step magnification
• Multi integrated filters
• Ergonomic operation



Ergonomic operation
You can control the illumination knob and joystick simultaneously with one hand. The HDMI output can be used to connect the RSL 2500digital with a monitor. Share the live eye examination with other people and show pictures of the examination to your patient. This creates a comfortable workflow.

Quality optics in combination with LED illumination
High quality optics provide a very sharp and homogeneous slit and aperture to see all kinds of pathologies clearly.
Our LED lamp has a low colour temperature and high illumination intensity. The LED lamp has a longer life span and consumes little energy. To bring it to perfection, the high attention to mechanical parts provide a comfortable handling and smooth operation.

Digital imaging system and patient management
The RSL 2500digital has an integrated high-resolution digital camera which ensures images of the highest quality. Also fl uorecine photos and real time videos are possible. The patient management software allows you to compare several images at one time or change the contrast and brightness of the images.



SPECIFICATIONS:

Microscope
Type ................................... Galilean-Type
Magnifi cation change ........ 5 Magnifications
Eyepieces ........................... 12.5 x
Angle between eyepieces ... 13º
Total magnifi cation ratio .... 6x, 10x, 16x, 25x, 40x
Pupillary adjustment ........... 52 mm~78 mm
Diopter adjustment ............ ±6D
Field of view ...................... 40x (√ò5.5 mm), 25x (√ò8.5 mm), 16x (√ò13.5 mm), 10x (√ò22 mm), 6x (√ò34.7 mm)

Slit illumination
Slit width ........................... Continuously variable from 0 to 14 mm
(at 14 mm, slit becomes a circle)
Slit length .......................... Continuously variable from 1 to 14 mm
Aperture diameters ............ √ò14 mm, √ò8 mm, √ò3.5 mm, √ò0.2 mm
Slit angle ............................ 0°-180°
Filters ................................. Heat-absorbing filter, red-free fi lter,
cobalt blue filter
Luminance ......................... 60klx

Base
Longitudinal movement ..... 115 mm
Lateral movement .............. 110 mm
Fine base movement .......... 15 mm
Vertical movement ............. 30 mm

Chin-rest
Vertical movement ............. 80 mm
Fixation target .................... LED
Dimension & weight
Dimension WDH ................ 770 x 470 x 570 mm
Gross weight: .................... 23 kg
Net weight: ........................ 15 kg

Power requirements
Input: ................................. 12V - 15V / 4A
Fixation: ............................. 5V - 20mA
