Product description

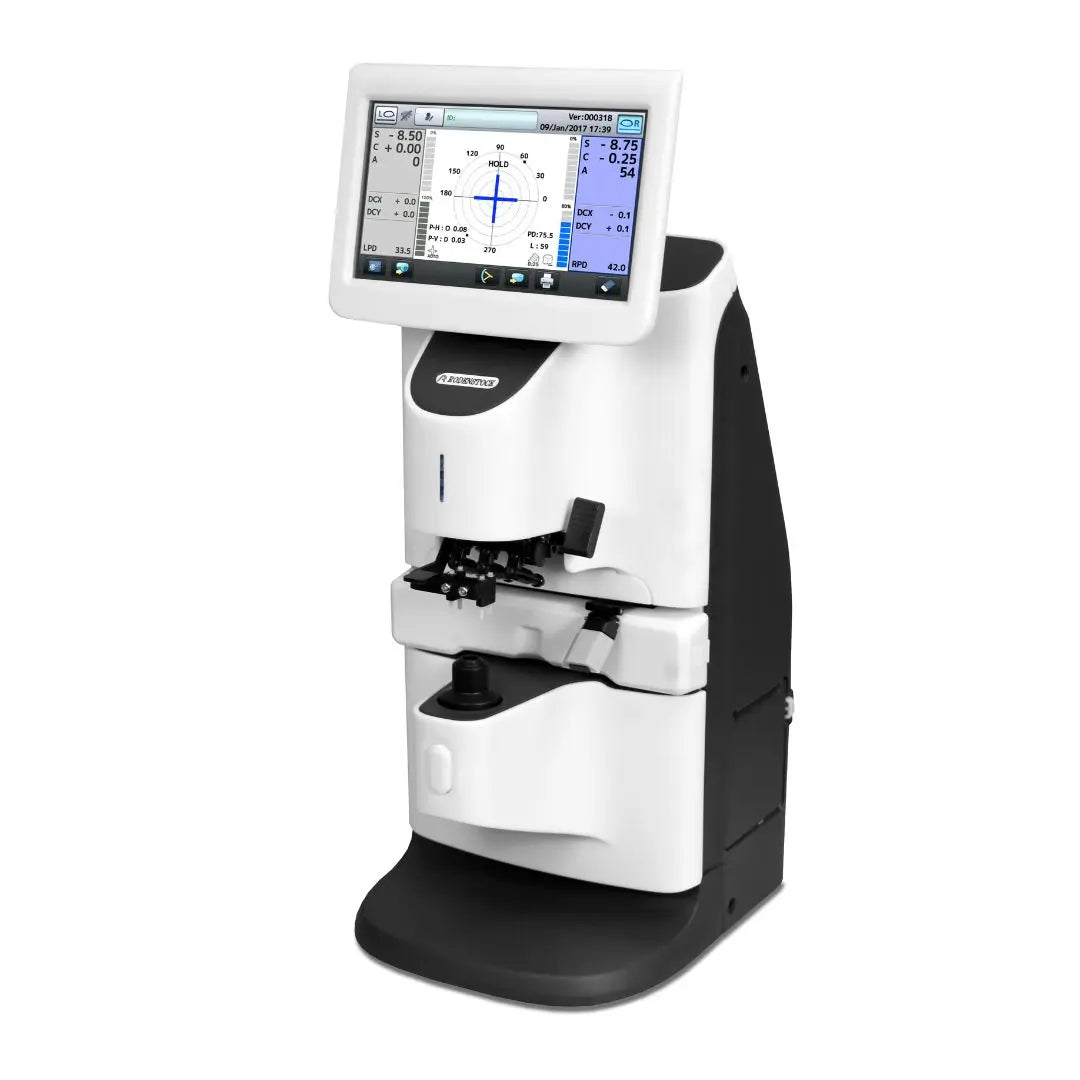

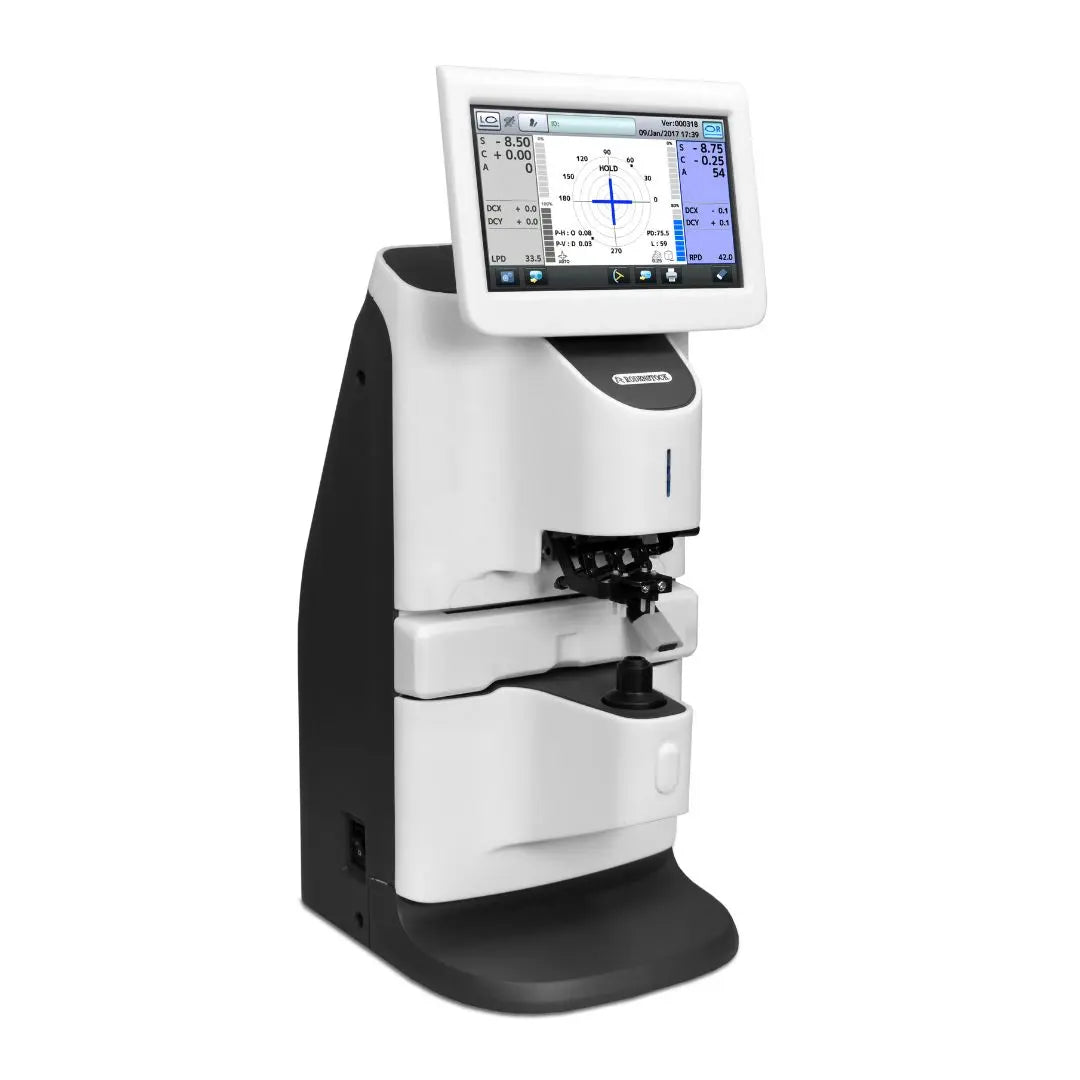

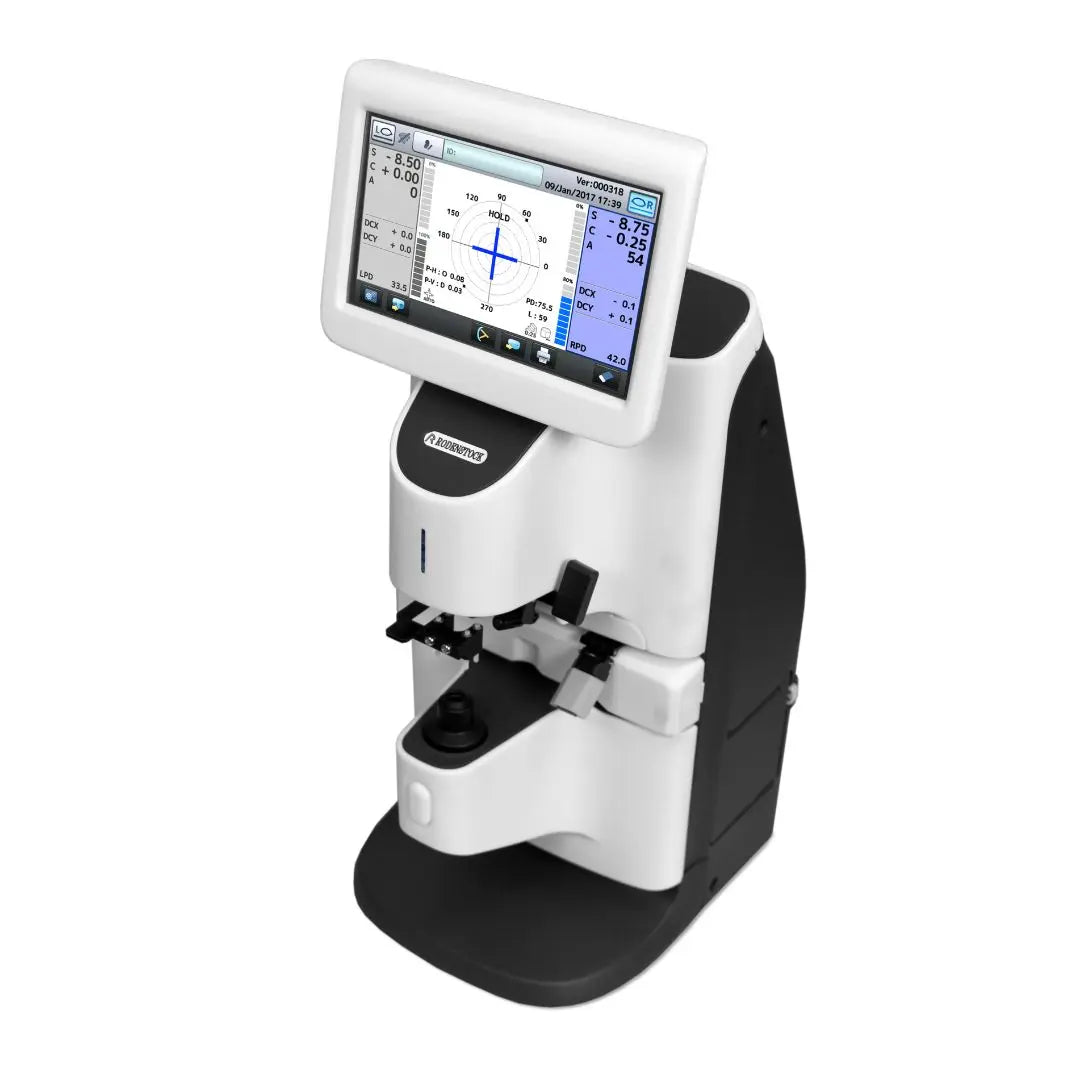

Rodenstock AL 6600 – Automated Lensmeter
Powerful wavefront lens analysis.
The AL 6600 combines a 117-point Hartmann wavefront sensor with a large 7″ touch screen to deliver fast, reliable lens verification. It measures optical power together with UV/blue-light transmittance, recognizes lens marks with on-screen grids, and adds an exclusive Simple Power Mapping mode for multifocal visualization. With Wi-Fi/LAN/RS-232C connectivity and an integrated thermal printer, it fits seamlessly into modern dispensing workflows.
Key Features
Wavefront accuracy
- Hartmann wavefront sensor (117 points) for precise readings on all common lens types.
- Green LED measuring light—no Abbe compensation needed for high-index lenses.
Measure more, explain better
- Simultaneous UV & blue-light transmittance shown alongside optical power.
- Lens-mark recognition with switchable grid patterns on the 7″ touch panel.
- Simple Power Mapping (AL 6600 only) visualizes multifocal progression zones; use PD and L-value for best results.
Fast, connected workflow
- Built-in thermal printer (auto-cut width 58 mm) for clean hand-outs.
- Wi-Fi, LAN (Ethernet), USB 3.0, and RS-232C for easy integration.
- PD measurement from 40 to 86 mm in 0.5 mm steps.
Specifications
| MEASUREMENT RANGE | |
| Spherical power (SPH) | ±25.00 D |
| Cylindrical power (CYL) | ±10.00 D |
| Axial angle (AXIS) | 0° to 180° |
| Addition power | −2.00 to +10.00 D |
| Prism power | 0 to 15 Δ |
| MEASUREMENT INCREMENTS | |
| Dioptre steps | 0.01 / 0.06 / 0.12 / 0.25 D |
| Prism steps | 0.01 / 0.06 / 0.12 / 0.25 Δ |
| MEASUREMENT PARAMETERS | |
| Wavelength (measuring light) | 535 nm |
| Peak UV transmittance reference | 375 nm |
| Peak blue-light transmittance reference | 465 nm |
| Lens diameter | Ø20 to 120 mm (≥ Ø5 mm for CL) |
| Pupillary distance (PD) | 40 to 86 mm, step 0.5 mm |
| Measurement objects | Spectacle lenses, contact lenses, optical lenses |
| HARDWARE & I/O | |
| Display | 7″ colour TFT with touch panel |
| Printer | Thermal printer, 58 mm paper |
| External communication | Wi-Fi, RS-232C, USB 3.0, Ethernet (LAN) |
| DIMENSIONS & ELECTRICAL REQUIREMENTS | |
| Dimensions (W × D × H) | 188 × 240 × 430 mm (when LCD is tilted) |
| Weight | Approx. 5.5 kg |
| Voltage | AC 100 V–240 V |
| Frequency | 50/60 Hz |
| Power consumption | 40–50 VA |
