Product description

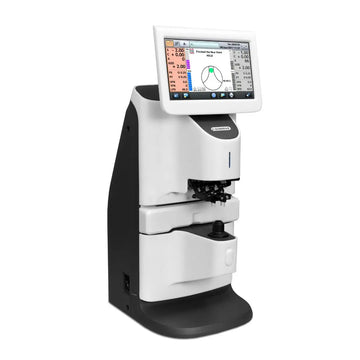

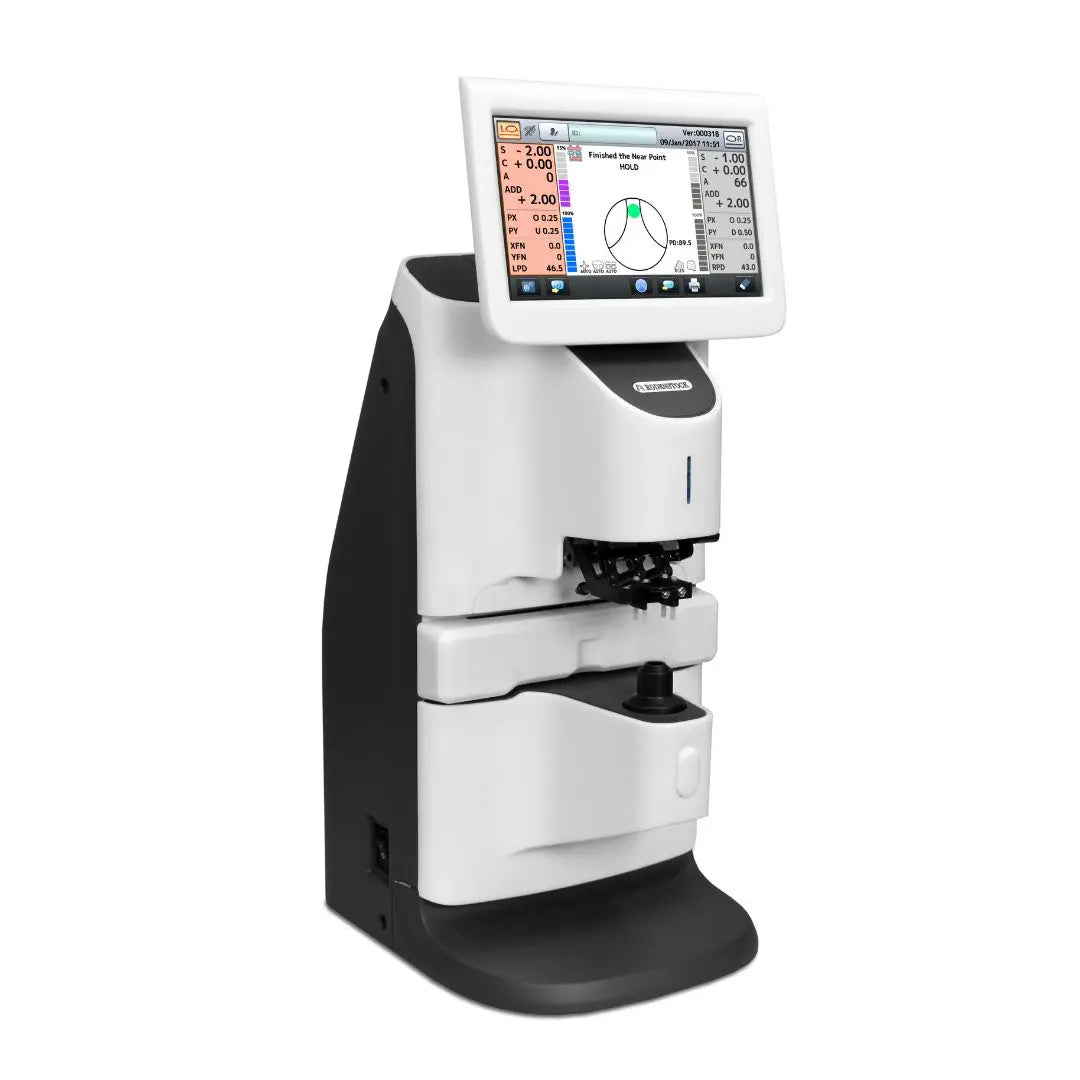

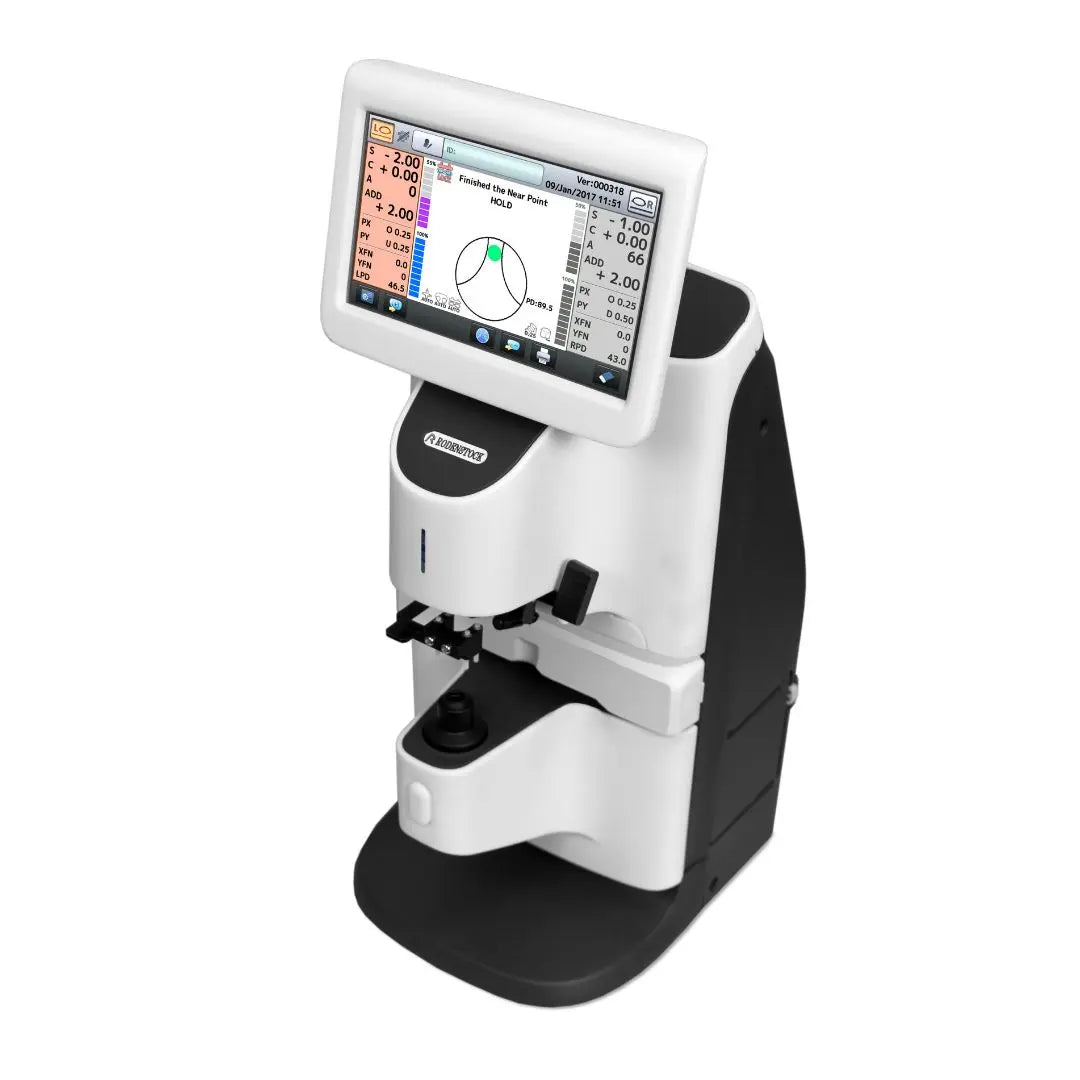

Rodenstock AL 6400 – Automated Lensmeter
Powerful wavefront lens analysis.
The AL 6400 brings reliable, fast lens verification to your bench. Its 117-point Hartmann wavefront sensor, 7″ touch screen and automatic lens recognition make everyday measurements simple and consistent. Simultaneous UV/blue-light transmittance with power readout helps you educate patients and document results with a built-in thermal printer.
Key Features
Wavefront accuracy
- Hartmann wavefront sensor (117 points) for precise readings across lens types.
- Green LED measuring light supports high-index lenses without Abbe compensation.
Fast, easy operation
- Automatic lens type recognition with clear on-screen guidance.
- 7″ colour touch display for smooth, intuitive handling.
- Built-in thermal printer (58 mm) for clean records.
Patient-friendly extras
- Simultaneous UV & blue-light transmittance shown alongside optical power.
- Lens-mark recognition with grid patterns to visualize multifocal alignment.
Connectivity
- RS-232C, USB 3.0, and Ethernet outputs for easy data integration.
Note: PD measurement and Simple Power Mapping are features of the AL 6600 model.
Specifications
| MEASUREMENT RANGE | |
| Spherical power (SPH) | ±25.00 D |
| Cylindrical power (CYL) | ±10.00 D |
| Axial angle (AXIS) | 0° to 180° |
| Addition power | −2.00 to +10.00 D |
| Prism power | 0 to 15 Δ |
| MEASUREMENT INCREMENTS | |
| Dioptre steps | 0.01 / 0.06 / 0.12 / 0.25 D |
| Prism steps | 0.01 / 0.06 / 0.12 / 0.25 Δ |
| MEASUREMENT PARAMETERS | |
| Wavelength | 535 nm |
| Lens diameter | Ø20 to 120 mm (≥ Ø5 mm for CL) |
| Measurement objects | Spectacle lenses, contact lenses, optical lenses |
| Transmittance of UV (peak) | 375 nm |
| Transmittance of blue light (peak) | 465 nm |
| HARDWARE & I/O | |
| Display | 7″ colour TFT with touch panel |
| Printer | Thermal printer, 58 mm paper |
| External communication | RS-232C, USB 3.0, Ethernet |
| DIMENSIONS & ELECTRICAL REQUIREMENTS | |
| Dimensions (W × D × H) | 188 × 240 × 430 mm (LCD tilted) |
| Weight | Approx. 5.5 kg |
| Voltage | AC 100 V–240 V |
| Frequency | 50/60 Hz |
| Power consumption | 40–50 VA |
