Product description

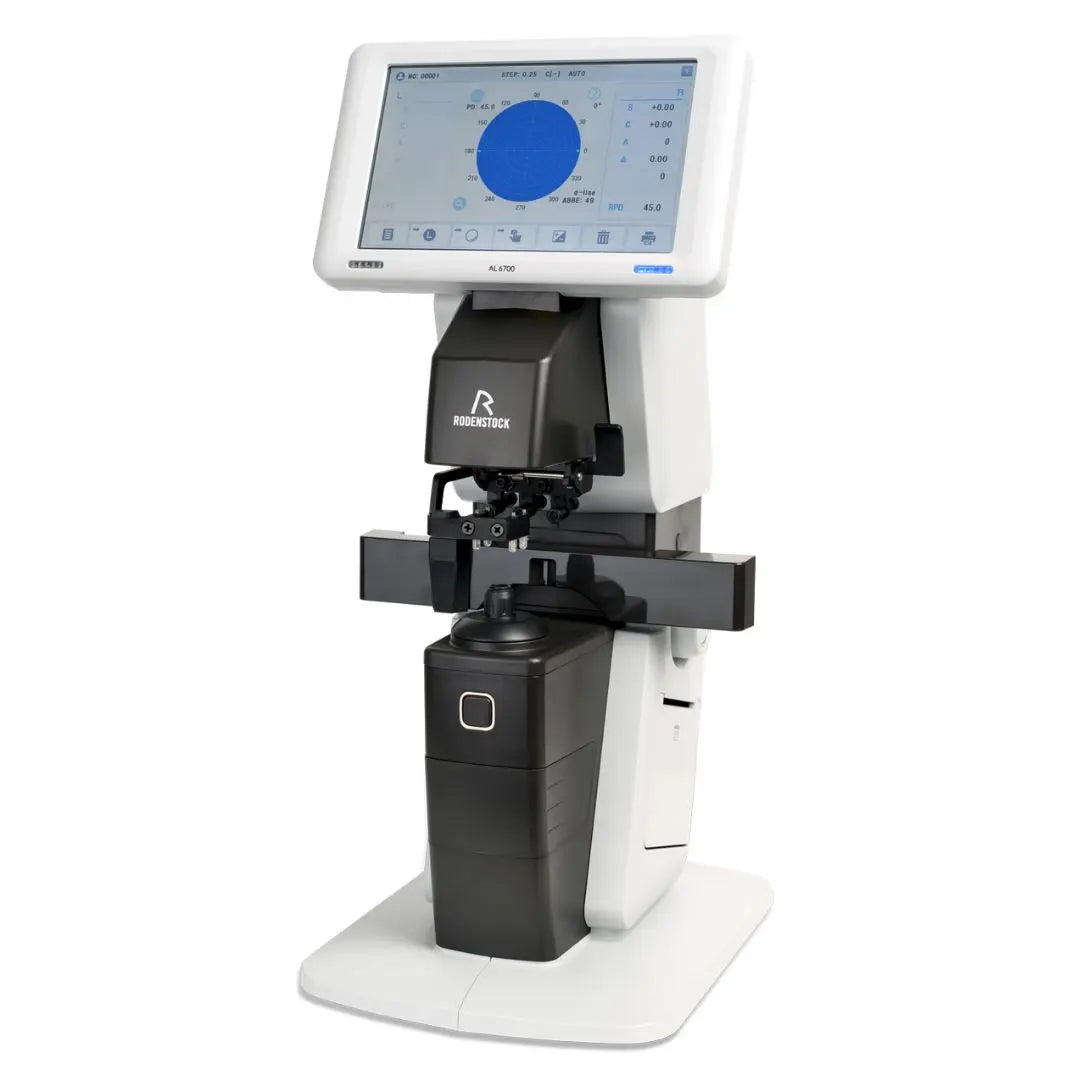

Rodenstock AL 6700 – Automated Lensmeter
High-precision readings with smarter workflow.
The AL 6700 pairs Shack–Hartmann wavefront sensing with a continuously tiltable 7″ touch screen, auto lens recognition, and a built-in thermal printer with auto-cut. It adds Wi-Fi connectivity and PD measurement (45–90 mm) versus the AL 6500—so you can verify glasses faster, document cleanly, and connect easily to your refraction setup.
Key Features
Precision & consistency
- Shack–Hartmann wavefront sensor (145 points) with green measuring light for accurate power readings.
- Abbe compensation and choice of e-line/d-line references.
Touch-first, easy to operate

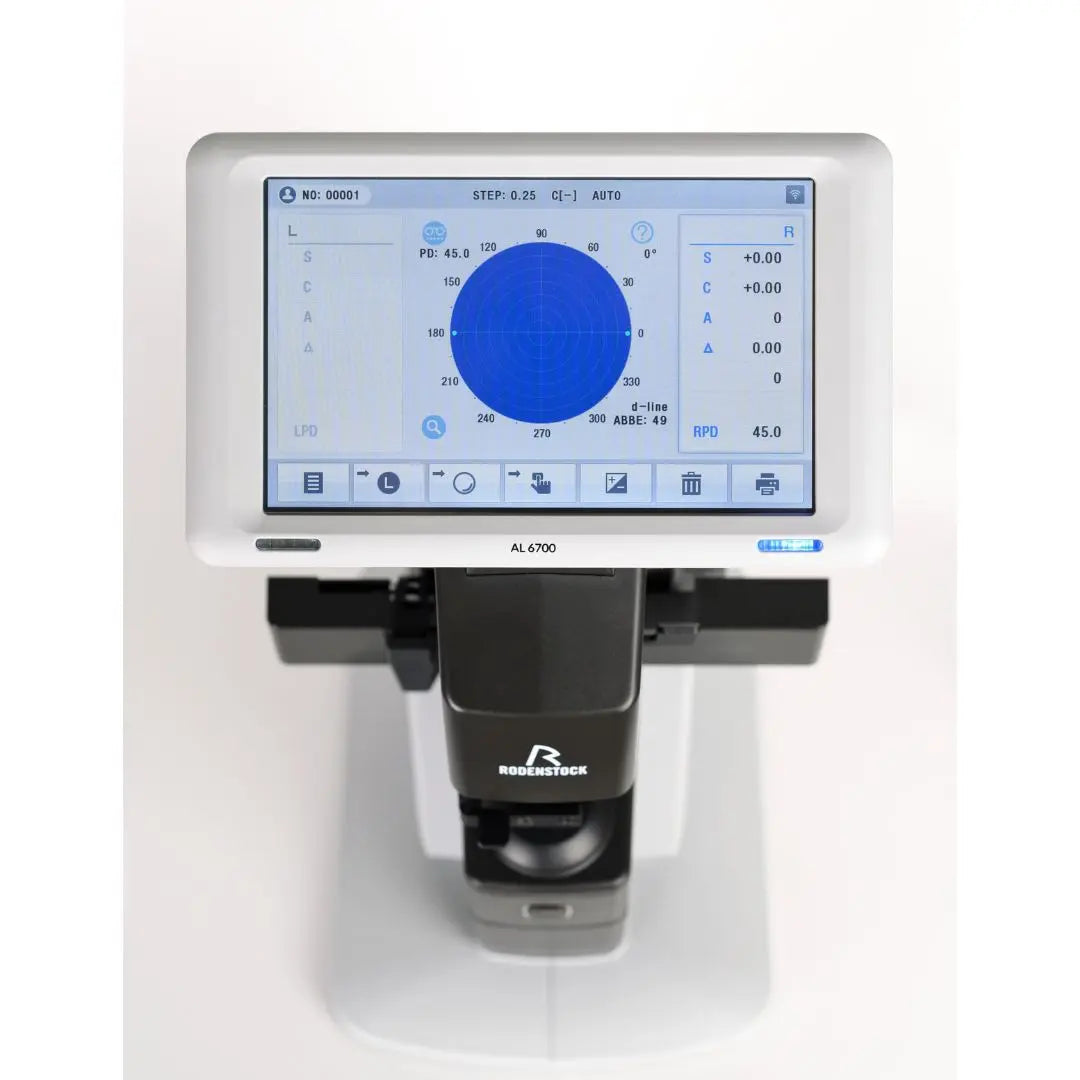

- 7.0″ LCD touch screen, continuously inclinable for comfortable viewing.
- Automatic lens type recognition and auto-hold for repeatable results.
- Digital measuring template guides optical-center marking and height checks.

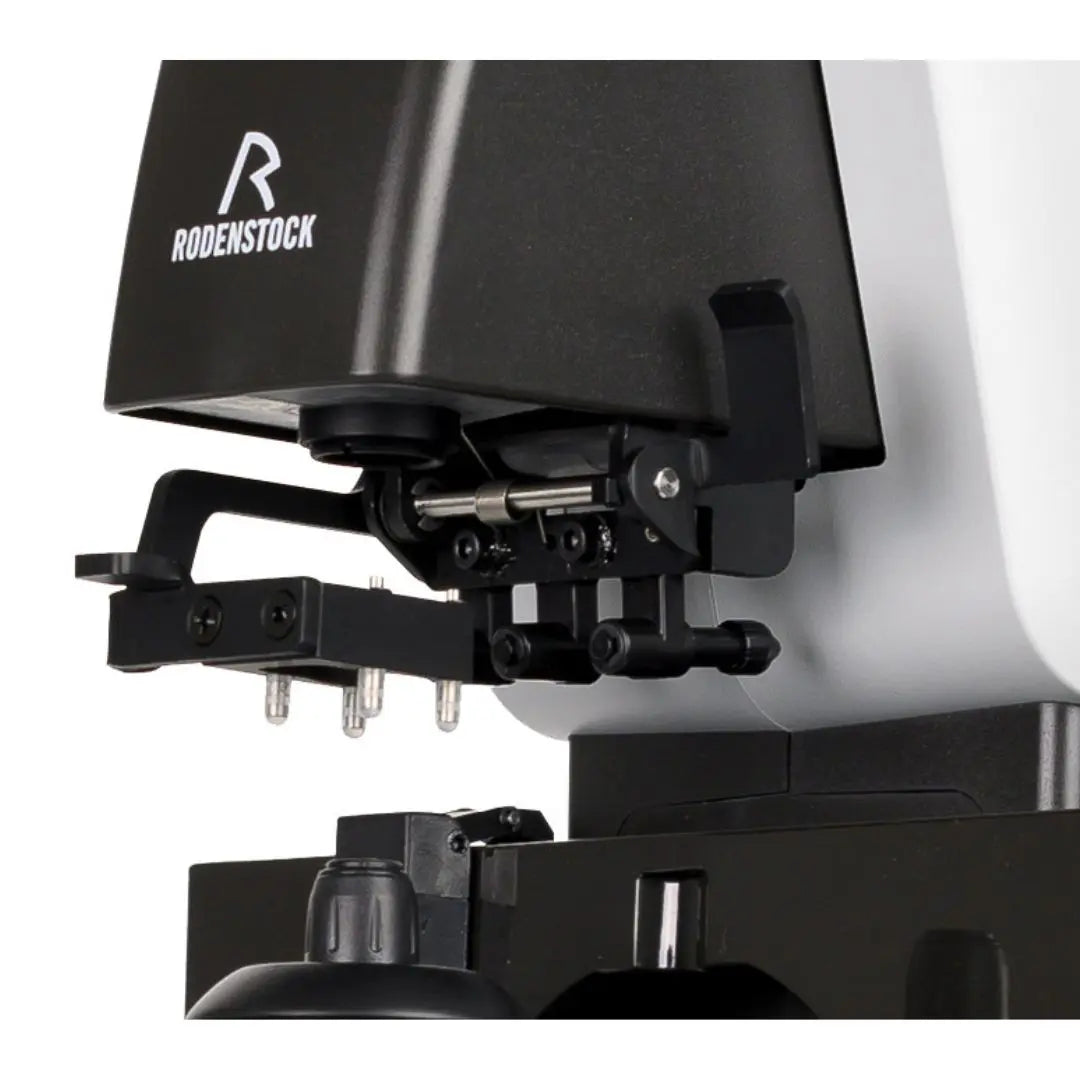

- Integrated lens-marking tool for all types of lens coatings.
Added value for every dispense
- Quick UV and blue-light transmittance results (percentage) with visual bar/graph display.
Connectivity & print
- Wi-Fi and RS-232C output; ready to connect to PHOROMAT 2000.
- Built-in thermal printer with auto-cut function.
Specifications
| MEASUREMENT RANGE | |
| Spherical power (SPH) | −25.00 D to +25.00 D |
| Cylindrical power (CYL) | −10.00 D to +10.00 D |
| Axial angle (AXIS) | 0° to 180° |
| Addition power | 0 to +10.00 D |
| Prism power | 0 to 20 Δ |
| MEASUREMENT INCREMENTS | |
| Dioptre steps | 0.01 / 0.06 / 0.12 / 0.25 D |
| Prism steps | 0.01 / 0.06 / 0.12 / 0.25 Δ |
| MEASUREMENT PARAMETERS | |
| Wavelength (measurement light) | 525 nm; e-line 546.07 nm; d-line 587.56 nm |
| Transmittance of UV light | 400 nm |
| Transmittance of blue light | 420 nm |
| Abbe value | 30 to 60 |
| Lens diameter | 5 to 120 mm |
| Pupillary distance (PD) | 45 to 90 mm |
| HARDWARE & I/O | |
| Display | 7.0″ TFT color touch LCD (tiltable) |
| Printer | Built-in thermal printer with auto-cut |
| Output | RS-232C, Wi-Fi |
| DIMENSIONS & ELECTRICAL REQUIREMENTS | |
| Dimensions (W × D × H) | 198 × 245 × 420 mm |
| Weight | Approx. 5 kg |
| Voltage | AC 100 V to 240 V |
| Frequency | 50/60 Hz |
| Power consumption | 35–55 VA |
