240-970 | CV 800P Chart Panel
240-970 | CV 800P Chart Panel
240-970 | CV 800P Chart Panel
240-970 | CV 800P Chart Panel
240-970 | CV 800P Chart Panel
240-970 | CV 800P Chart Panel

240-970 | CV 800P Chart Panel

Regular price $4,309.00
Sale price $4,309.00 Regular price
Unit price
SKU: 240-970
Download Brochure
Compare Ask a question

Ask a Question

* Required fields

Size guide Share
240-970 | CV 800P Chart Panel

240-970 | CV 800P Chart Panel

Regular price $4,309.00
Sale price $4,309.00 Regular price
Unit price
Product description

Rodenstock Chart Panels – Comprehensive Refraction Testing

High-Quality Polarisation. Precise Visual Testing.

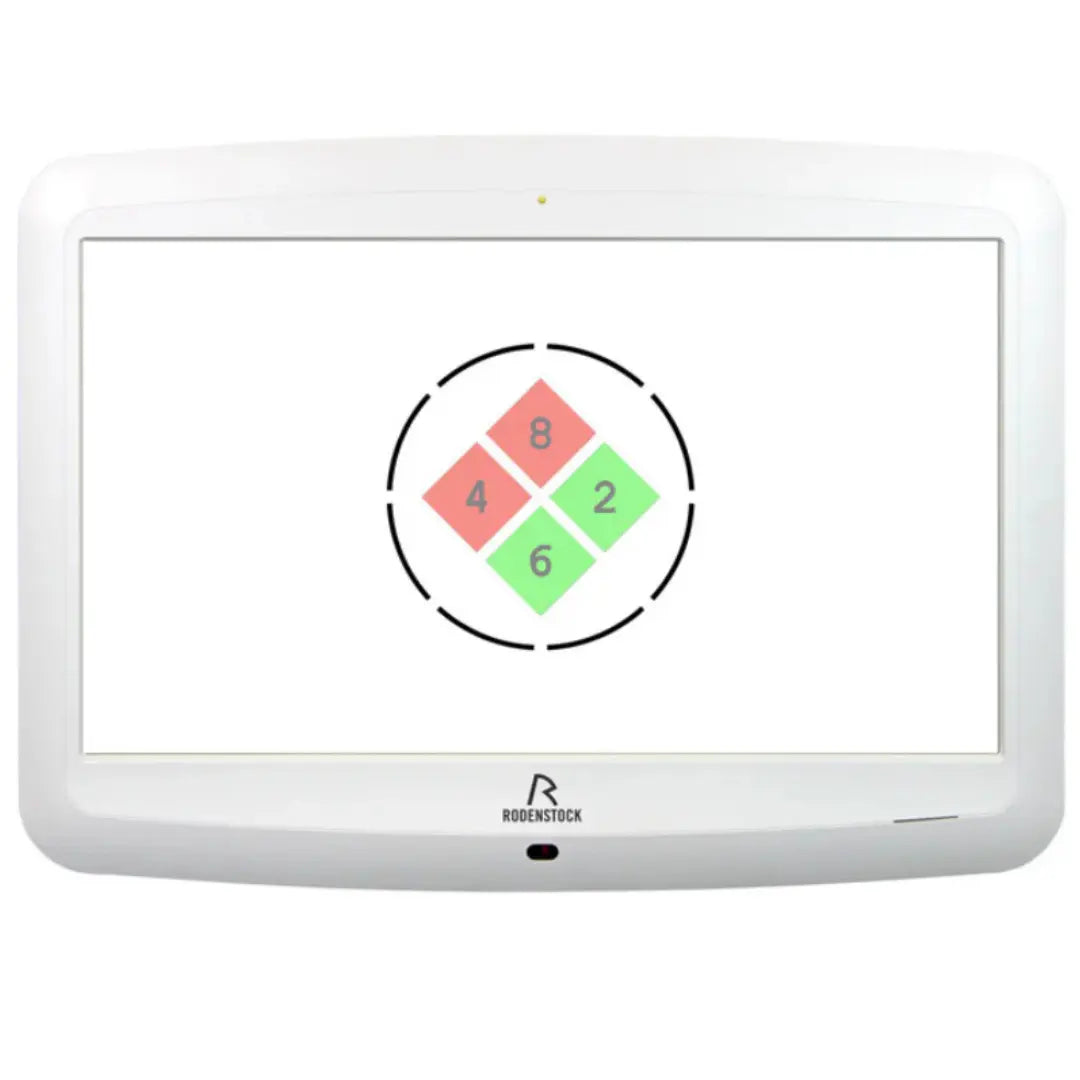

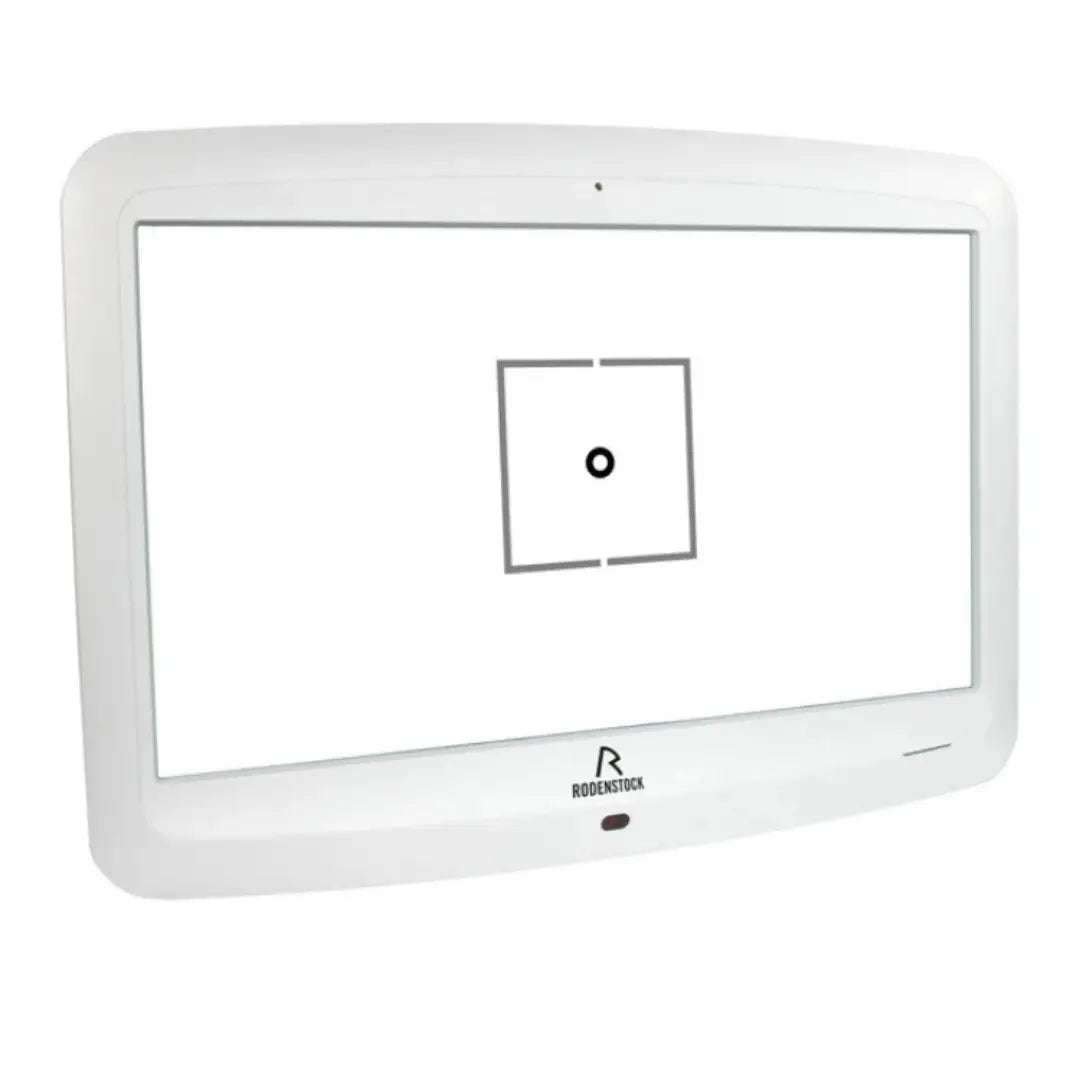

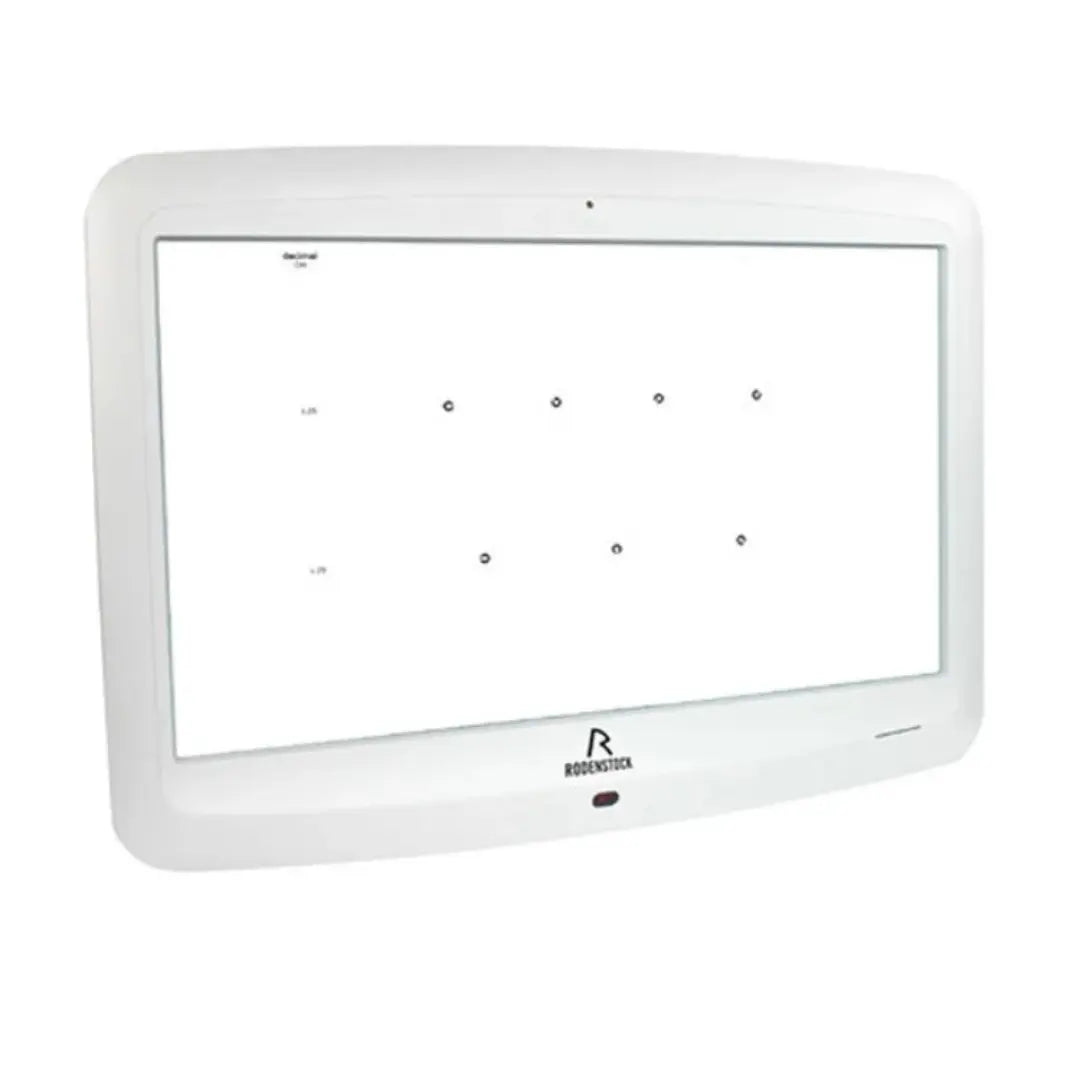

The CV 800P is a premium polarising chart panel designed to provide accurate and comprehensive refraction and binocular vision testing. Equipped with linear polarisation, it ensures precise image separation and reliable results for a wide range of clinical applications.

Key Features

High-Quality Polarising Display

  • Delivers superior image separation for accurate binocular testing.
  • Supports precise evaluation of heterophoria and stereo vision.

Comprehensive Test Selection

  • Includes the MKH (Measuring and Correcting Methodology according to Haase) test sequence.
  • Quick and seamless switching between optotypes, visus units, and visus types.

Connectivity & Compatibility

  • Wireless communication via WiFi or Bluetooth with the Phoromat 2000.
  • Uniform design integration with the Phoromat 2000 system for a modern, cohesive setup.

Benefits for Your Practice

  • Reliable performance for advanced refraction and binocular vision testing.
  • Smooth workflow thanks to wireless connectivity and intuitive operation.
  • Modern, ergonomic design that enhances both patient experience and practice efficiency.

✅ The CV 800P is the ideal solution for clinics and practices that require precise polarising displays and advanced test sequences, ensuring consistent and dependable results every time.


Specifications

SPECIFICATIONS — CV 800P (Polarising Chart Panel)
Working distance 2 m to 7 m
Visus units Decimal, LogMar, metric, feet
Display size 23″ LCD Full HD
Image separation Red-green, Polarising
MKT test sequence
Driver’s license sequence
IR remote control (3 channels)
System integration to automated phoropter
IR connection via CommBox (optional)
Wall-mount adapter (VESA 100)
USB port
OPTOTYPES
Osterberg
EDTRS
Crowding bars
Hearing impaired
Low vision
Optotype contrast adjustment
VA TESTS
Cross-grid
Amsler grid
Astigmatism dots
Astigmatism clock
BINOCULAR TESTS — POLARISING
VA balance
Horizontal/vertical coincidence
Polarising red-green
3D images
SPECIAL TESTS
Contrast sensitivity
Colour vision test
Colour sensitivity
Animations
MASKS
Single optotype, horizontal/vertical line
Red-green
Polarising
DIMENSIONS
Dimensions (W×D×H, incl. frame) 583 × 55 × 423 mm
Weight 5.7 kg
Input AC 100 V / 240 V
Frequency 50/60 Hz
Power consumption 35 – 45 VA
