Product description

Precise refraction. Modern design. Complete functionality.

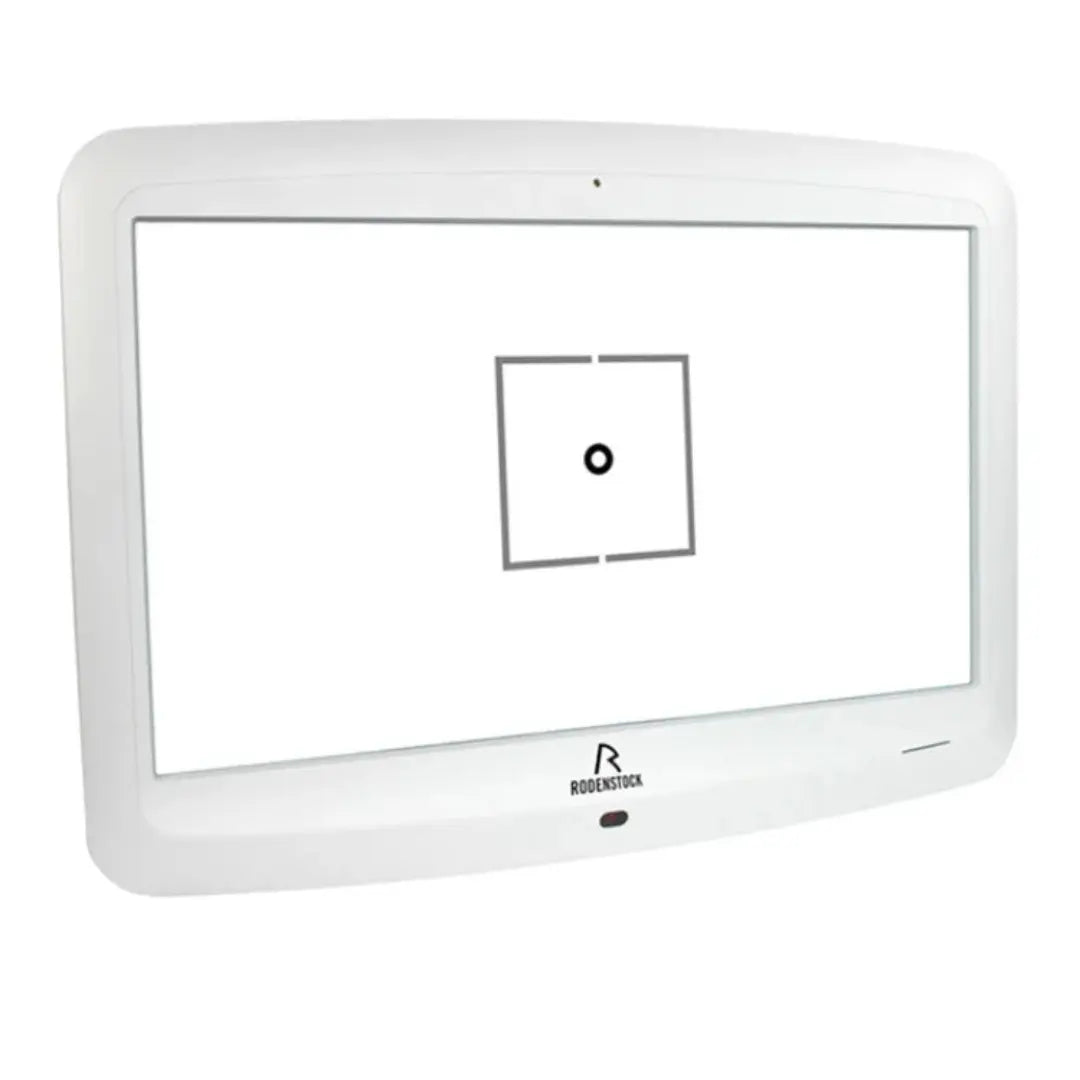

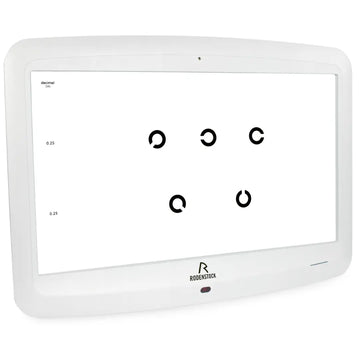

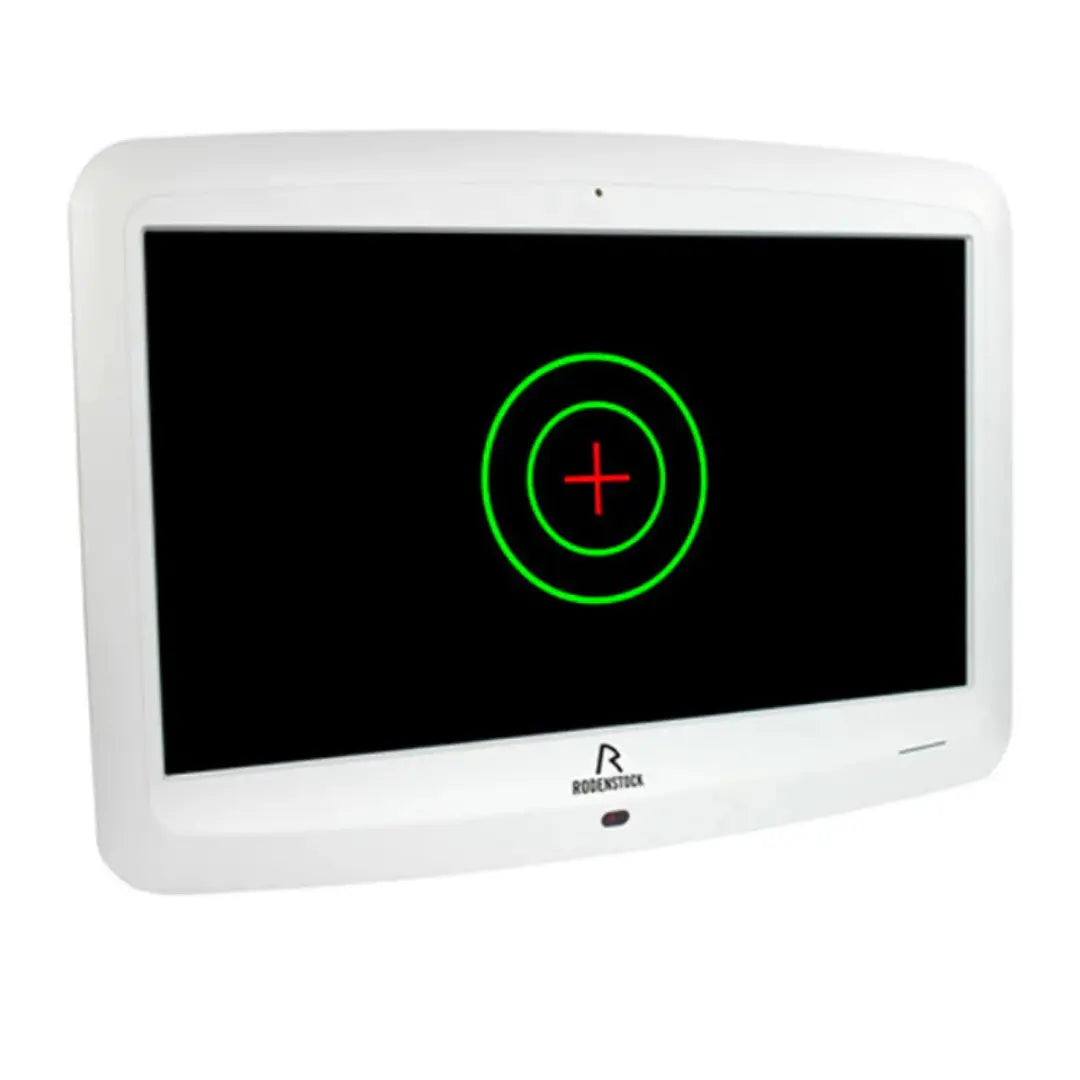

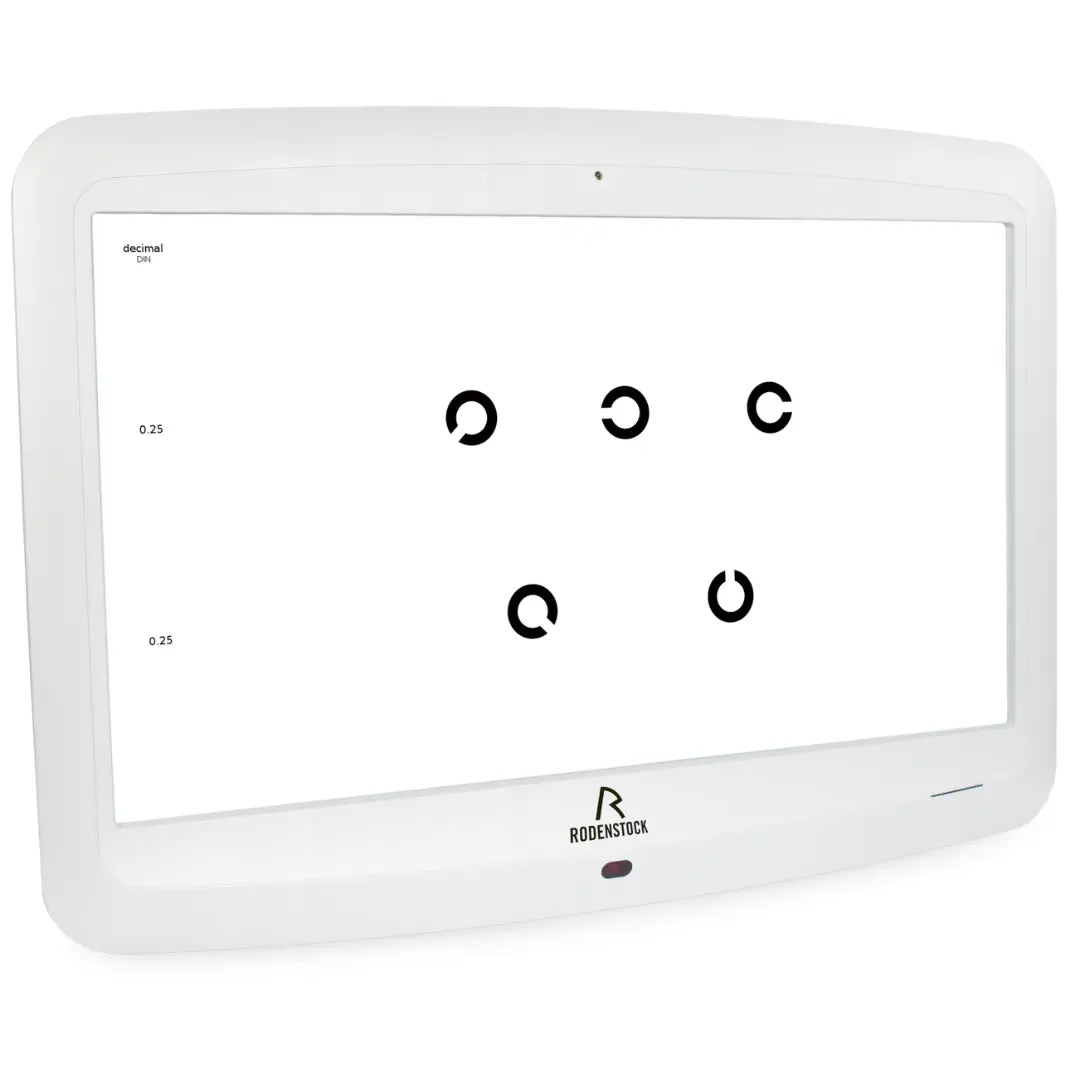

The Rodenstock CV 600 chart panel delivers precise and reliable vision testing with a modern, user-friendly design. Equipped with a wide selection of charts and tests, it provides optometrists and ophthalmologists with all the essential tools for accurate refraction and advanced visual assessments.

Key Benefits

  • Precise refraction – Accurate vision charts tailored to every need.
  • Increased competency – Comprehensive range of special tests for enhanced diagnostic confidence.
  • Cross-age charts – Includes fixation targets specifically designed for children.
  • Quality and style – Proven Rodenstock quality combined with a sleek, modern design.
  • Personalisation – User-defined test sequences to adapt examinations to patient needs.
  • Connectivity – Seamless wireless integration with Phoromat 2000 for a smooth workflow.

Core Features

  • Quick change of optotypes, visual acuity units, and test types.

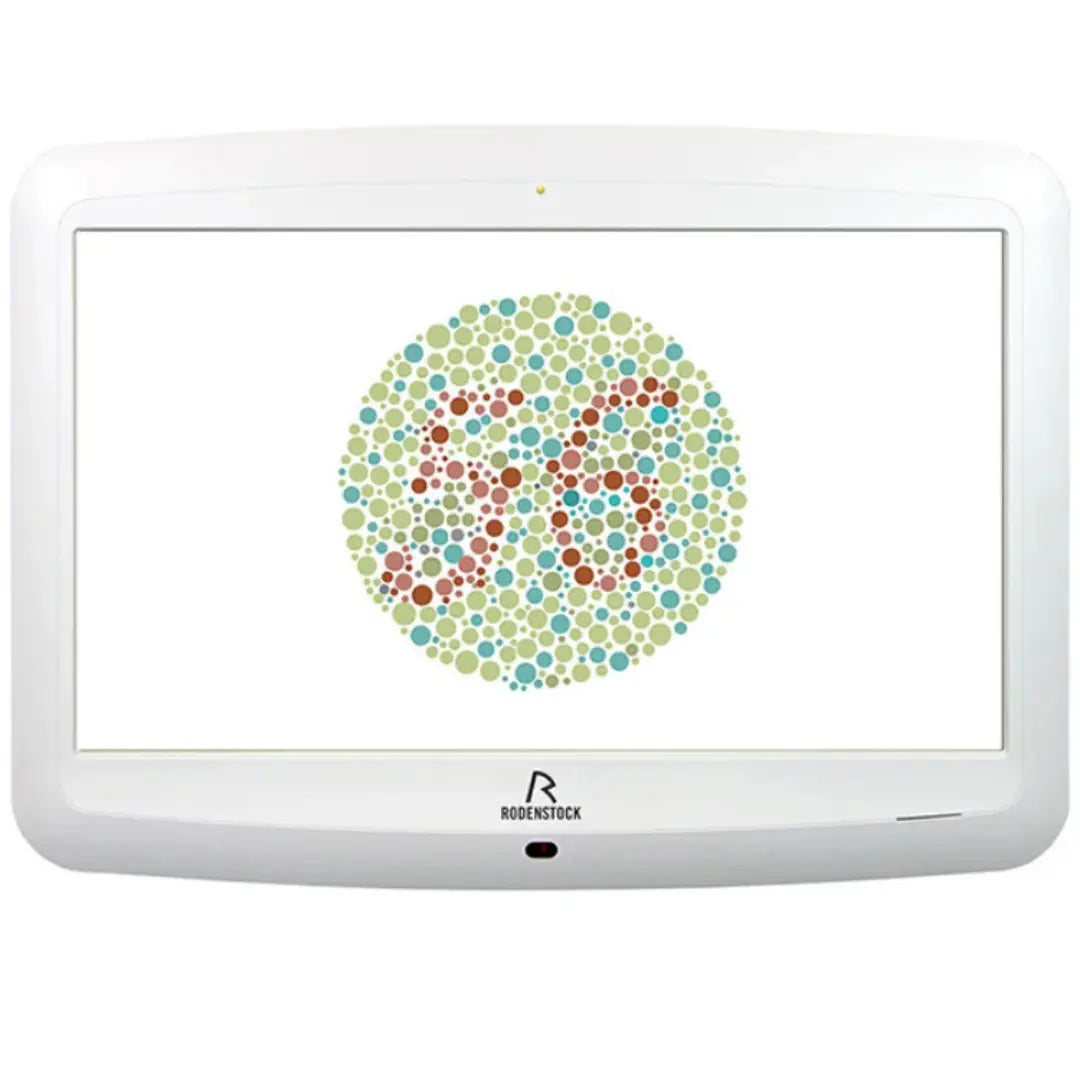

  • Extensive selection of charts: optotypes, astigmatism tests, red-green, low vision, EDTRS, Amsler grid, crowding bars, and color tests.
  • WiFi or Bluetooth communication with the Phoromat 2000.
  • Uniform design for consistent appearance across Rodenstock systems.

The CV 600 is the ideal solution for practices that require accuracy, versatility, and style – ensuring reliable refraction and an improved patient experience.


Specifications

SPECIFICATIONS — CV 600 (Chart Panel)
Working distance 2 m to 7 m
Visus units Decimal, LogMar, metric, feet
Display size 23″ LCD Full HD
Image separation Red-green
MKT test sequence
IR remote control (3 channels)
System integration to automated phoropter
IR connection via CommBox (optional)
Wall-mount adapter (VESA 100)
USB port
OPTOTYPES
Osterberg
EDTRS
Crowding bars
Hearing impaired
Low vision
Optotype contrast adjustment
VA TESTS
Cross-grid
Amsler grid
Astigmatism dots
Astigmatism clock
BINOCULAR TESTS — RED-GREEN
Schober
Worth
Fixation disparity
Bichrome balance
SPECIAL TESTS
Contrast sensitivity
Colour vision test
MASKS
Single optotype, horizontal/vertical line
Red-green
DIMENSIONS
Dimensions (W×D×H, incl. frame) 583 × 55 × 423 mm
Weight 5.7 kg
Input AC 100 V / 240 V
Frequency 50/60 Hz
Power consumption 35 – 45 VA
