240-955 | PERISTAT 2 Automated Perimeter
240-955 | PERISTAT 2 Automated Perimeter

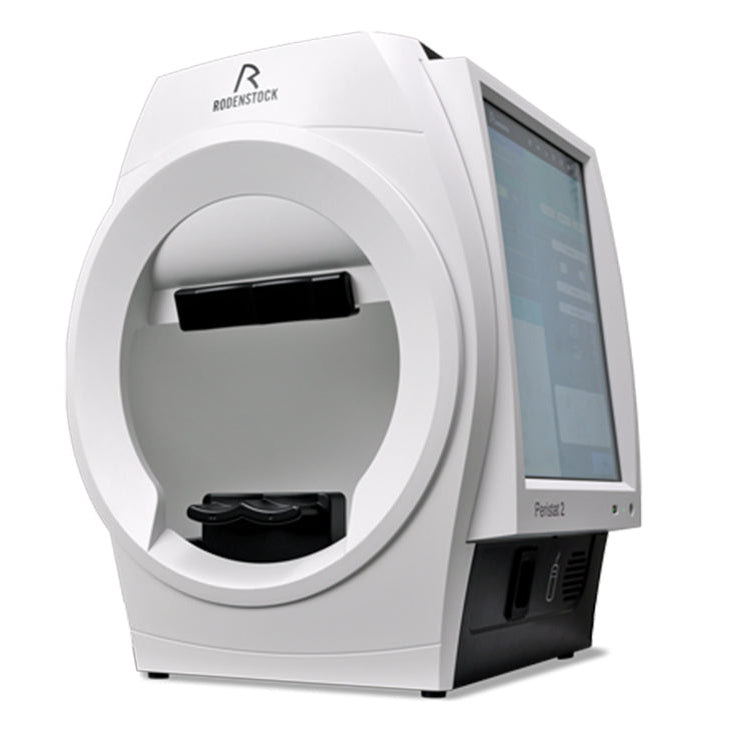

Designed for modern clinical demands, the Perimat 2 delivers accuracy, efficiency, and patient comfort in visual field testing. With intelligent automation, advanced eye-tracking, and a user-friendly HD touch screen, it’s the perfect solution for comprehensive perimetry.
Outstanding Features
Test Strategies
Innovative TIA strategies significantly reduce examination time while enhancing patient comfort, ensuring efficient yet reliable results.
Advanced Eye-Tracking
Each stimulus presentation is verified by AI-driven eye capture and confirmed in real time through a progress bar, ensuring maximum precision.
Patient Audio Guide
During preparation, the Perimat 2 guides patients and operators with clear text or audio instructions, making the process simple and user-friendly.
17" HD Capacitive Touch Screen
Large, high-definition screen in portrait orientation for easy control and clear visualization of test reports. Dark mode ensures comfort during dim light conditions.
Near Vision Test
Trial lens power is automatically recommended based on patient age and prescription. Near vision is assessed through projection of a Snellen E onto the bowl.
Variety of Visual Field Tests
Offers static, kinetic, threshold, suprathreshold, and combined tests, covering almost any clinical scenario for visual field assessment.
✅ The Rodenstock Perimat 2 combines advanced technology with simplified operation — delivering accurate, fast, and patient-friendly visual field testing.
Specifications
| TEST SPECIFICATIONS | |
| Maximum temporal range | 90° |
| Stimulus duration | 200 ms/500 ms or 0.1 – 9.9 s |
| Visual field testing distance | 30 cm |
| Background illumination | 31.5 ASB White |
| STIMULUS | |
| Stimulus size | Goldmann I, II, III, IV, V |
| Stimulus colour | White |
| Stimulus colour presentations | White-on-white |
| TEST STRATEGIES | |
| Threshold | TIA-Standard, TIA-Fast, TIA-Superfast, Full Threshold, Fast Threshold, Foveal Threshold |
| Suprathreshold | Two Zone, Three Zone, Quantify Defects |
| TEST FIELDS | |
| Threshold | Central 24-2, Central 24-2C, Central 10-2, Central 30-2, Peripheral 60-4, Macula, Nasal Step, Custom Static |
| Suprathreshold | Central 40 Point, Central 64 Point, Central 76 Point, Central 80 Point, Armaly Central, Nasal Step, Peripheral 60 Point, Full Field 81 Point, Full Field 120 Point Fuehrerscheingutachten, Full Field 135 Point, Full Field 246 Point, Armaly Full Field, Superior 36 Point, Superior 64 Point, Esterman Monocular, Esterman Binocular, Gandolfo, Blindengeldgutachten, Custom Static |
| Suprathreshold test modes | Age corrected, Threshold Related, Single Intensity |
| Kinetic | – |
| AUXILIARY FUNCTIONS | |
| Fixation control | Heijl-Krakau blind-spot monitor, Video-camera eye preview, Digital Eye Tracking (DETect), Head Tracking, Vertex monitoring |
| Software features | Foveal threshold testing, Automatic pupil measurement, Single Field Analysis (SF A), Glaucoma Hemifield Test (GHT), Field of View Index (FVI), Serial field overview, DICOM Export, DICOM OPV (Ophthalmic Visual Field), DICOM Worklist Modality, EyeSnap function, User defined results storage location, Progression Analysis |
| DEVICE FEATURES | |
| Display | Touch-screen LCD 17" diagonal |
| Keyboard/mouse support | Yes |
| Network | LAN and wireless |
| Chinrest | Automated – up, down, left, right movement |
| Speakers and microphone | Built-in |
| DIMENSIONS | |
| Dimensions WDH | 443 x 457 x 576 mm |
| Weight | 20.6 kg |
